    2017 Latest Design Nylon Shoulder Tapes Starching And Finishing Machine - High Temperature Screen Printing Machine (3+1) (TS-150) – Kin Wah

    2017 Latest Design Nylon Shoulder Tapes Starching And Finishing Machine - High Temperature Screen Printing Machine (3+1) (TS-150) – Kin Wah Featured Image
    • 2017 Latest Design Nylon Shoulder Tapes Starching And Finishing Machine - High Temperature Screen Printing Machine (3+1) (TS-150) – Kin Wah

    Short Description:

    Basic Info Model NO.: TS-150 Main Part Material: Stainless Steel Driven Type: Electric Phase: 3 Phases Frequency: 50/60Hz Max Speed: 6m/Min/Line Registr...


    Download as PDF

    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    Our enterprise since its inception, usually regards product top quality as business life, repeatedly enhance manufacturing technology, make improvements to product excellent and continuously strengthen enterprise total high quality administration, in strict accordance with all the national standard ISO 9001:2000 for 2 Cylinders Webbings Starching And Finishing Machine , Spandex Elastic Tapes Pre-Shrinking Machine , High Temperature Automatic Screen Printing Machine , Besides, our enterprise sticks to high-quality and fair value, and we also offer you fantastic OEM solutions to several famous brands.
    2017 Latest Design Nylon Shoulder Tapes Starching And Finishing Machine - High Temperature Screen Printing Machine (3+1) (TS-150) – Kin Wah Detail:

    Basic Info

    Model NO.: TS-150
    Main Part Material: Stainless Steel
    Driven Type: Electric
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Speed: 6m/Min/Line
    Registration Precision: 0.05mm
    Max. Printing Area: 150*300mm
    Printing Linest: 3lines/ Time
    Application: Roll Materials,Narrow Fabric,Cotton Tapes,Elastic
    Weight: 600kg
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

    High Temperature Screen Printing Machine (3+1) (TS-150)

    Model:TS-150
    Advantage:
    1. Using Stainless steel convey belt instead of traditional convey to make register color very precisely.
    2. 3+1 (front side 3 -colours, back side 1 colour printing), this model we can customise as the requirement of our client.
    3. Small in size, and not occupy your much room, dimention only 2.95M * 0.65M * 1.65M. Easy to install at any place.
    4. Full automatic, it is controlled by a servo-system. Two infrared ovens.

    5. High efficiency, save your time and your labour cost. Max Speed can up to 28 Times/Min.
    6. Good thermostability with stainless steel belt convey, it can print any kinds of high temperature ink, such as plastisol, silicon, etc.
    7. Multi tapes printed at one time.
    8. Rational Price depend on how many colours do you want to print.
    9. Long service life, if maintainance proper, its service life can up to more than 8 years.


    Total Colors Model Single/Both Sides Printing Lines Max Printing Area Dimension

    2 C 1+1 Both 3Lines/3.5cm 150X300mm 2200X850X1600mm
    2+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    3 C 2+1 Both 3Lines/3.5cm 150X300mm 2700X850X1600mm
    3+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    4 C 3+1 Both 3Lines/3.5cm 150X300mm 3850X850X1600mm
    4+0 Single 3Lines/3.5cm 150X300mm 4760X850X1600mm


    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.



    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

    High Temperature Screen Printing Machine (3+1) (TS-150)

    High Temperature Screen Printing Machine (3+1) (TS-150)
    High Temperature Screen Printing Machine (3+1) (TS-150)
    High Temperature Screen Printing Machine (3+1) (TS-150)
    High Temperature Screen Printing Machine (3+1) (TS-150)
    High Temperature Screen Printing Machine (3+1) (TS-150)

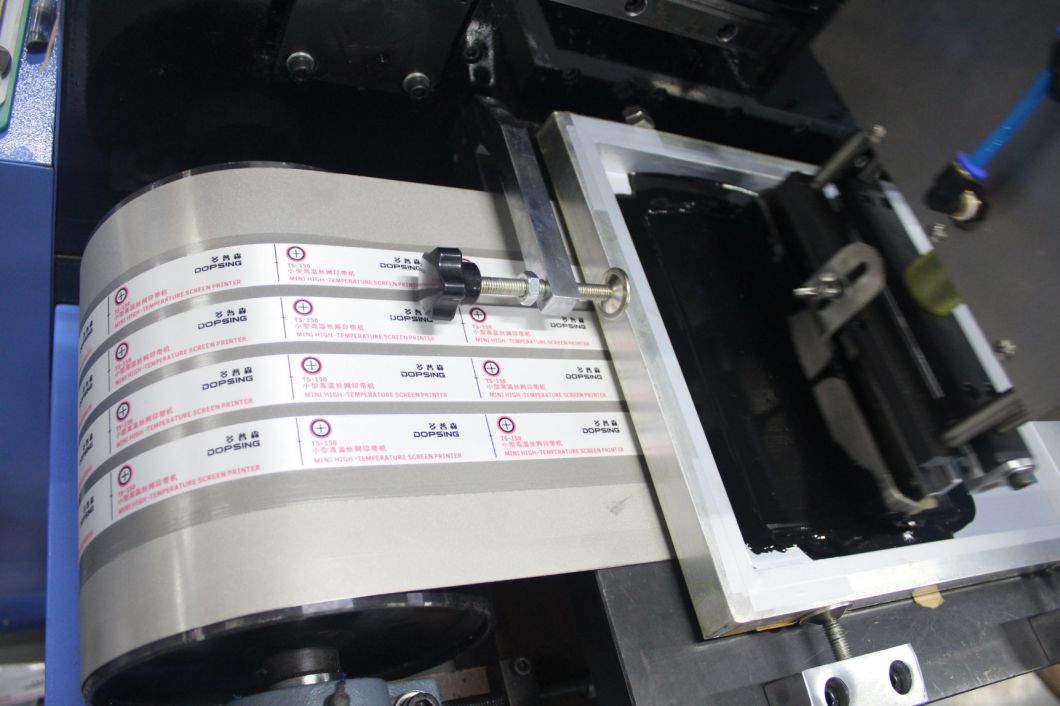

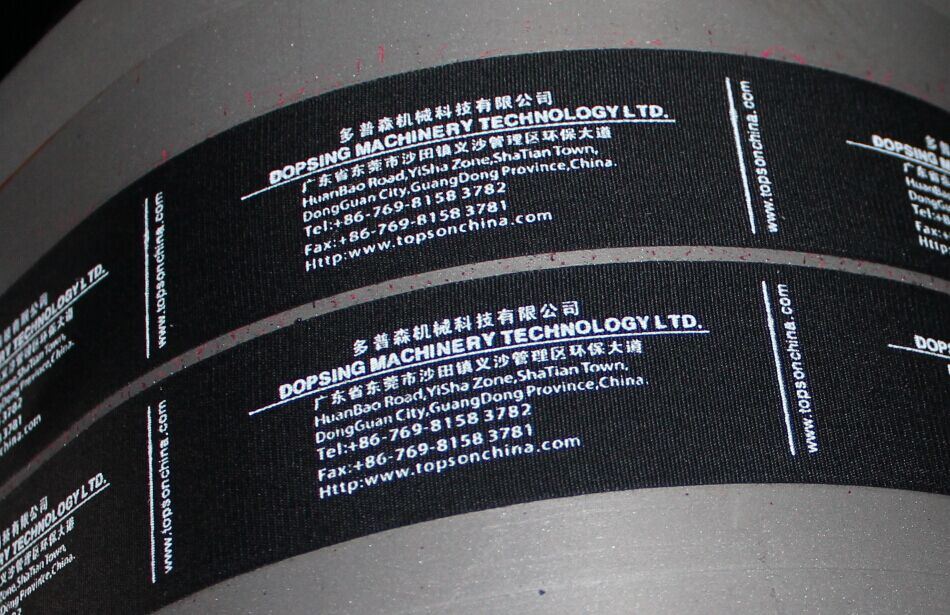

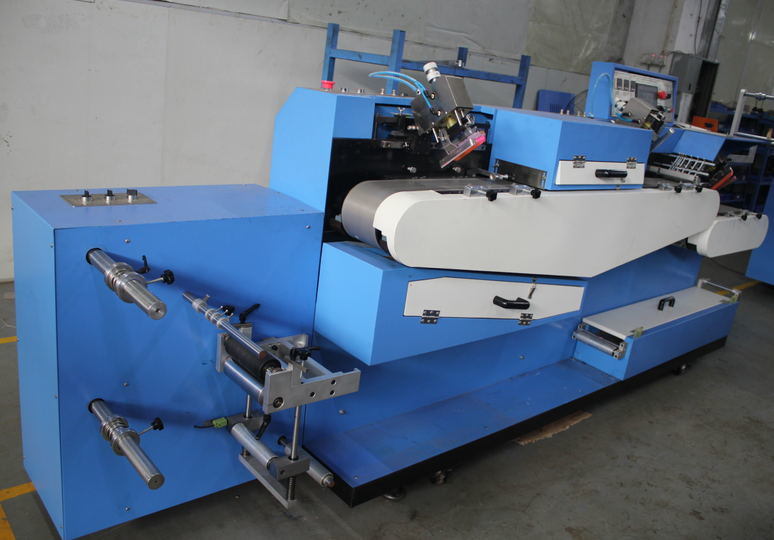

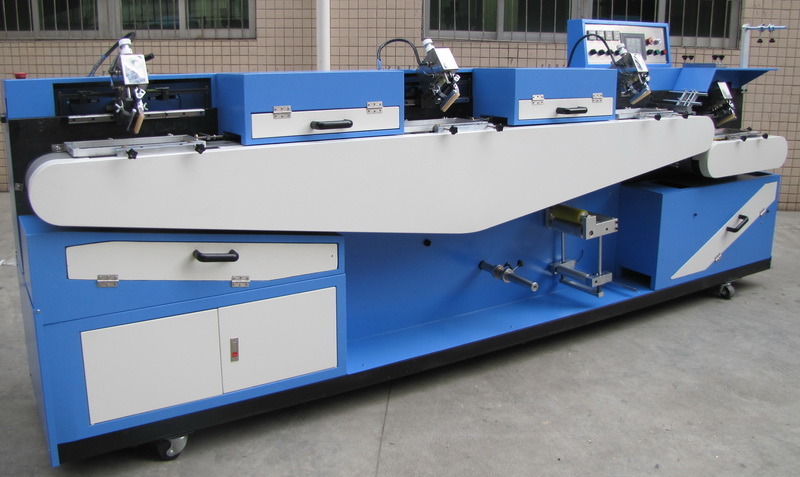

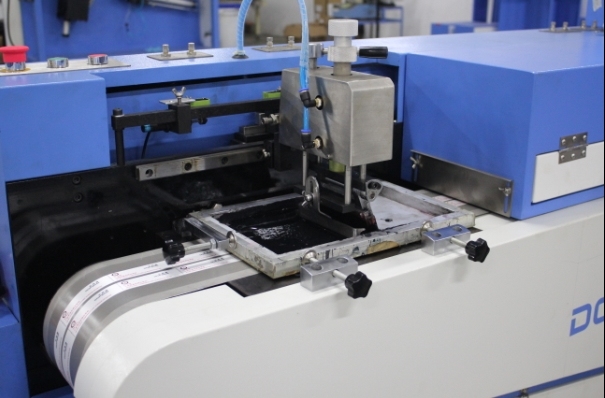

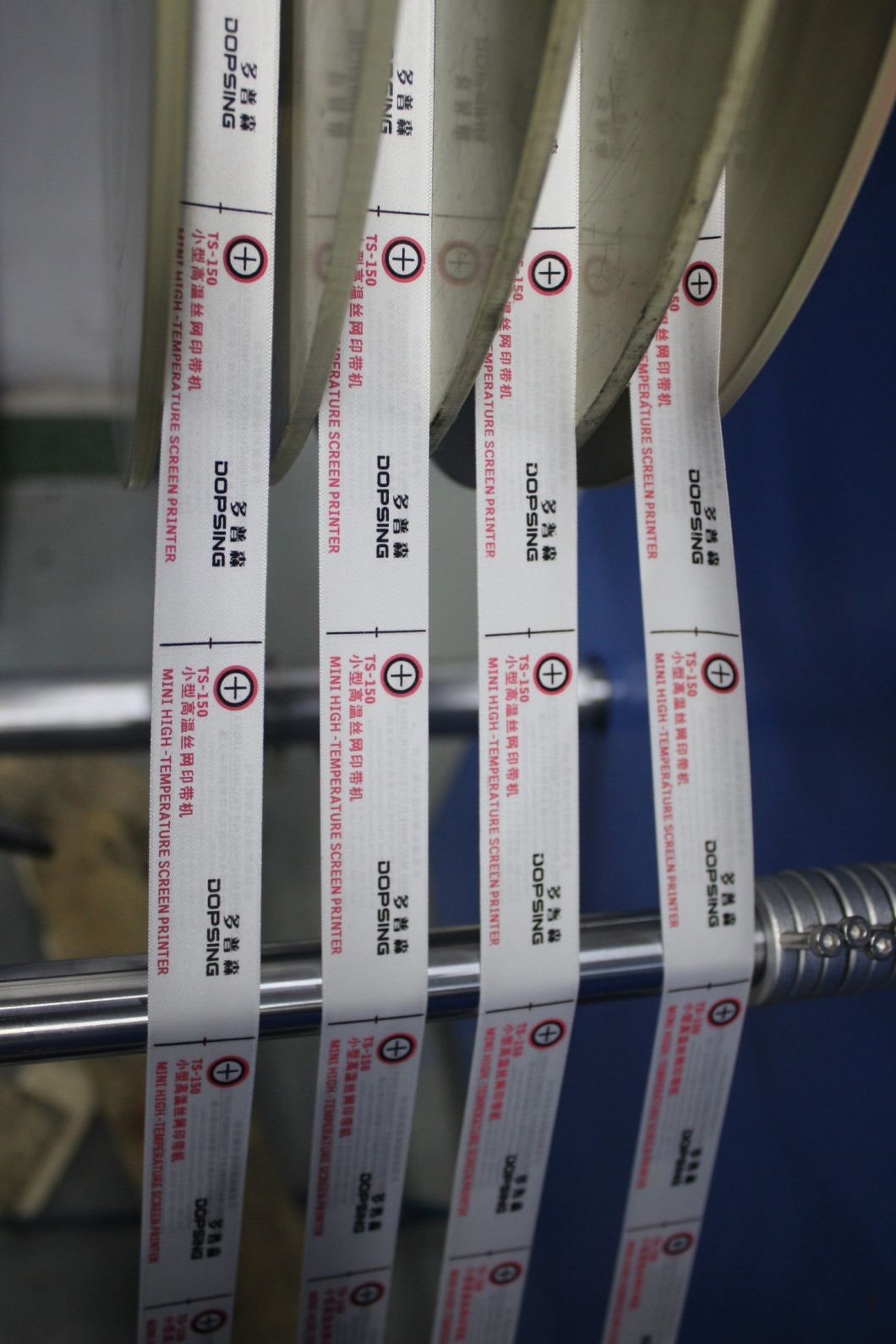

    Product detail pictures:

    2017 Latest Design Nylon Shoulder Tapes Starching And Finishing Machine - High Temperature Screen Printing Machine (3+1) (TS-150) – Kin Wah detail pictures
