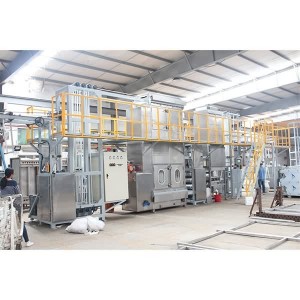

high temperature satin ribbons label ribbons continuous dyeing machines
Size：25000MM * 1000MM *2400MM
this is a high speed satin ribbons /label ribbons continuous dyeing & finishing machine with high efficiency and energy saving.OUR patents
1)Application: The dyeing machine is especially used for dyeing polyester satin ribbons ,label ribbons made from nylon,polyester with thickness below 1.2mm.
|Heat System||electrical |LPG or natural gas |steam|
|Thermofixation Chamber Tape Content(m)||45|60||60|80|
|Control System||Manual | computer control( PLC & Touch screen)|
Processes:Feed in→Pre-washing-Pre-dryer→dyeing padder→infrared predrying→thermofixation→washing tank→Chemical padder→Drying & finishing unit→Cool system→take off
