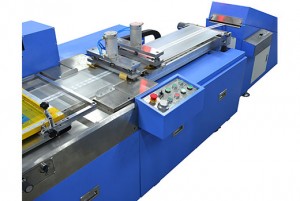

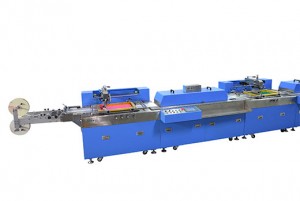

    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine

    Short Description:

    Basic Info Model NO.: SPE-3001S-5C System supported: PLC Machine Type: Screen Printing Machine Main Parts Material: Stainless Steel Driven Type: Electric Power: 16-40kw Frequency: 50/60Hz Printing Linest: 4-8 Lines/ Time Max Speed: 10m/Min /Line Printing Area: 300mm*600mm Printing Side: Single or Double Registration Precision: 0.05mm Trademark: Dopsing Transport Package: Wooden Box Specification: CE certification Origin: China HS Code: 8443192290 Product Description 5 Colors Roll ...


  • Product Name: Disposable Face Mask
  • Product Feature: High Protect, Safe, Fit & Comfort
  • Product Implementation Standards: Q/Jlm 01-202
  • Carton Dimension: 455*385*435mm
  • Paper Box Size: 185*110*85mm
  • Mask Package: 40PCS/Paper Box
  • Box Packag: 50box/Carton, 2000PCS/Carton
  • Full Carton Weight: 8.89kg
  • Product Detail

    Product Tags

    Basic Info

    Model NO.: SPE-3001S-5C
    System supported: PLC
    Main Parts Material: Stainless Steel
    Driven Type: Electric
    Power: 16-40kw
    Frequency: 50/60Hz
    Printing Linest: 4-8 Lines/ Time
    Max Speed: 10m/Min /Line
    Printing Area: 300mm*600mm
    Printing Side: Single or Double
    Registration Precision: 0.05mm
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China
    HS Code: 8443192290

    Product Description

    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine

    Product Description

    DOPSING SPE-3001S-5C,

    Servo system +Sensor+Screw Rod+Tension Controller

    Muti-color print 1C-8C

    single side or double side printing

    Come into Global market since the year of 2003.

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

    Total Colors Max Printing Area Registration Precision Printing Speed Max.Power Dimension
    2 C 300X600mm 0.05mm 10m/min 16KW/380V/70A 9500X1000X1300mm
    3 C 300X600mm 0.05mm 10m/min 21KW/380V/80A 12500X1000X1300mm
    4 C 300X600mm 0.05mm 10m/min 25KW/380V/100A 15500X1000X1300mm
    5 C 300X600mm 0.05mm 10m/min 32KW/380V/120A 18500X1000X1300mm
    6 C 300X600mm 0.05mm 10m/min 40KW/380V/150A 21500X1000X1300mm

    Model: SPE-3001S-5C

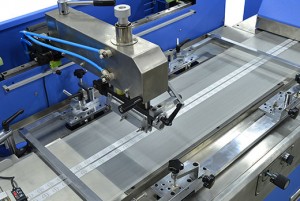

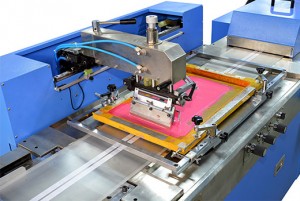

    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.

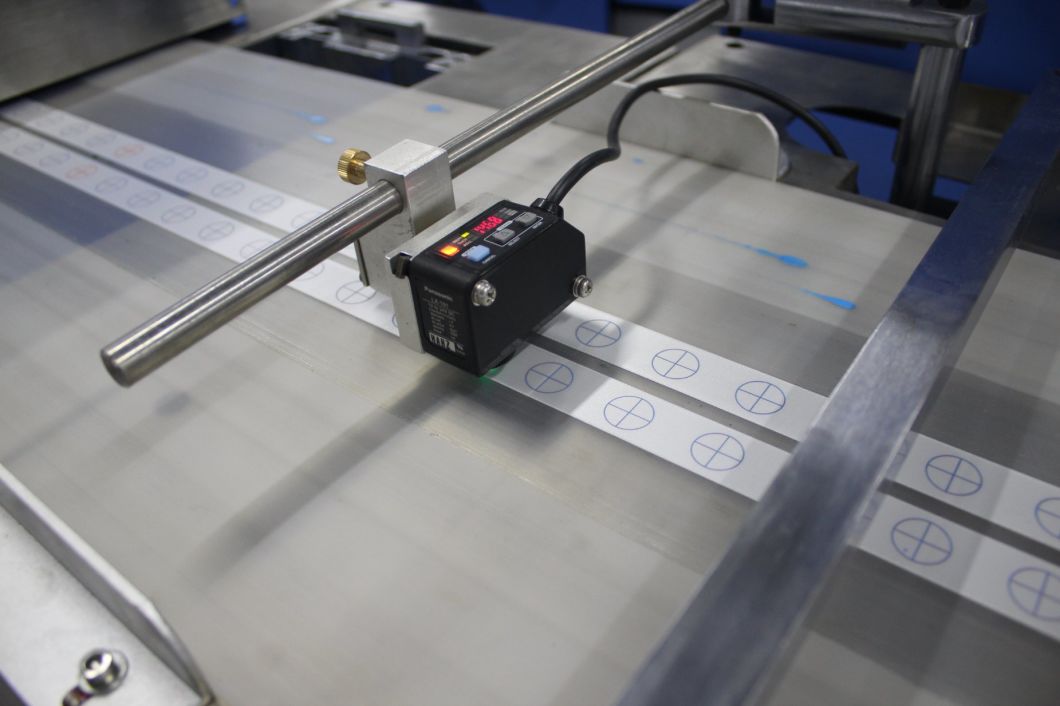

    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
    2)Over printing for more colors, it can print 5C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.

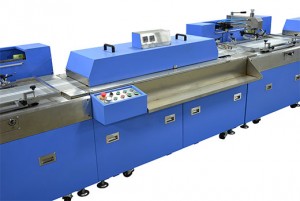

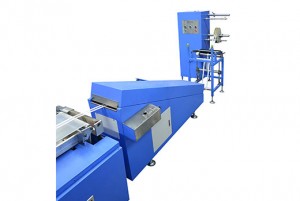

    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.
    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.

    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
    Your staffs until they master the machine. All of this is free.

    Our Services

    Dopsing automatic screen printing machines are widely used,recogonized
    with long term cooperated with many partners.the world biggest and
    famous narrow fabric manufacturers are using our screen printing
    machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
    Elastic tapes manufacturer STRETCHLINE and so on.

    Company Information

    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Packaging & Shipping

    Covered by plastic membrane within full container or less container

    (woodencase)

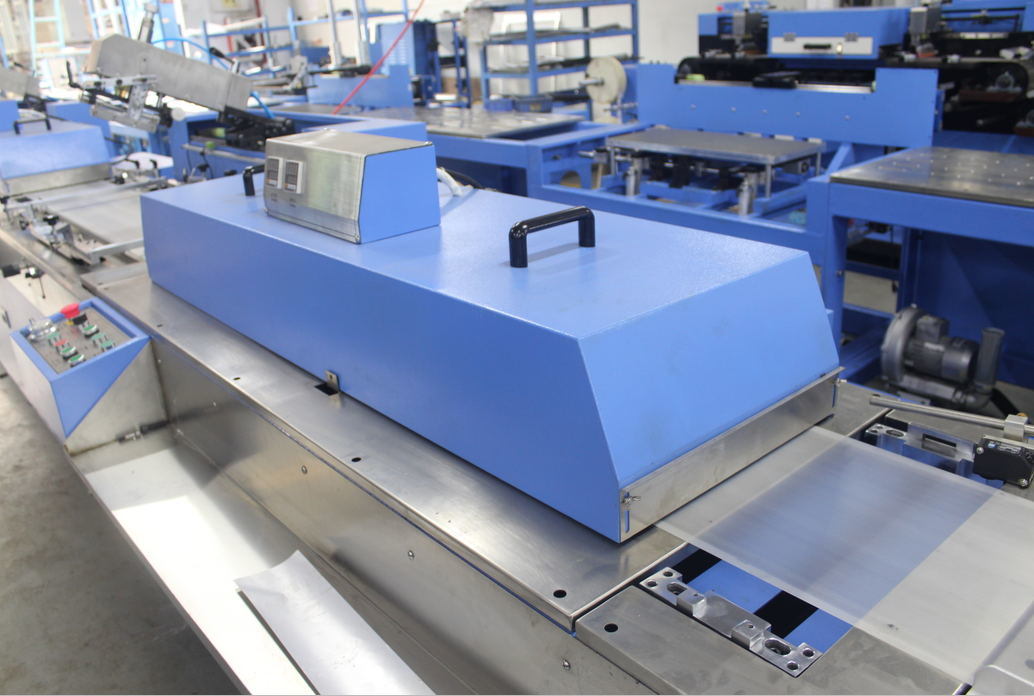

    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine

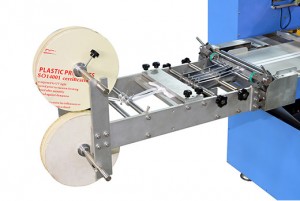

    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine
    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine
    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine
    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine
    5 Colors Roll to Roll Satin Ribbons Automatic Screen Printing Machine
