    Garment labels automatic screen printing machine with PLC control

    Short Description:

    Best garment labels automatic screen printing machine with PLC control MODEL:SPE-3000S-4C 1C~6C is available Application:the machine can print all kinds of roll materials,such as label ,stain ribbon,lanyards ribbons,pet film, plastic film,shoes lace, cotton tape,elastic tape,webbing sling,small slice and any other roll materials. Colour: 2c 3c  4c  5c  6c Max.printing area(mm): 300*600 300*600 300*600 300*600 300*600 Registration precision(mm): 0.05 0.05 0.05 0.05 0.05 Max. Printi...


  • Product Name: Disposable Face Mask
  • Product Feature: High Protect, Safe, Fit & Comfort
  • Product Implementation Standards: Q/Jlm 01-202
  • Carton Dimension: 455*385*435mm
  • Paper Box Size: 185*110*85mm
  • Mask Package: 40PCS/Paper Box
  • Box Packag: 50box/Carton, 2000PCS/Carton
  • Full Carton Weight: 8.89kg
  • Product Detail

    Product Tags

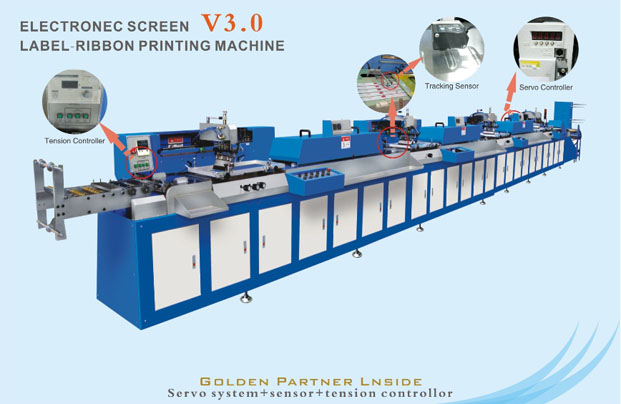

    Best garment labels automatic screen printing machine with PLC control

    MODEL:SPE-3000S-4C

    1C~6C is available

    Application:the machine can print all kinds of roll materials,such as label ,stain ribbon,lanyards ribbons,pet film, plastic film,shoes lace, cotton tape,elastic tape,webbing sling,small slice and any other roll materials.

    Colour: 2c 3c  4c  5c  6c
    Max.printing area(mm): 300*600 300*600 300*600 300*600 300*600
    Registration precision(mm): 0.05 0.05 0.05 0.05 0.05
    Max. Printing speed(m/min): 10 10 10 10 10
    Power: 380v/16kw/70A 380v/21kw/80A 380v/25kw/100A 380v/32kw/120A 380v/40kw/150A
    Sensor qty: 1pcs 2pcs 3pcs 4pcs 5pcs
    Demansion:(L*W*G): 9.5*1.0*1.3m 12.5*1.0*1.3m 15.5*1.0*1.3m 18.5*1.0*1.3m 21.5*1.0*1.3m



     Main features:
    1.precise printing:
    1)powered by full automatic Servo Moto with a Ball-Screw Assemblies instead of air pressure.
    2)ajusting printing position by auto sensors system instead of handcraft.
    3)tension controller and the brake make the converying exactly.
    2.functions:
    1)multi-color printing,colours:this model has 1c,2c,3c,4c.
    2)over printing for more colors,it can print 5c-8c too.
    3)both sides printing several trips at one time.
    4)slice printing.
    5)micro adjusting meter for frame adjusting automatically.
    6)anti-wind device makes the ribbon pulled into dryer after printing.
    7)infrared dryer and heater make the any kinds ink dry enough.
    8)free set up the printing times and the carry times on electronic touch screen.
    9)several sensors tracing the situation of the feeding materials.
    10)dryer lift while the machine stopping.
    11)most core parts import from Europe & Japan.
    12)with CE certification.
