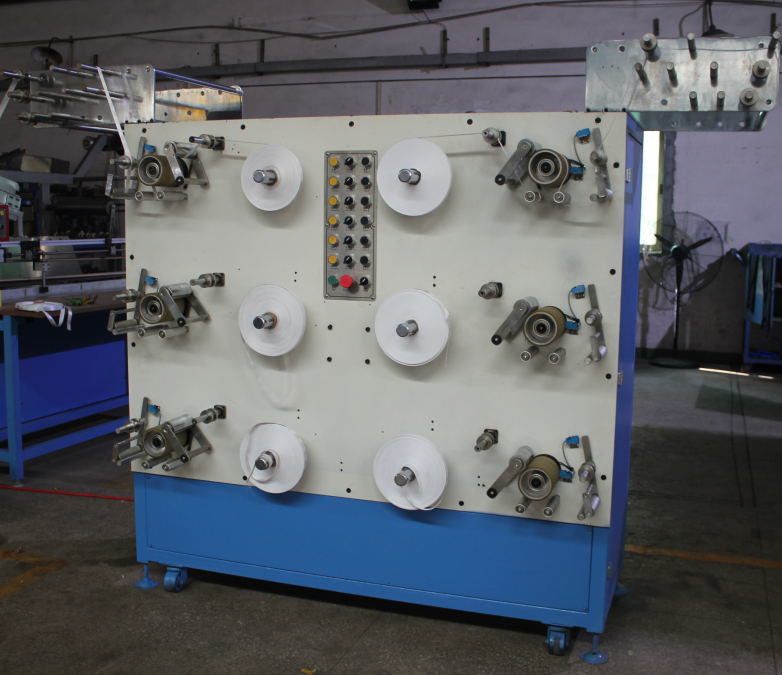

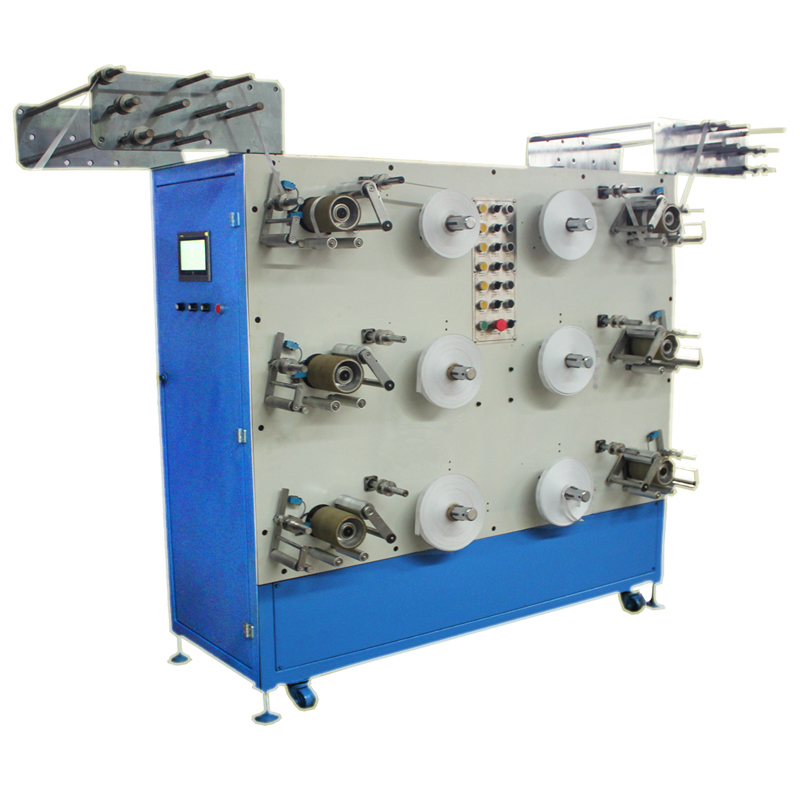

6 Axes Label Ribbons Automatic Wrapping Machine
Auto PLC Control system
Dual Sides feed in system
Precisely winding accordingly
Widely used for winding any Narrow Fabric
Webbing’s winding speed/Frequency will be different according to its own diameter increase
Come into Global market since the year of 2013.
A,Description of Item: 6 Reels Rolling Machine
C,Features & Functions
1)Application material: Winding any kinds of Narrow Fabric,Labels,satin ribbons,silk ribbons,roll to roll materials/webbings within 100mm width
2)Precisely winding any roll to roll material with width<100mm.
3)convey: powered by full auto Electrical Motor
4)One operator need only
5)6-12 Axes can be assembled freely for purpose of different orders.

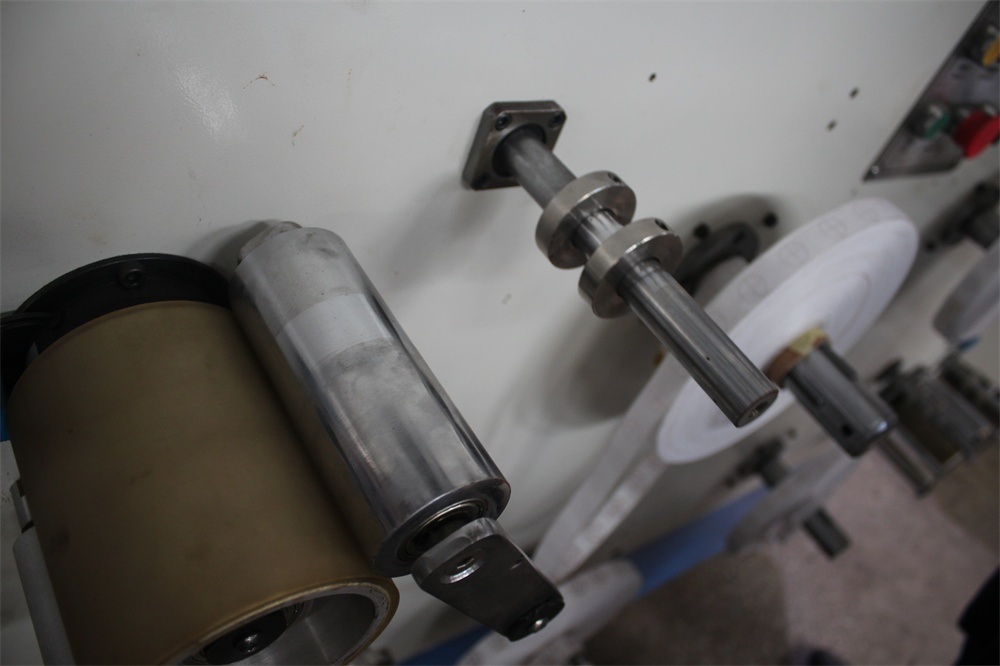

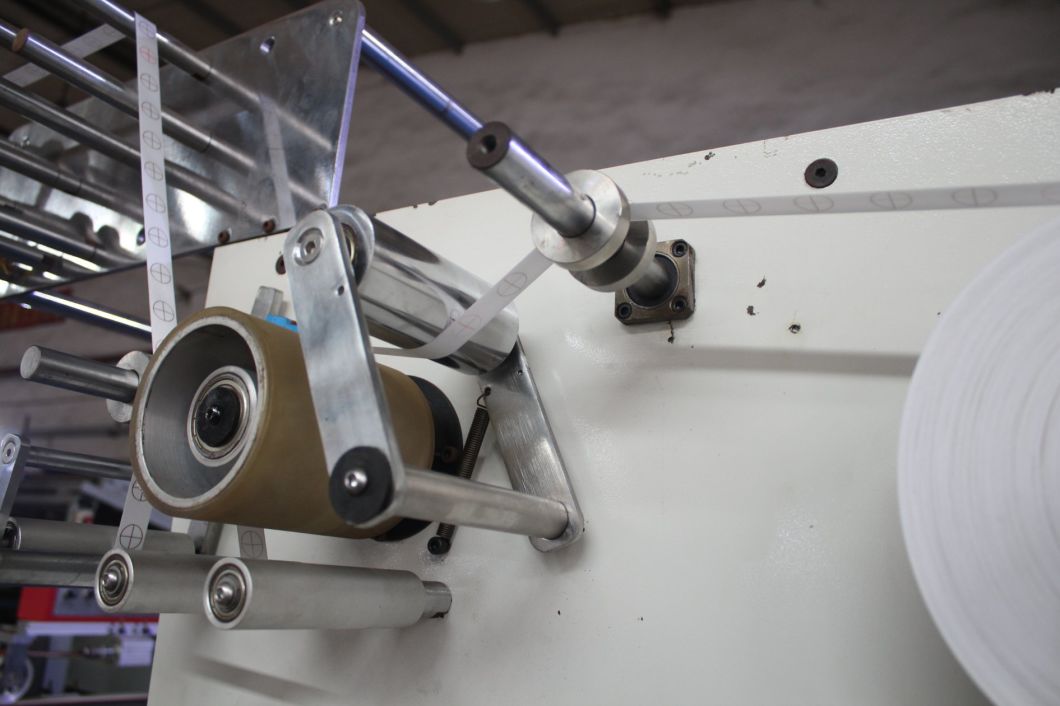

6)Anti-slip device make the webbings passed precisely through sensor before winding.
7)freely set up the required length for packing.
8)controlled by both computer and manual.
1)Max Winding Diameter: 400mm
2)Winding Length: 10-1000m/roll
3)Material’s width: 10-100mm
5)MAX. Speed /H.:80m/min/reel
6)Rolling core(inner Φ):10-60mm
8)Machine Size: 2450*1000*1800mm
KINWAH Packing machines are widely used,recogonized with long term cooperated with many partners,the world biggest and famous narrow fabric manufacturers are using our machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.
DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.
2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.
Covered by plastic membrane within full container or less container (woodencase)
