    8 Heads Narrow Fabric/Label Ribbons Winding Machine

    Short Description:

    Basic Info Model NO.: KW-820-100R Structure: Cantilevered Winding Machine Series: Y Series Cylinder Type Axial Winding Machine Power: 4.0kw Phase: 3 Phases Frequency: 50/60Hz ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-820-100R
    Structure: Cantilevered Winding Machine
    Series: Y Series Cylinder Type Axial Winding Machine
    Power: 4.0kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Winding Speed: 133.33m/Min
    Max Winding Diameter: 400mm
    Weight: 230kg
    Winding Length: 10-1000m/Roll
    Material′s Width: 6-100mm
    Material′s Thickness: 0.1-1.0mm
    Rolling Core(Inner φ): 10-60mm
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Plastic Film
    Specification: 2450*1000*1800mm
    Origin: China
    HS Code: 84515000

    Product Description

    8 Heads Narrow Fabric/Label Ribbons Winding Machine

    Product Description
    KW-820-100R , It’s a kind of winding machinery for all kinds of Narrow Fabric,Labels,satin ribbons,silk ribbons,roll to roll materials/webbings within 100mm width.

    Auto PLC Control system

    Dual Sides feed in system

    Precisely winding accordingly

    Widely used for winding any Narrow Fabric

    Webbing’s winding speed/Frequency will be different according to its own diameter increase

    Come into Global market since the year of 2013.



    A,Description of Item: 6 Reels Rolling Machine

    B,Model:  KW-820-100R

    C,Features & Functions

    1)Application material: Winding any kinds of Narrow Fabric,Labels,satin ribbons,silk ribbons,roll to roll materials/webbings within 100mm width

    2)Precisely winding any roll to roll material with width<100mm.

    3)convey: powered by full auto Electrical Motor

    4)One operator need only

    5)6-12 Axes can be assembled freely for purpose of different orders.

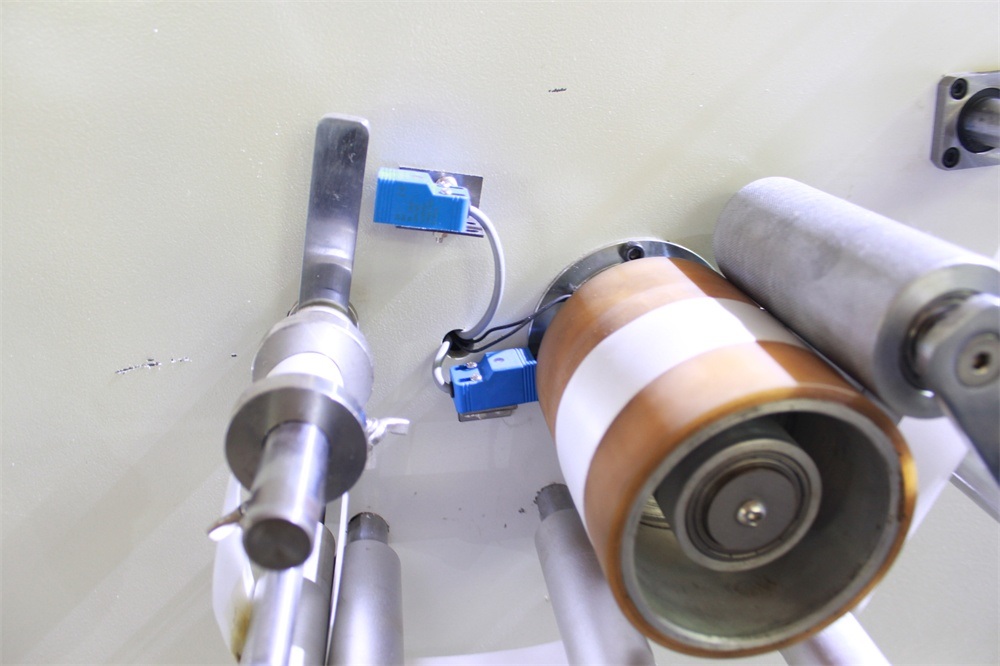

    6)Anti-slip device make the webbings passed precisely through sensor before winding.

    7)freely set up the required length for packing.

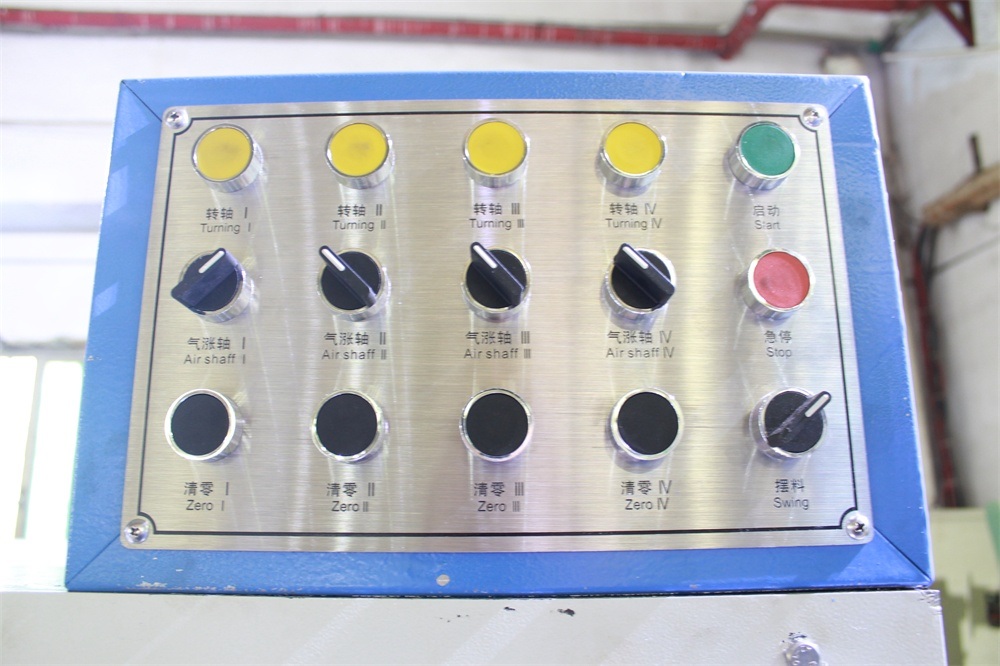

    8)controlled by both computer and manual.

    D,Technical Specification:

    1)Max Winding Diameter: 400mm
    2)Winding Length: 10-1000m/roll
    3)Material’s width: 10-100mm
    4)Material’s thickness:0.1-1.0mm
    5)MAX. Speed /H.:80m/min/reel
    6)Rolling core(inner Φ):10-60mm
    7)Max. Power:3.0Kw/380V/3P/50-60HZ
    8)Machine Size: 2450*1000*1800mm
    9)Weight:230kg



    Our Services

    KINWAH Packing machines are widely used,recogonized with long term cooperated with many partners,the world biggest and famous narrow fabric manufacturers are using our machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.


    Company Information

    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Packaging & Shipping

    Covered by plastic membrane within full container or less container (woodencase)

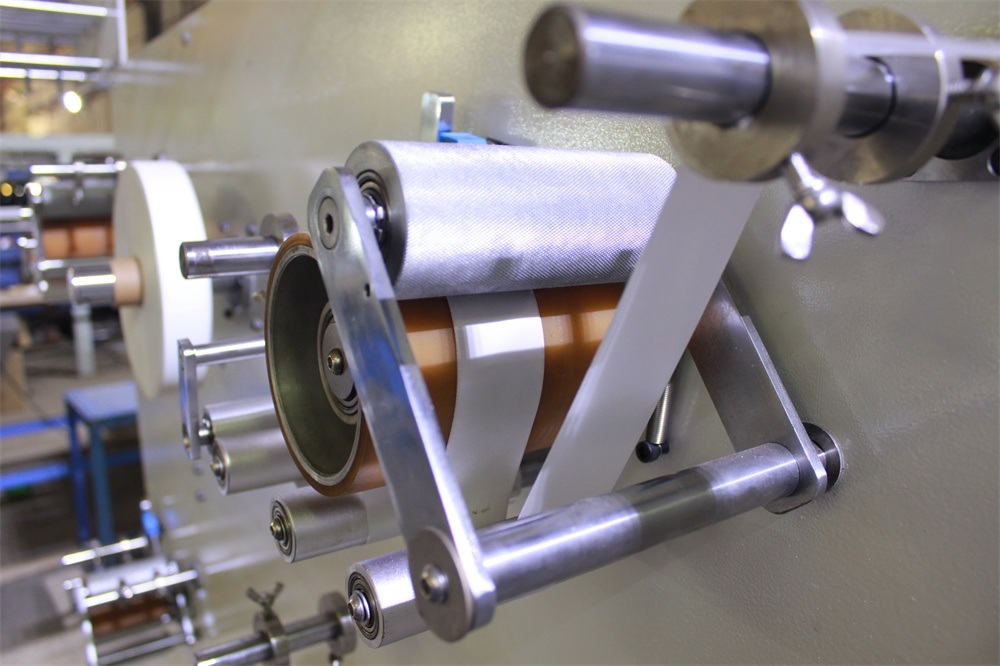

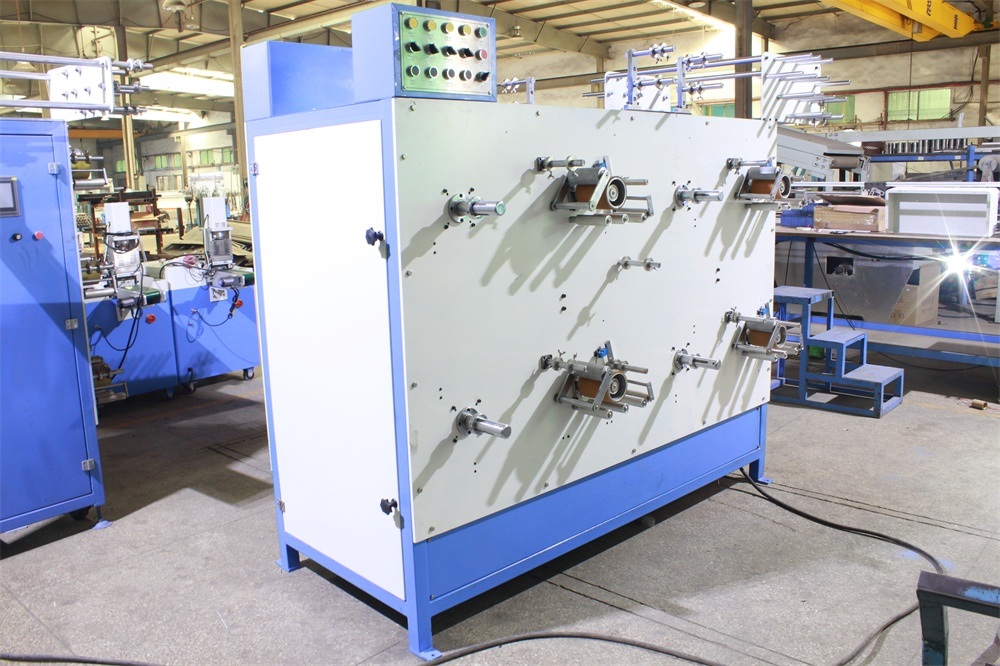

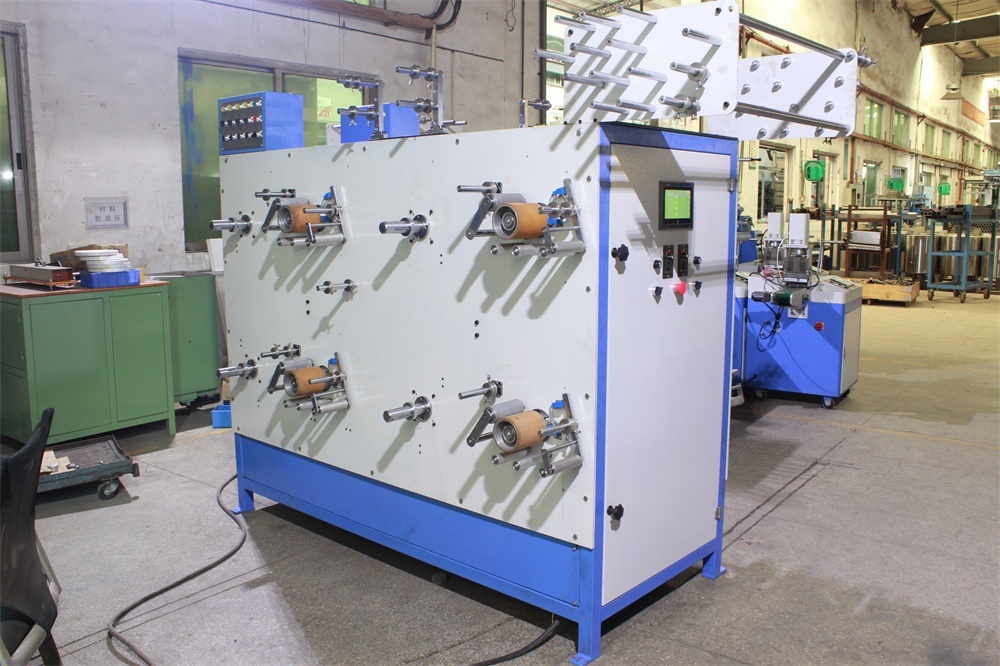

    8 Heads Narrow Fabric/Label Ribbons Winding Machine
