    Bag Belts Continuous Dyeing&Finishing Machine with Competitive Price Kw-800-Xb400

    Short Description:

    Basic Info Model NO.: KW-800-XB400-H Warranty: 1 Year Customized: Customized Condition: New Brand Name: Kinwah Machine Type: Continuous Dyeing&Finishing Machine ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-800-XB400-H
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Brand Name: Kinwah
    Machine Type: Continuous Dyeing&Finishing Machine
    Driven Type: Electric
    Power(W): 30kw
    Frequency: 50/60Hz
    Dimension(L*W*H): 15000*1000*1800mm
    Weight: 3ton
    After-Sales Service Provided: Engineers Available
    Max Working Temperature: 220°c
    Maximum Speed (M): 40 M/Min
    Trademark: kinwah
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

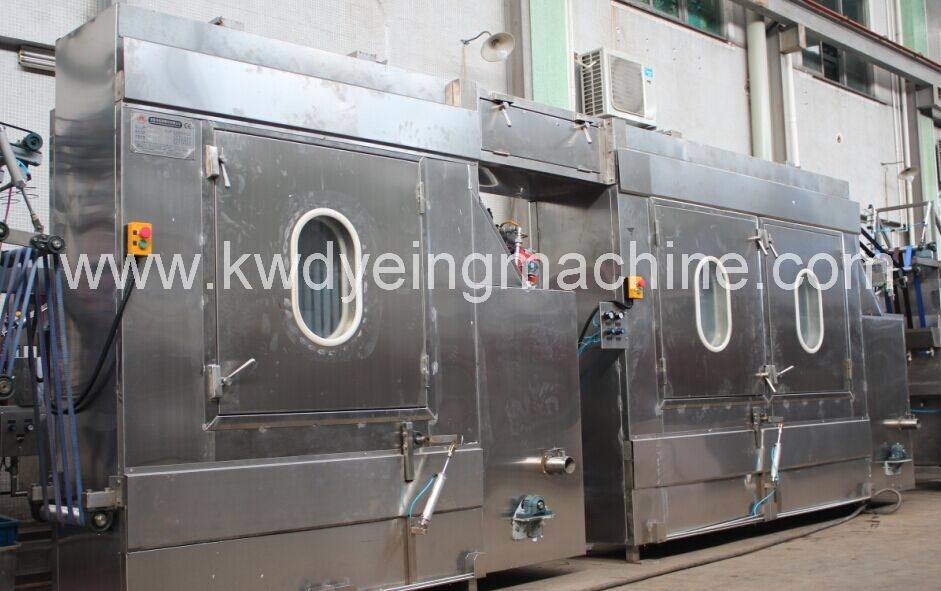

    Bag Belts Continuous Dyeing&Finishing Machine with Competitive price KW-800-XB400

    Item No: KW-800-XB400
    Size:    18000*1000*1800mm
    This is high speed luggage&Suitcase belts/webbing continuous dyeing machines for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings etc.

    Features:
    1) High efficiency
    2) Power Energy Saving
    3) Our patents.

    4)Application: The dyeing machine is especially used for
    Safty webbings,automobile safty belts,luggage&Suitcase belts/lanyard ribbons,satin ribbons with thickness below 1.5mm.

    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Heat System       electrical/LPG or natural gas/steam
    Working Width(mm)  200/400/600
    Thermofixation Chamber Tape Content(m) 45/60/60/80
    Maximun Speed(m)   15/30/40
    Maximun Number(m)  6/10/20
    Control system        Manual/Computer control(PLC&Touch screen)

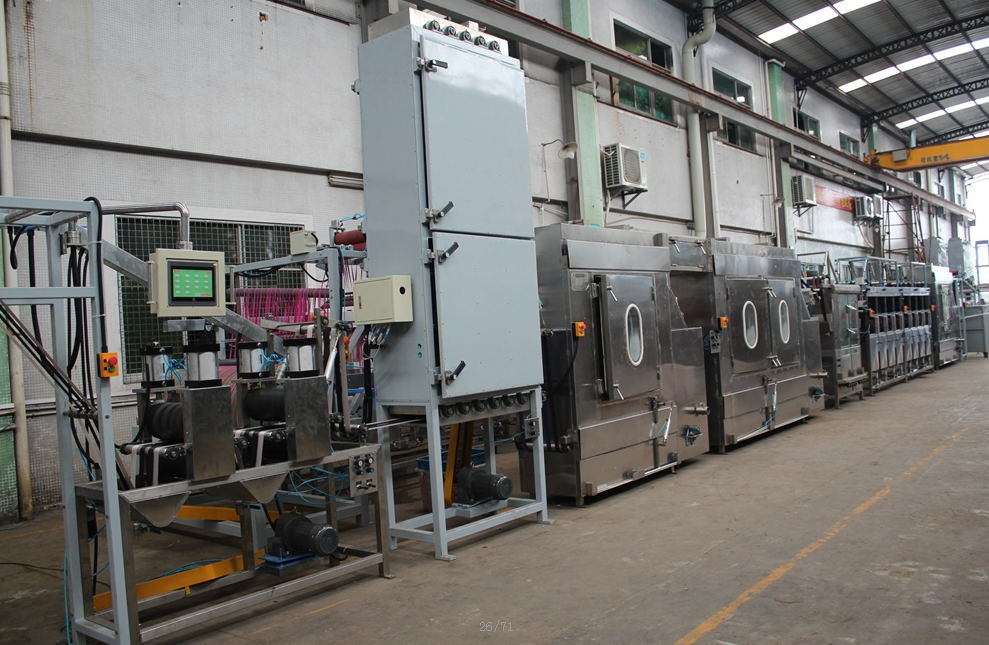

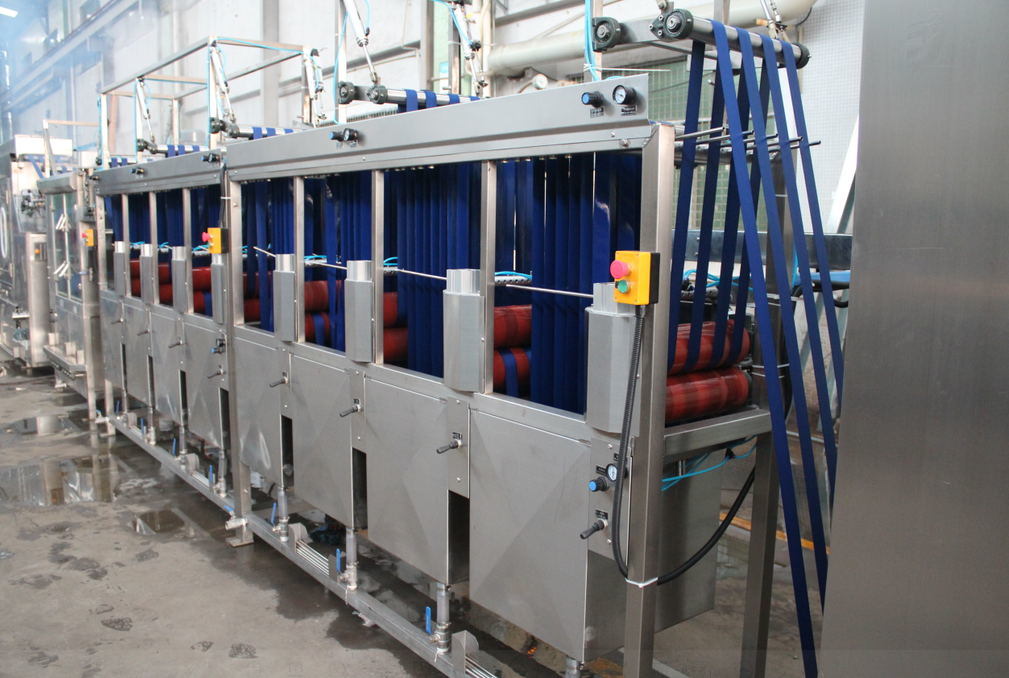

    Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off


    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
