    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine - Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah

    Short Description:

    Basic Info Model NO.: SPE-3000S-5C System supported: PLC Driven Type: Electric Printing Area: 300mm*600mm Max Speed: 16m/Min /Line Registration Precision: 0.05mm ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We're committed to providing easy,time-saving and money-saving one-stop purchasing service of consumer for Polyester Luggage Belt Starching And Finishing Machine , Twill Tapes Automatic Screen Printing Machine , Mini High Temperature Automatic Screen Printing Machine , With a wide range, good quality, realistic charges and stylish designs,Our products and solutions are widely recognized and trusted by users and can fulfill continuously changing economic and social needs.
    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine - Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah Detail:

    Basic Info

    Model NO.: SPE-3000S-5C
    System supported: PLC
    Driven Type: Electric
    Printing Area: 300mm*600mm
    Max Speed: 16m/Min /Line
    Registration Precision: 0.05mm
    Voltage: 220vc-440
    Power: 12-40kw
    Condition: New
    Certification: Ce,SGS
    After-Sales Service Provided: Engineers Available to Service Machinery Overseas
    Application: Roll to Roll Materials,Narrow Fabric
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China
    HS Code: 84431922

    Product Description

    Multicolors Satin Labels Automatic Screen Printing Machine

    Product Description
    DOPSING SPE3000S,

    Servo system +Sensor+Screw Rod+Tension Controller
    Muti-color print 1C-8C
    single side or double side printing
    Come into Global market since the year of 2003.

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.


    Total Colors Max Printing Area Registration Precision Printing Speed Max.Power Dimension

    2 C 300X600mm 0.05mm 10m/min 16KW/380V/70A 9500X1000X1300mm

    3 C 300X600mm 0.05mm 10m/min 21KW/380V/80A 12500X1000X1300mm

    4 C 300X600mm 0.05mm 10m/min 25KW/380V/100A 15500X1000X1300mm

    5 C 300X600mm 0.05mm 10m/min 32KW/380V/120A 18500X1000X1300mm

    6 C 300X600mm 0.05mm 10m/min 40KW/380V/150A 21500X1000X1300mm



    Model: SPE-3000S-3C
    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
    2)Over printing for more colors, it can print 5C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.
    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.

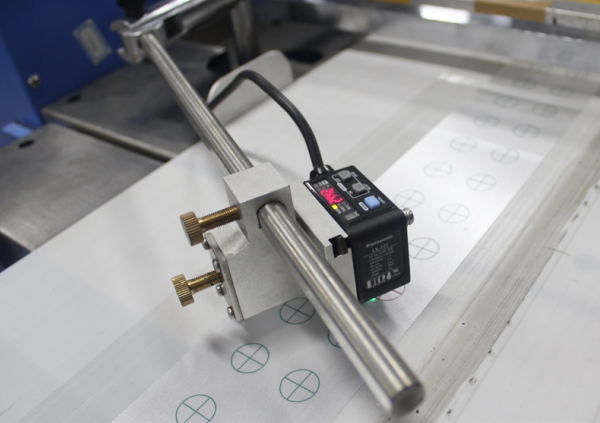

    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.
    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
    Your staffs until they master the machine. All of this is free.

    Our Services
    Dopsing automatic screen printing machines are widely used,recogonized
    with long term cooperated with many partners.the world biggest and
    famous narrow fabric manufacturers are using our screen printing
    machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
    Elastic tapes manufacturer STRETCHLINE and so on.

    Company Information
    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Packaging & Shipping
    Covered by plastic membrane within full container or less container
    (woodencase)

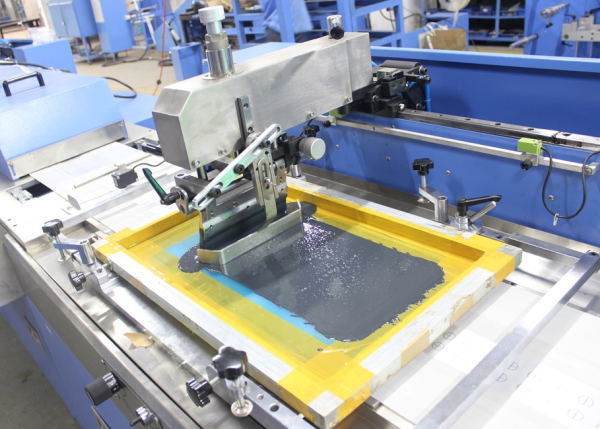

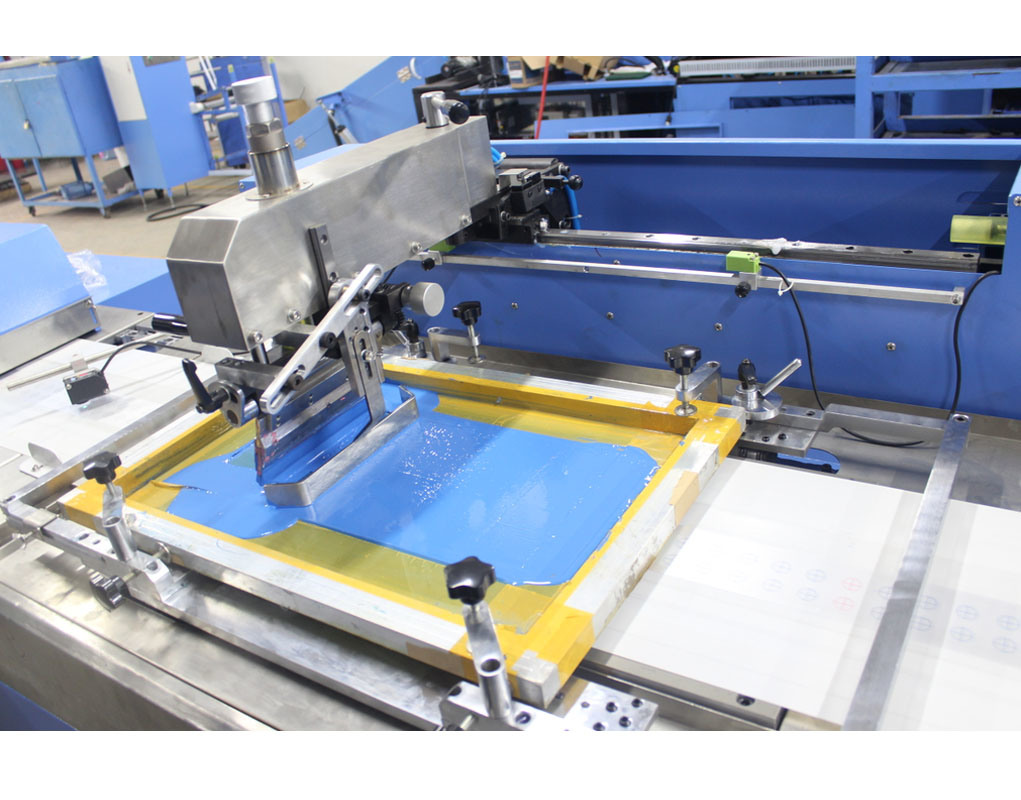

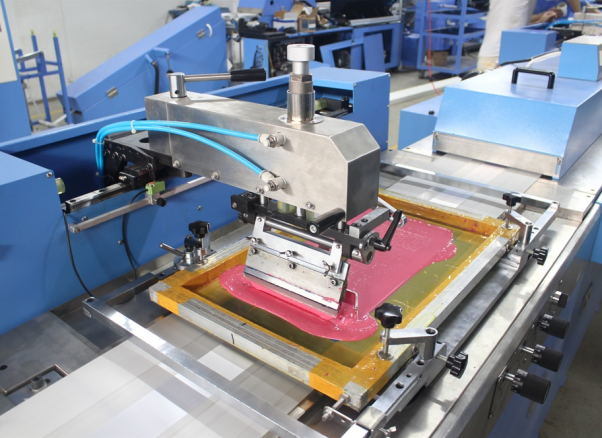

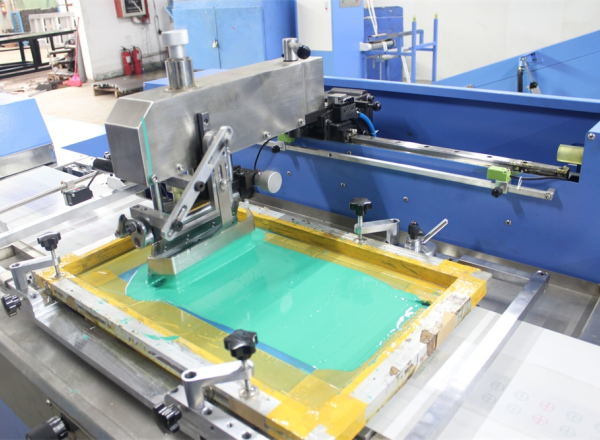

    Multicolors Satin Labels Automatic Screen Printing Machine
    Multicolors Satin Labels Automatic Screen Printing Machine
    Multicolors Satin Labels Automatic Screen Printing Machine
    Multicolors Satin Labels Automatic Screen Printing Machine
    Multicolors Satin Labels Automatic Screen Printing Machine
    Multicolors Satin Labels Automatic Screen Printing Machine


    Product detail pictures:

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures

    Best Price on 4 Color 4 Station Rotary Screen Printing Press Machine -
 Multicolors Satin Labels Automatic Screen Printing Machine – Kin Wah detail pictures
