Product Description

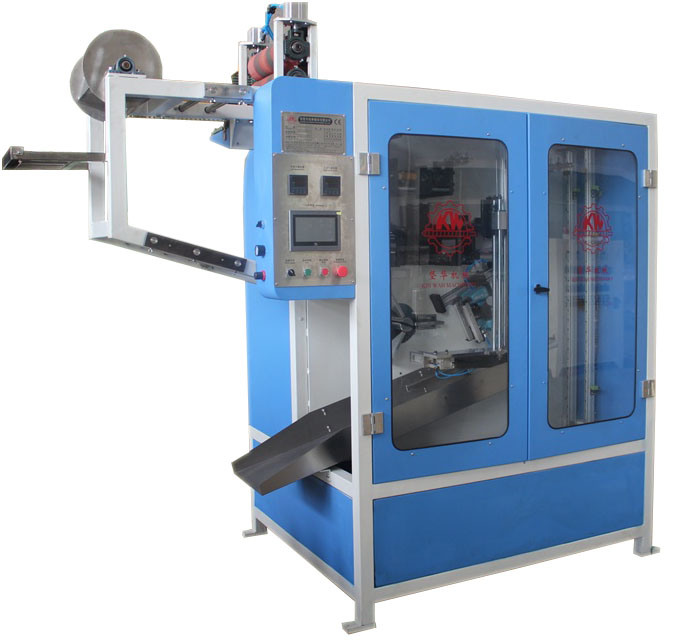

KW-820-160L , It’s a kind of cutting and winding machinery for all kinds of heavy duty webbings such as sling webbings,lashing straps/tie down straps, safety belts,luggage belts/webbings,textile lift sling webbings.
Servo system
U box design for feed in safely
The built-in Heating system makes thick material can be cut easier
precisely cutting area and length.
widely used for cutting any heavy duty webbings
Webbing’s rotating speed will be different according to its own diameter increase
Come into Global market since the year of 2012.

A,Description of Item:  Sling webbings automatic cutting and winding machine
B,Model:  KW-820-160L
C,Features & Functions
1)Application material: cutting any kinds of heavy duty webbings such as sling webbings,lashing straps/tie down straps, safety belts,luggage belts/webbings,textile lift sling webbings
.
2)Precisely cutting any roll to roll material with width<100mm.
3)convey: powered by full auto servo Motor .Not by air pressure.
4)One operator need only
5)Cutter can be automatic lift up for purpose of easy cleaning.
6)Anti-slip device make the webbings passed precisely through cutter before cutting.
7)freely set up the cutting length and the times gap on the screen.
8)controlled by both computer and manual.
11)After cutting device for webbings automatic winding into rolls.
D,Technical Specification:
1)Cutter:1 Piece
2)Max. Cutting Area: 50mm/line
3)Cutting linest: 2LINES/TIME
4)MAX. Speed /H.:2m/s/Line
5)Max. Power:1.5Kw/380V/3P/50-60HZ
6Machine Size: 7000*800*1800mm
