    Cargo Webbings Automatic Screen Printing Machine Ce Approved

    Short Description:

    Basic Info Model NO.: DS-302B Phase: 3 Phases Frequency: 50/60Hz Max Speed: 7m/Min /Line Printing Area: 300*1300mm Printing Linest: 1-6 Lines/Time Regis...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: DS-302B
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Speed: 7m/Min /Line
    Printing Area: 300*1300mm
    Printing Linest: 1-6 Lines/Time
    Registration Precision: 0.05mm
    Gross Power: 20kw
    Application: Lifting Webbing,Synthetic Web Sling,Safe Sling
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

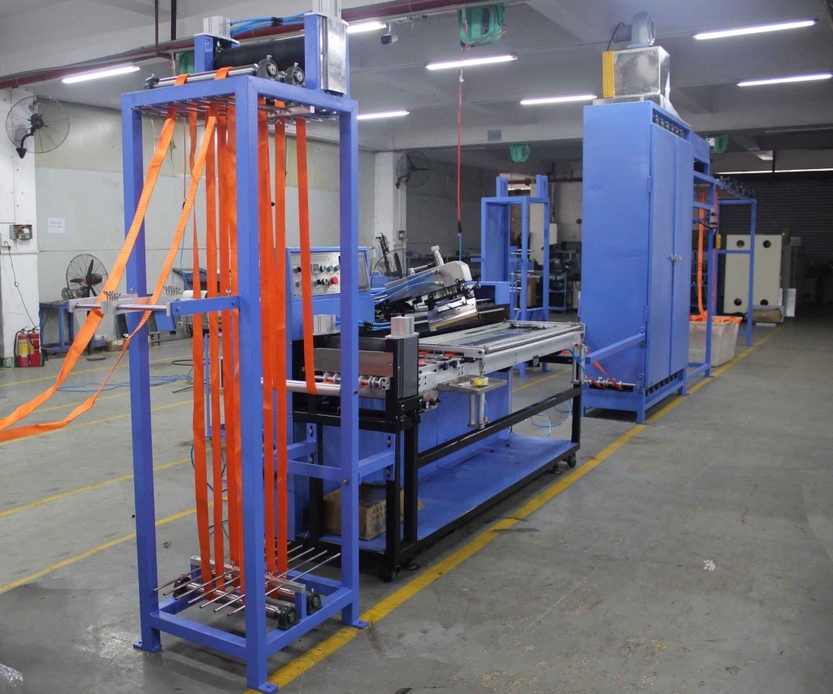

    Cargo Webbings Automatic Screen Printing Machine Ce Approved

    This is a kind of automatic textile lift slings webbings printing machine in screen printing type, with PLC and touch screen

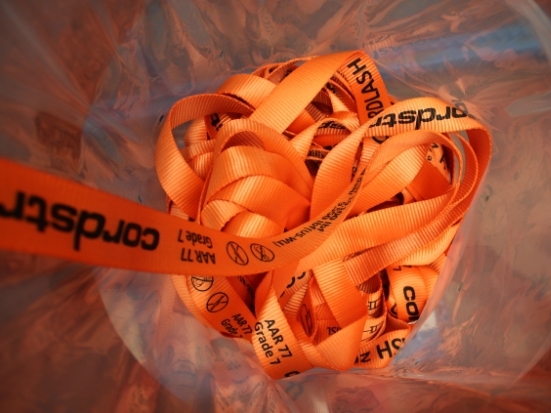

    1)Application material: print any kinds of roll to roll webbings, such as seatbelt webbings, tie down straps, luggage and suitacase webbings and so on.
    2)Precisely Print any roll to roll material with width<30CM.
    3)convey: powered by full auto servo Motor .Not by air pressure.
    4)One operator need only
    5)Anti-wind device make the ribbon pulled into dryer after printing.
    6)free set up the printing times and the carry times on electronic Dryer lift while stop
    7)Most parts are made in Europe,Japan
    8)controlled by both computer and manual.
    D,machine configuration:
    1) Feed in :1set frame
    2) webbings rollers guiding device:1set with frame.
    3) printer:1set
    4)Dryer system: 1set
    1)with tape content of 20meters tape content
    2)heated with electrical
    3)with temperature control, temperature is adjustable
    4)Laid out air blower for heating webbings .
    5) take off device:1set 3group of take off wheels for 6 webbings take off purpose
    E. Technical specification:
    1)Colore:1C
    2)Max. Printing Area:30CM*130CM
    3)Printing linest: 1-6LINES/ TIME
    4)MAX. Speed /H.:10M/Line/Minute
    5)Max. Power:20KW/380V/3P/50 Hz
    Remark:1) Inverter:MISTUSBISH
           2)PLC: MISTUSBISH or AB(America)

    It’s widely usded by the world famous printing manufacturers,such as JULI Group, Murtra, Protekt, Astro, Hedef Halat, Ekas, Tsiros and Ferreterro, Dahua, Lijia, LiQiang


    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.
