Cheapest Price Gift Ribbons Stamping Machine - Multicolors Twill Tapes Screen Printing Machine with PLC Control – Kin Wah Detail:

Basic Info

Model NO.: SPE-3000S

Main Parts Material: Stainless Steel or Iron

Driven Type: Electric Servo Moto

Power: 16-40kw

Phase: 3 Phases

Frequency: 50/60Hz

Printing Area: 300mm*600mm

Max Speed: 13m/Min /Line

Dimension: 7000*1200*1300mm

Net Weight: 2000kg

Trademark: Dopsing

Transport Package: Wooden Box

Specification: CE certification

Origin: China

HS Code: 8443192290

Product Description

Multicolors Twill Tapes Screen Printing Machine with PLC Control

Product Description

DOPSING SPE3000S,

Servo system +Sensor+Screw Rod+Tension Controller

Muti-color print 1C-8C

single side or double side printing

Come into Global market since the year of 2003.

it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

Total Colors	Max Printing Area	Registration Precision	Printing Speed	Max.Power	Dimension

2 C	300X600mm	0.05mm	10m/min	16KW/380V/70A	9500X1000X1300mm

3 C	300X600mm	0.05mm	10m/min	21KW/380V/80A	12500X1000X1300mm

4 C	300X600mm	0.05mm	10m/min	25KW/380V/100A	15500X1000X1300mm

5 C	300X600mm	0.05mm	10m/min	32KW/380V/120A	18500X1000X1300mm

6 C	300X600mm	0.05mm	10m/min	40KW/380V/150A	21500X1000X1300mm

Model: SPE-3000S-3C
Precise printing
1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
2)Adjusting printing position by Auto Sensors system instead of handcraft.
3)Tension controller and the brake make the conveying exactly
Functions:
1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
2)Over printing for more colors, it can print 5C~8C too
3)Both sides printing several trips at one time
4)slice printing
5)Micro adjusting meter for frame adjusting automatically.
6)Anti-wind device makes the ribbon pulled into dryer after printing.
7)Infrared dryer and heater make the any kinds ink dry enough.
8)Free set up the printing times and the carry times on electronic touch screen.
9)Several sensors tracing the situation of the feeding materials.
10)Dryer lift while the machine stopping
11)Most core parts import from Europe&Japan.

Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
Your staffs until they master the machine. All of this is free.

Our Services

Dopsing automatic screen printing machines are widely used,recogonized
with long term cooperated with many partners.the world biggest and
famous narrow fabric manufacturers are using our screen printing
machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
Elastic tapes manufacturer STRETCHLINE and so on.

Company Information

DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

Packaging & Shipping

Covered by plastic membrane within full container or less container

(woodencase)
Multicolors Twill Tapes Screen Printing Machine with PLC Control

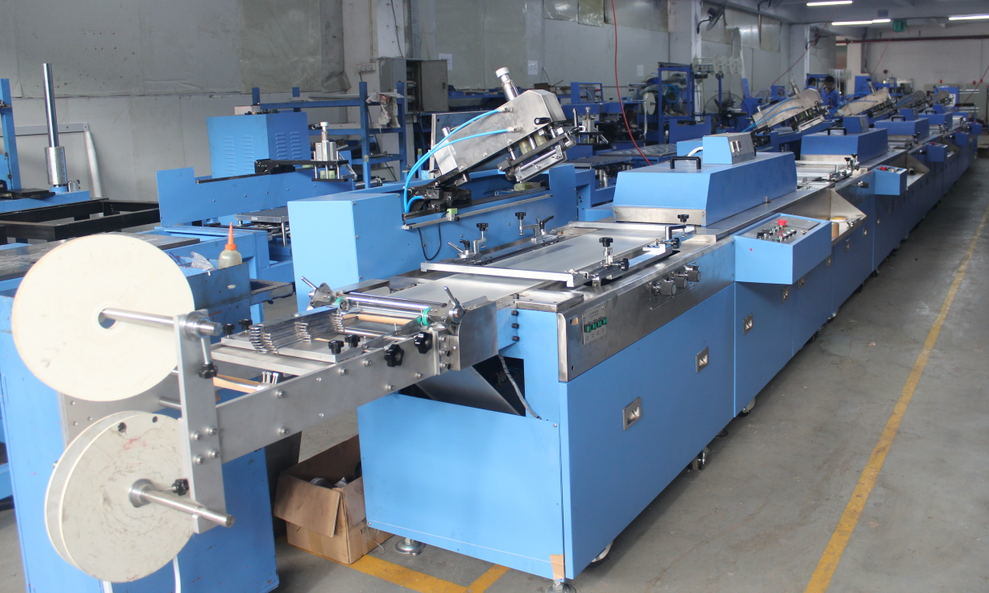

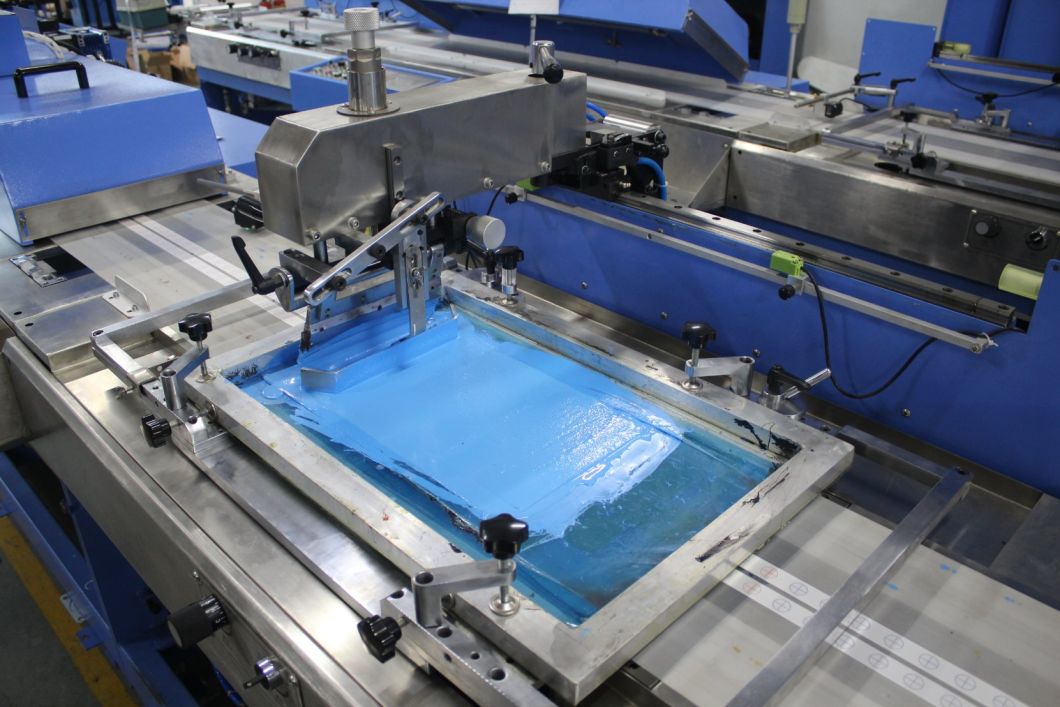

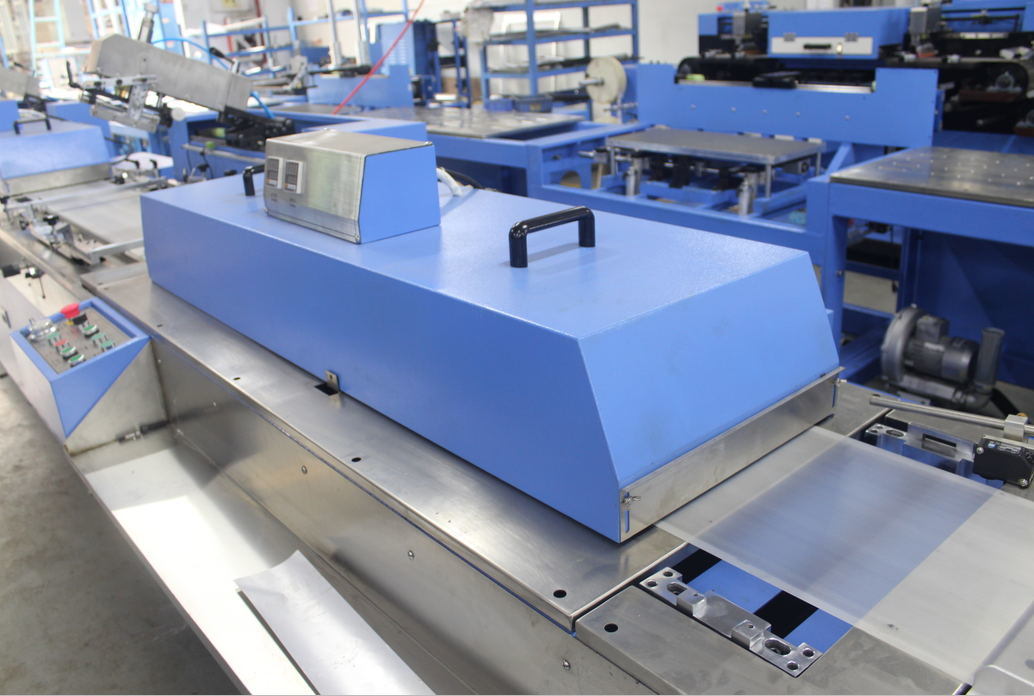

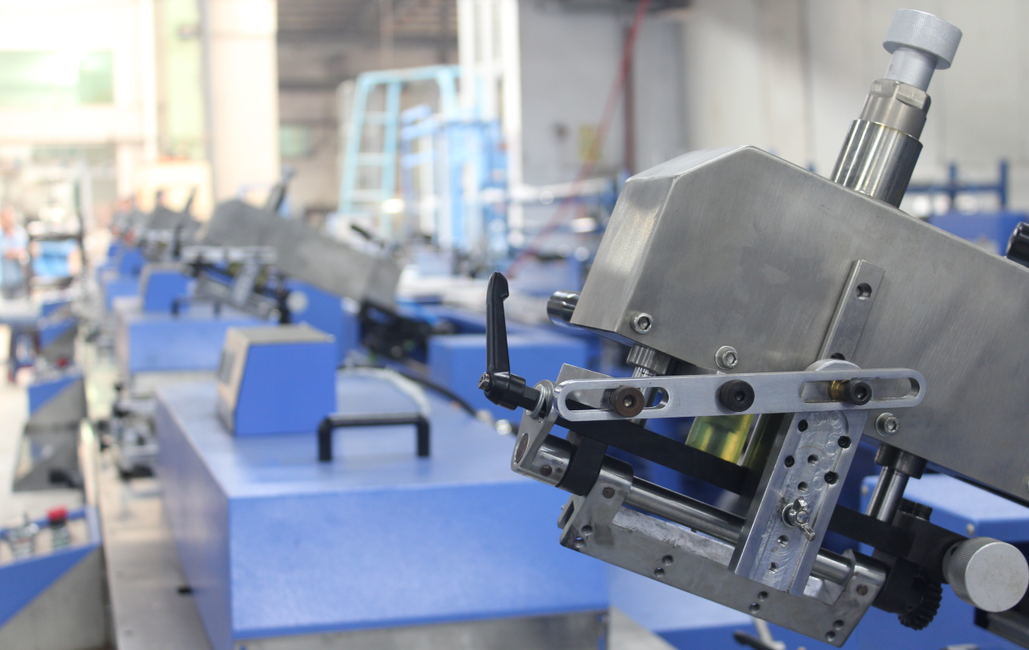

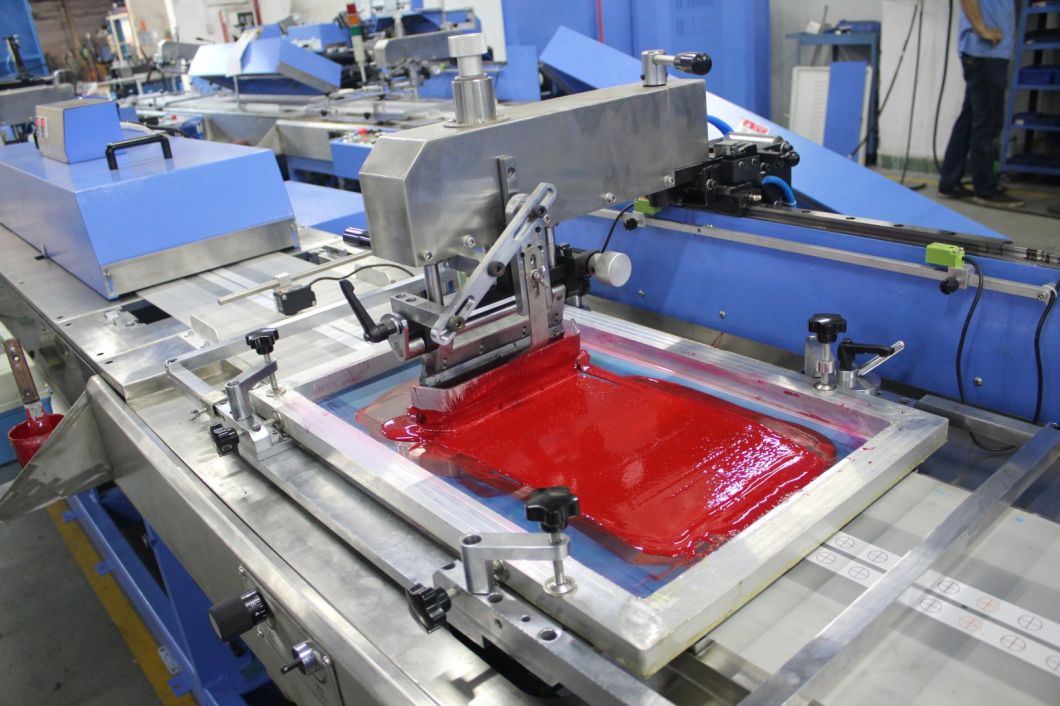

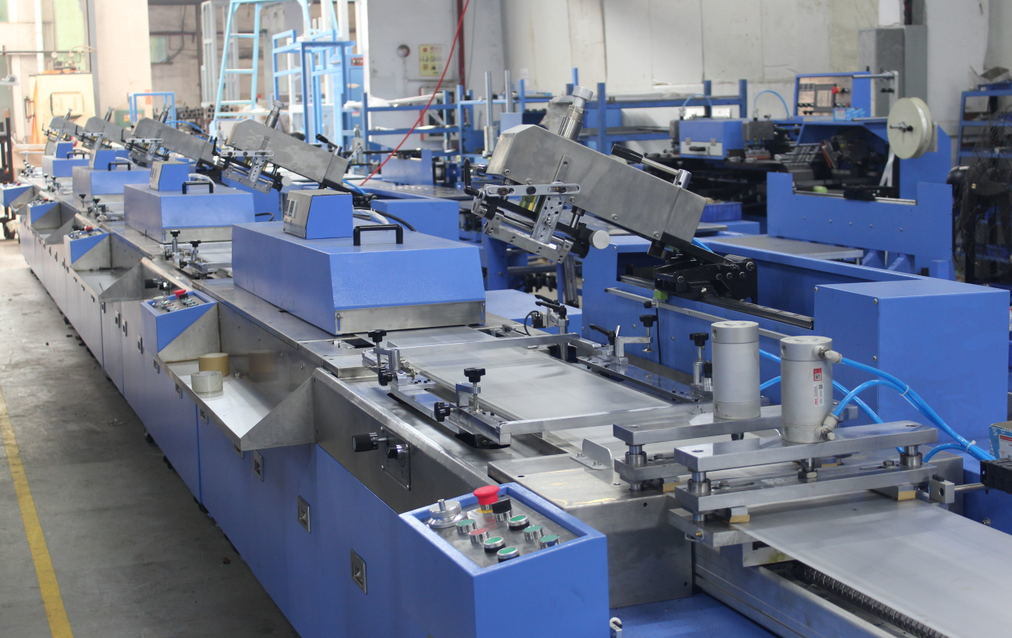

Product detail pictures:
