China Factory for Nylon Tapes Screen Printer - Kw-800-Aqs400 Two Ends Automobile Seatbelt Webbings Continuous Dyeing Machine – Kin Wah Detail:

Basic Info

Model NO.: KW-800-AQS400

Warranty: 1 Year

Customized: Customized

Condition: New

Machine Type: Dyeing&Finishing Machine

Main Part Material: Stainless Steel, Iron, Carbon Steel etc

Power(W): 38kw

Driven Type: Electirc

Phase: 3 Phases

Frequency: 50/60Hz

Max Working Temperature: 160-180°c

Max Speed: 20m/Min

Drying Type: Hot Air

Heating System: Electrical/LPG or Natural Gas/Steam

Trademark: Dopsing

Transport Package: Wooden Box

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 894560000

Product Description

KW-800-AQS400 Two ends automobile seatbelt webbings continuous dyeing machine

Item No: KW-800-AQS400
Size: 22000*1000*1800mm
This is a kind of two ends automobile seatbelt,webbings continuous dyeing machine,European standard two ends automobile seatbelt webbings continuous dyeing machines

Features:
1) High efficiency
2) With elongation and Calender functions
3) Our patents.

4)Application: The dyeing machine is especially used for
two ends automobile seatbelt webbings with European standard requirement. With elongation and relative calender function.

Product capacity: 1-2Pcs/time, 0-25meter/min/Pcs
Heat System       electrical/LPG or natural gas/steam
Working Width(mm) 200
Thermofixation Chamber Tape Content(m) 70
Maximun Speed(m)   25
Maximun Number(m) 2
Control system       Manual/Computer control(PLC&Touch screen)

Processes: Feed in-accumulator-dyeing groove-infrared pre drying-hold mangle-thermofixation-press calender-cool off-pull mangle-Chemical groove-Steamer-water washing-chemical groove-hot air drying-cooling off-pull mangle-take off

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON

Kw-800-Aqs400 Two Ends Automobile Seatbelt Webbings Continuous Dyeing Machine

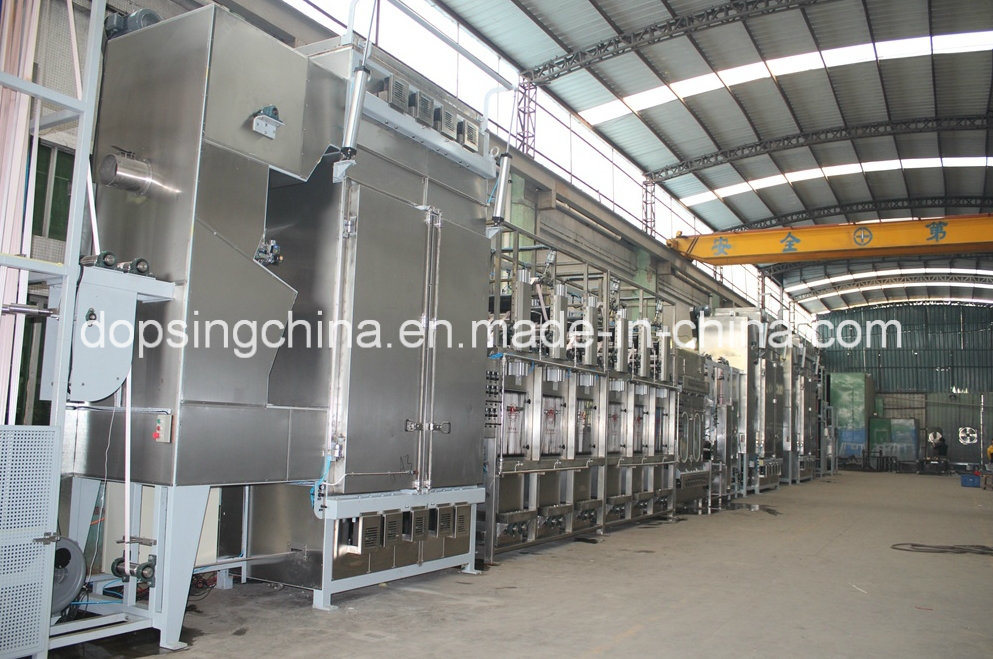

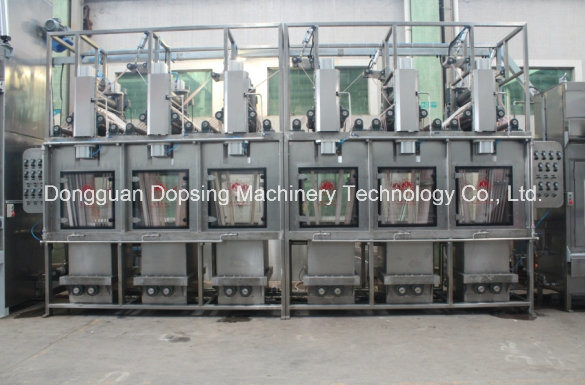

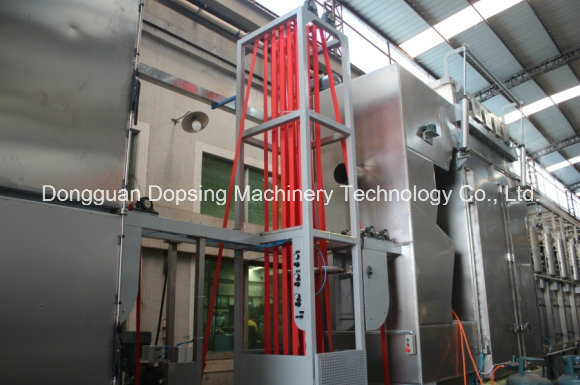

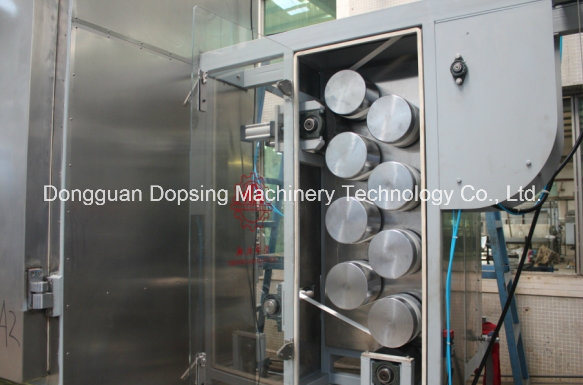

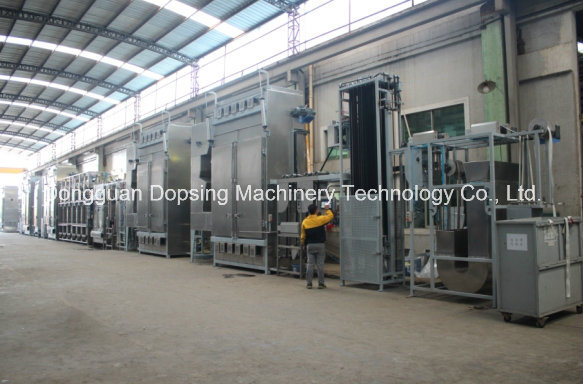

Product detail pictures:
