Item No: KW-800-XB400-H
Size:    15000*1000*1800mm

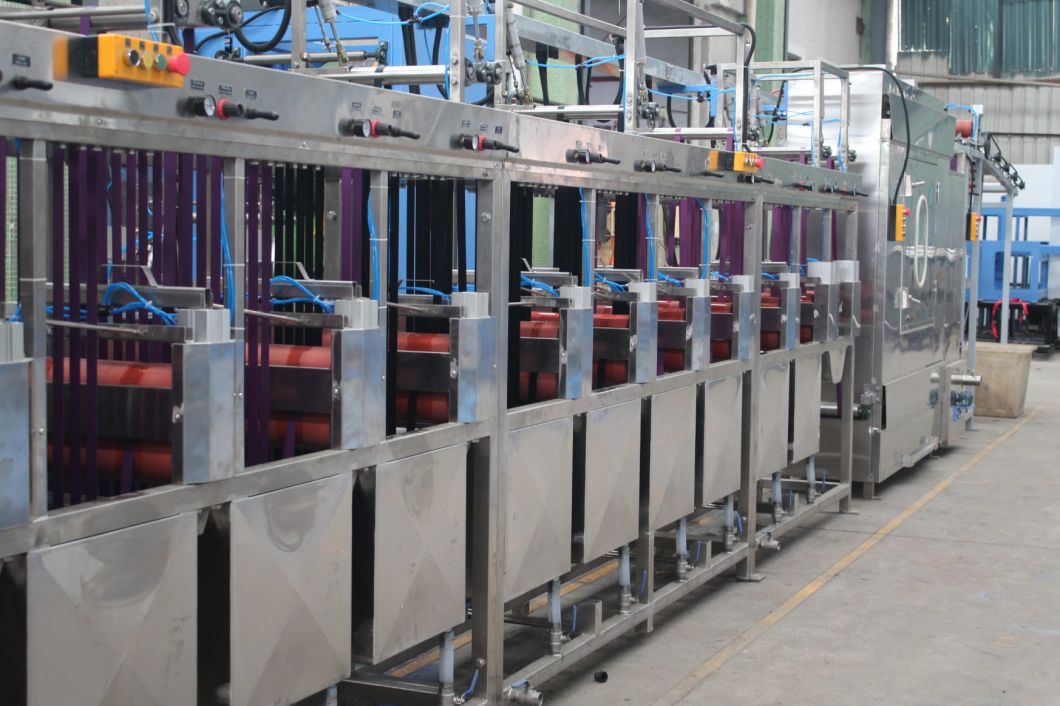

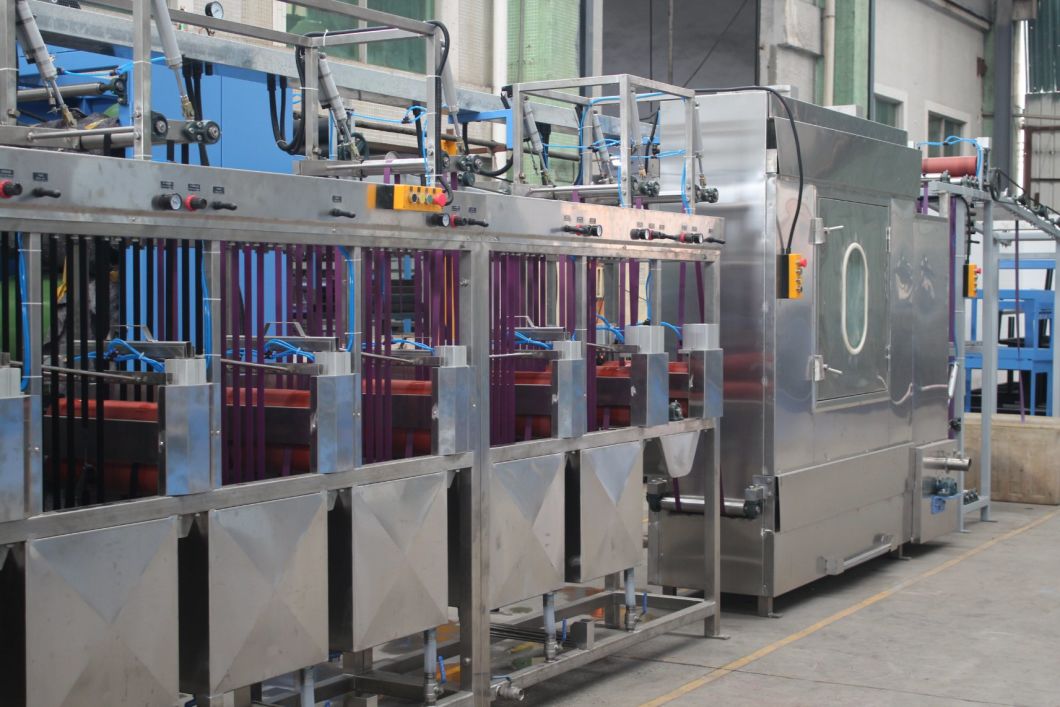

This is high speed luggage&Suitcase belts/webbing continuous dyeing machines for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings etc.

Features:
1) High efficiency
2) Power Energy Saving
3) Our patents.

4)Application: The dyeing machine is especially used for
luggage&Suitcase belts/webbing continuous dyeing machines
for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings with thickness below 1.5mm.

5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

Heat System       electrical/LPG or natural gas/steam
Working Width(mm)  200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m)   15/30/40
Maximun Number(m)  6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

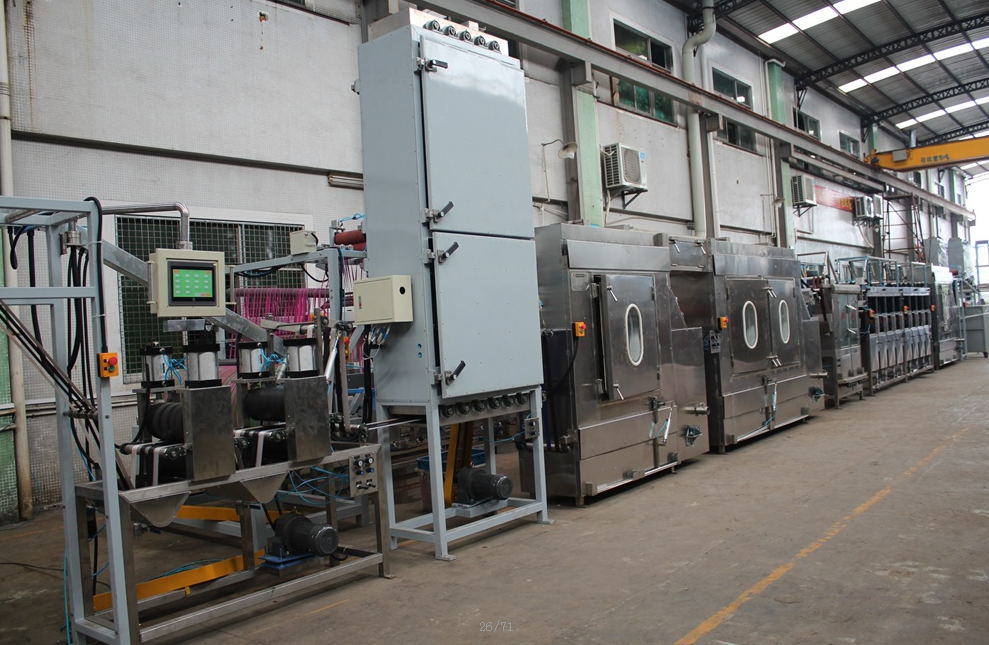

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-hot air chamber drying&finishing unit-cooling system-take off
