    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine

    Short Description:

    Basic Info Model NO.: KW-807-SJ400-A Warranty: 1 Year Customized: Customized Condition: New Type: Dyeing&Finishing Machine Brand Name: Kinwah Model Number: Kw-807-Sj400-a Place of Origin: Guangdong, China Power(W): 55kw Dimension(L*W*H): 18000mm * 1000mm* 4000mm Weight: 5000kg After-Sales Service Provided: Engineers Available to Service Machinery Overseas Max Working Temperature: 100°c Maximum Speed (M): 40 M/Min Trademark: KINWAH Transport Package: Wooden Box Specification: CE certi...


  • Product Name: Disposable Face Mask
  • Product Feature: High Protect, Safe, Fit & Comfort
  • Product Implementation Standards: Q/Jlm 01-202
  • Carton Dimension: 455*385*435mm
  • Paper Box Size: 185*110*85mm
  • Mask Package: 40PCS/Paper Box
  • Box Packag: 50box/Carton, 2000PCS/Carton
  • Full Carton Weight: 8.89kg
  • Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-807-SJ400-A
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Type: Dyeing&Finishing Machine
    Brand Name: Kinwah
    Model Number: Kw-807-Sj400-a
    Place of Origin: Guangdong, China
    Power(W): 55kw
    Dimension(L*W*H): 18000mm * 1000mm* 4000mm
    Weight: 5000kg
    After-Sales Service Provided: Engineers Available to Service Machinery Overseas
    Max Working Temperature: 100°c
    Maximum Speed (M): 40 M/Min
    Trademark: KINWAH
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 84514000

    Product Description

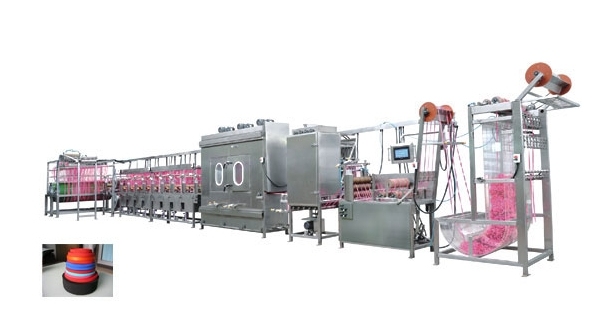

    Compacted design nylon elastic tapes continuous dyeing machine

    Product Description

    Item No:KW-807-SJ400-A

    Size:15000*2400*1000mm

    This isupdated newest elastic tapes continuous dyeing machine

    Features:

    1)with PLC

    2)with  J-Box.

    3)our patents.

    4)it’s the best seller in 2013 .

    5)laid out a new system of tension automatic control
    6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color

                               and polyester elastic tapes into light color laces.

    Item







    Heat System

    electrical

    steam



    Working Width(mm)

    200

    400

    600

    Thermofixation Chamber Tape Content(m)

    45/60

    80/90



    Maximun Speed(m)

    15

    20

    30

    Maximun Number(m)

    4

    8

    12

    Control system

    Manual/PLC





    Option: J-Box  Feed in device with individual tapes tension control

     Processes: J-Box-Feed in-dyeing padder-Steam chamber-washing tank-Pre-dryer-chemical padder-drying&finishing unit-take off

    Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

    Our Services

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing
    machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP,
    BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING
    CONCERN, STRETCHLINE, DUGOTEX SO ON.

    Company Information

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Packaging & Shipping

    Covered by plastic membrane within full container or less container
    (woodencase)

    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine

    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine
    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine
    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine

    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine
    Compacted Design Nylon Elastic Tapes Continuous Dyeing Machine
