    Content Labels Ultrasonic Slitting Machine with High Efficiency

    Short Description:

    Basic Info Model NO.: DPS-009 Applicable Process: Process Materials Suitable Substrates: Slitting Any Roll Material Labels,Such Packaging Material: Wood Machine Type: Label Cutting Machine Materials: Stai...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: DPS-009
    Applicable Process: Process Materials
    Suitable Substrates: Slitting Any Roll Material Labels,Such
    Packaging Material: Wood
    Machine Type: Label Cutting Machine
    Materials: Stainless Steel
    Driven Type: Electric
    Power: 4kw
    Phase: 1 Phase
    Frequency: 50/60Hz
    50/60Hz: 16m/Min
    Max Cutting Width: 25mm
    Net Weight: 500kg
    Dimension: 4760X850X1600mm
    Trademark: Dopsing
    Transport Package: Full Container or Less Container with Film
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 894560000

    Product Description

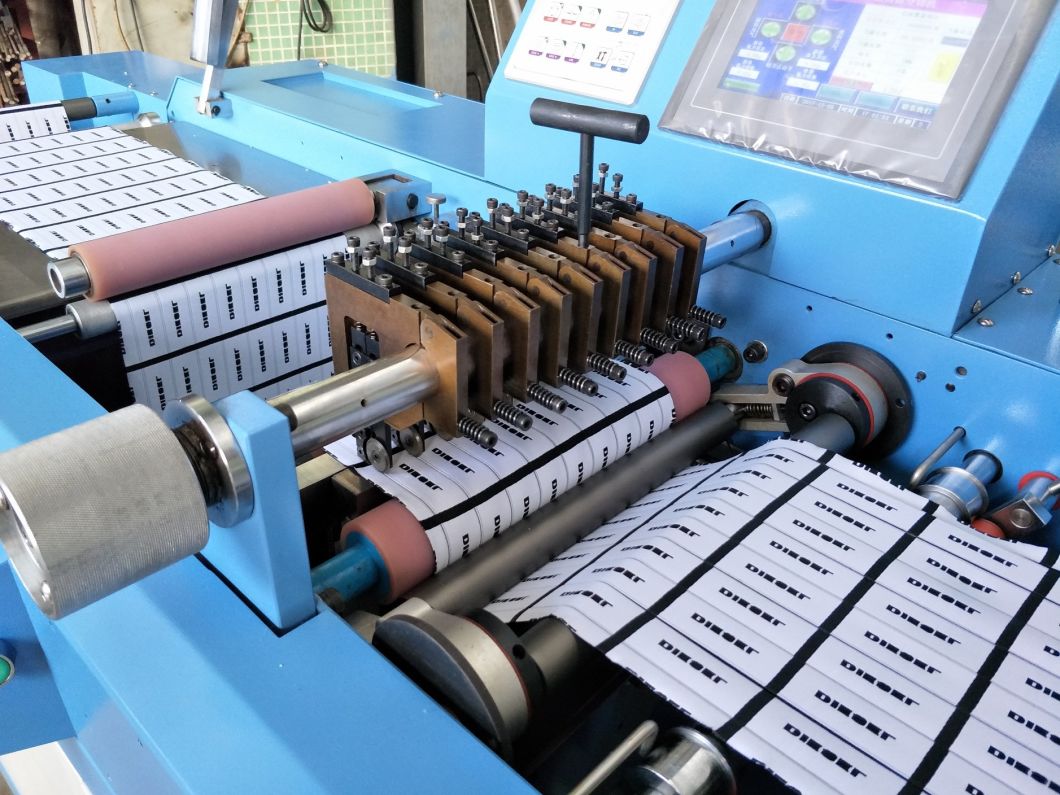

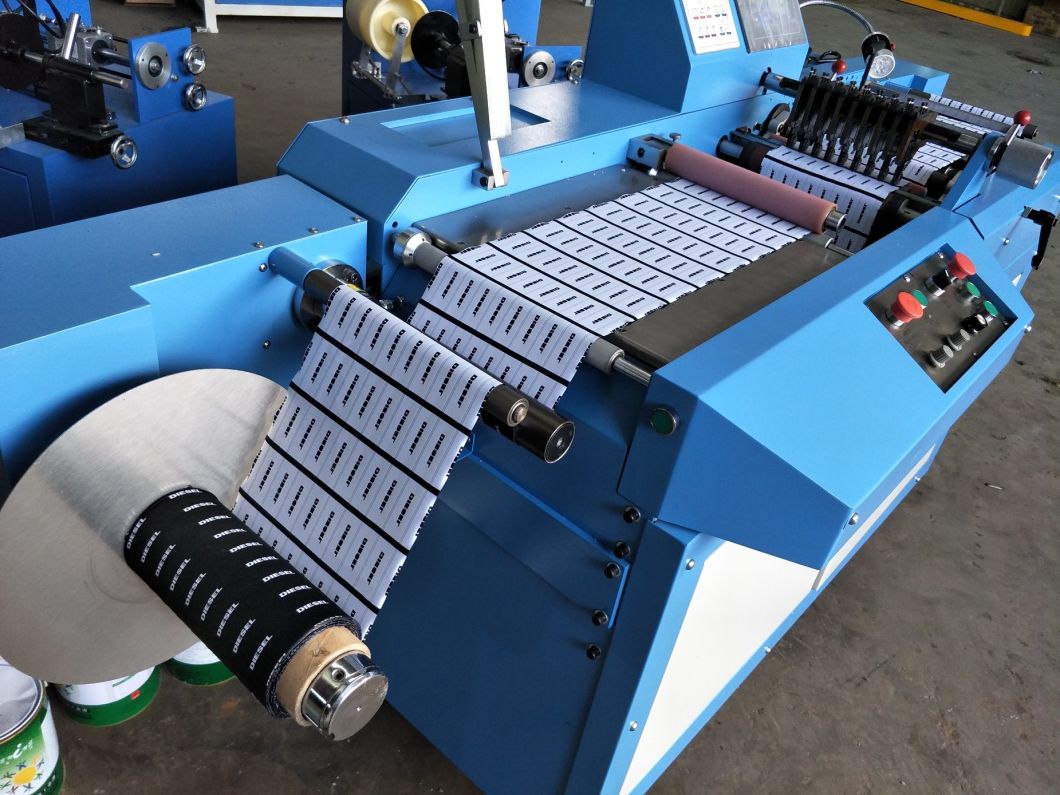

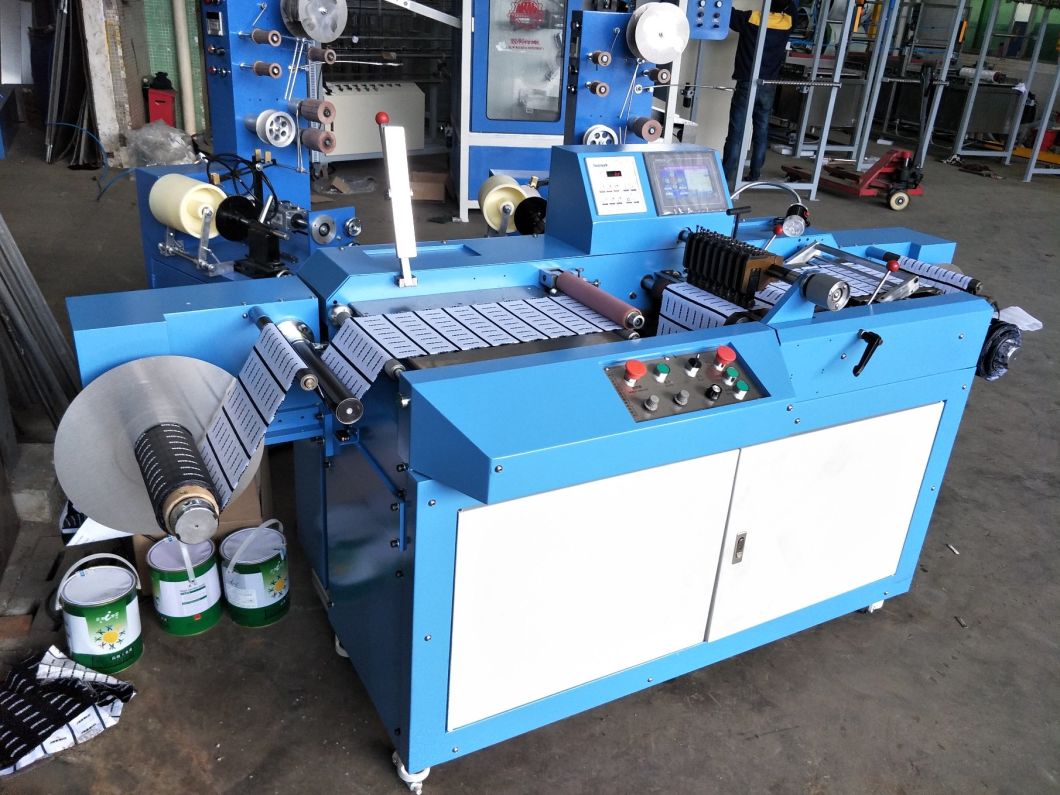

    Content labels ultrasonic slitting machine with high efficiency

    1)Application material: Suitable for slitting any roll Material labels,such as woven labels, metal labels and so on.
    2)Ultrasoinic System Adopted 20KHZ-2000W original Switzerland ultrasonic oscillator combine with 20KHZ-3000W High efficiency Vibrator to get a high speed, high efficiency,High accuracy working performance and slitting edge is soft and smooth without raw edge.
    3)Laid out Original America Rectifying Device to automatic adjust labels running well to make labels slitting work in more accuracy and more smooth to reduce defective products.
    4)Ultrasonic head adopt TITANIUM ALLOY material.
    5)Tension: Laid out Tension controller Magnatic (powder brake)for labels feed in
    6) Laid out PLC and touch screen
    D,Technical Specification:
    1) Max. Slitting width: 25MM
    2) Min. Slitting width: 6MM
    3) MAX. Speed /H.: 16M/Min.
    5) Power:4Kw/220V/3P/50 Hz
    6) Machine size: 2500Mm(L) * 1000 mm(W) * 1250m(H)

    Company Information

    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into
    KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Packaging & Shipping
     Covered by plastic membrane within full container or less container (woodencase)
