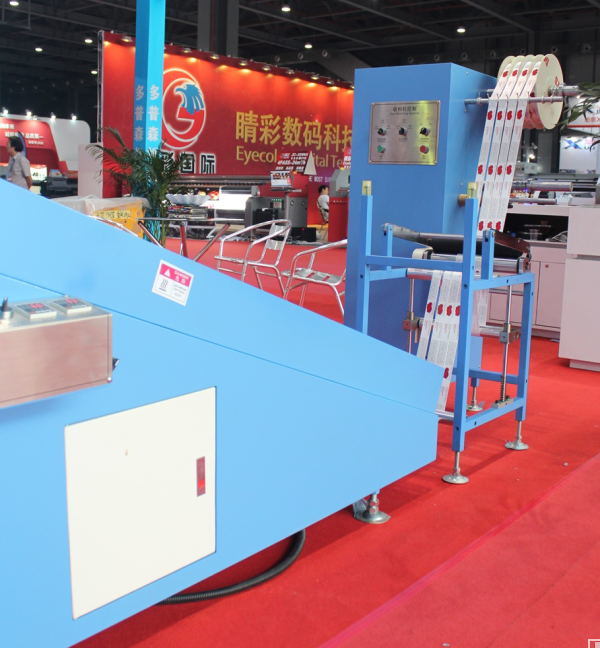

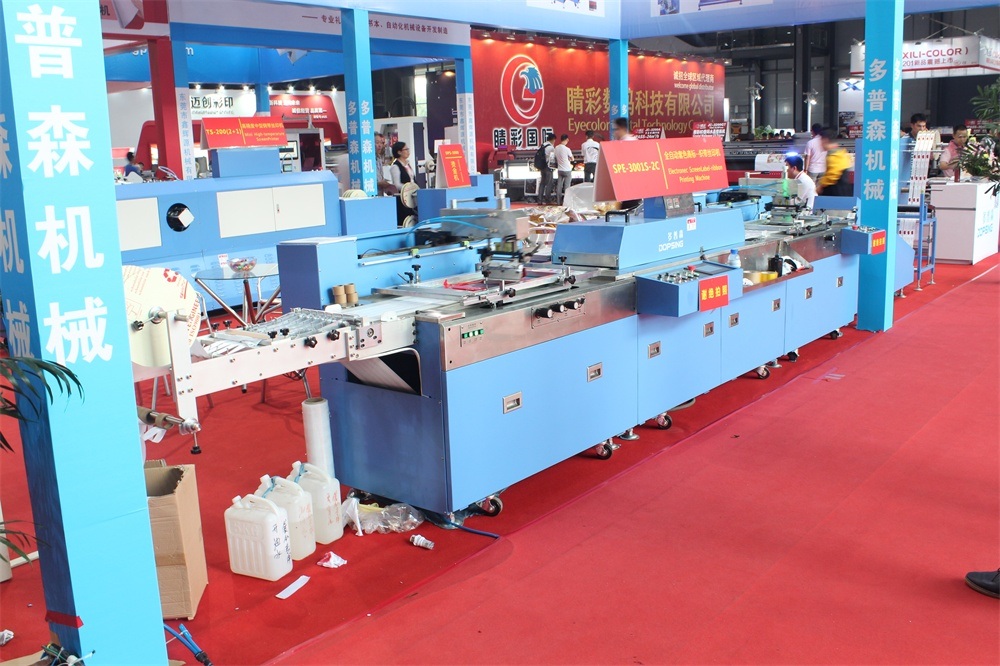

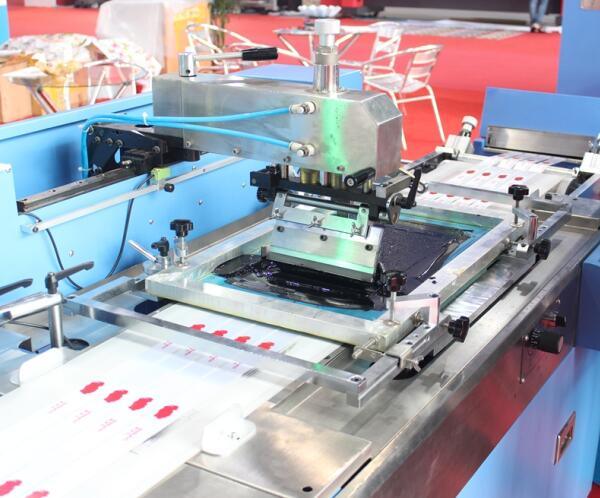

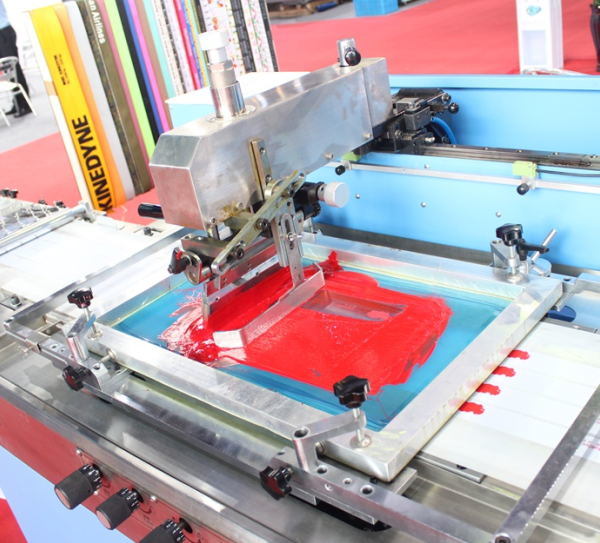

    Cotton Label Automatic Screen Printing Machine with CE Certificate

    Short Description:

    Basic Info Model NO.: SPE-3001S-2C Driven Type: Electric Servo Moto Phase: 3 Phases Frequency: 50/60Hz Max. Printing Area: 300mm*600mm Registration Precision: 0.05mm ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: SPE-3001S-2C
    Driven Type: Electric Servo Moto
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max. Printing Area: 300mm*600mm
    Registration Precision: 0.05mm
    Power: 16-40kw
    Max. Speed: 13m/Line/Min
    Weight: 2000kg
    Dimensions(L*W*H): 7000*1200*1300mm
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

    Cotton Label Automatic Screen Printing Machine with CE Certificate

    Product Description
    It’s a kind of big production all kinds of narrow fabric such as labels, ribbons, elastic tapes ,PET film, laces,lanyards,content label,twill tape,cotton tape, elastic tape, webbing sling, small slice and so on all kinds of roll to roll material single colore Automatic screen printing machine (It’s our patents)

    Servo system
    Two long dryer for big production
    big printing area
    long convey belt to avoid frequancy glue coating.
    dryers laid after printer is more convenient for production and mchine operation and ribbons connection and so on.
    frame can be lift up for frame clean purpose.
    can print elastic tapes after installation of elastic tapes attachment.
    Come into Global market since the year of 2012.

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy webbings and so on.

    A,Description of Item: Automatic single colore screen printing machine
    B,Model:  SPE-3001S-2C
    C,Features & Function
    1)Application material: print any kinds of roll to roll narrow fabric, such as label ribbons, satin ribbons, cotton tapes and so on.
    2)Precisely Print any roll to roll material with width<30CM.
    3)convey: powered by full auto servo Motor .Not by air pressure.
    4)One operator need only
    5)Frame can be automatic lift up for purpose of easy cleaning the screen. Don’t need to take out frame from machine.
    5)Anti-wind device make the ribbon pulled into dryer after printing.
    6)free set up the printing times and the carry times on electronic Dryer lift while stop
    7)Most parts are made in Europe,Japan
    8)controlled by both computer and manual.
    9)Laid out 2 long dryers 1(meter +1.4meter) for bigger production.
    10)controlled by both computer and manual operation.

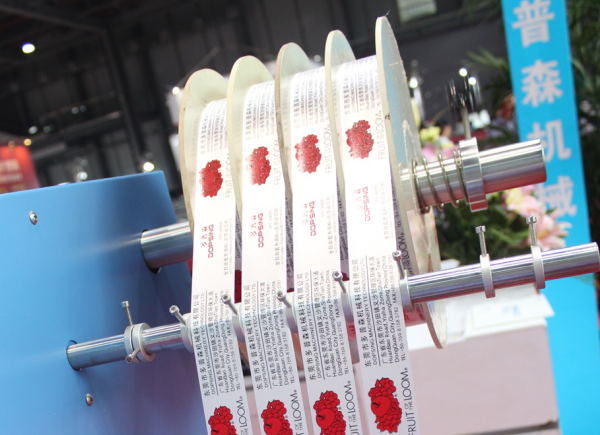

    11)laid out take off device for ribbons automatic winding into rolls.
    D,Technical Specification:
    1)Colore:1C
    2)Max. Printing Area:30CM*60CM
    3)Printing linest: 3LINES/3.5CM
    4)MAX. Speed /H.:600M/Line
    5)Max. Power:16-40Kw/380V/3P/50-60HZ
    6Machine Size:7000*1200*1300mm


    Our Services
    Dopsing automatic screen printing machines widely used,recogonized with
    long term cooperated with many the world biggest and famous narrow
    fabric manufacturers are using our screen printing machines,such as
    PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes
    manufacturer STRETCHLINE and so on.

    Company Information
    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Packaging & Shipping
    Covered by plastic membrane within full container or less container
    (woodencase)
