    Economic Polyester Ribbons Continuous Dyeing&Finishing Machine with High Temp

    Short Description:

    Basic Info Model NO.: Kw-812-400 Warranty: 1 Year Customized: Customized Condition: New Type: Dyeing&Finishing Machine Brand Name: Kinwah Model Num...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: Kw-812-400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Type: Dyeing&Finishing Machine
    Brand Name: Kinwah
    Model Number: Kw-812-400
    Place of Origin: Guangdong, China
    Power(W): 55kw
    Dimension(L*W*H): 18000mm * 1000mm* 4000mm
    Weight: 5000kg
    After-Sales Service Provided: Engineers Available to Service Machinery Overseas
    Max Working Temperature: 160-180°c
    Maximum Speed (M): 40 M/Min
    Trademark: KINWAH
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

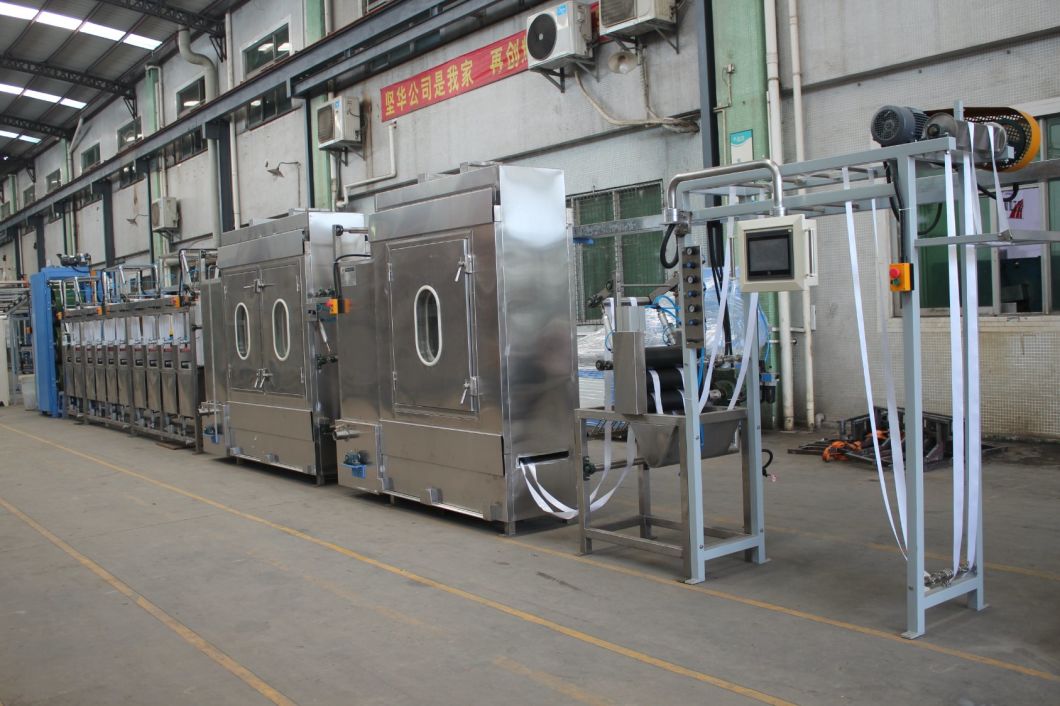

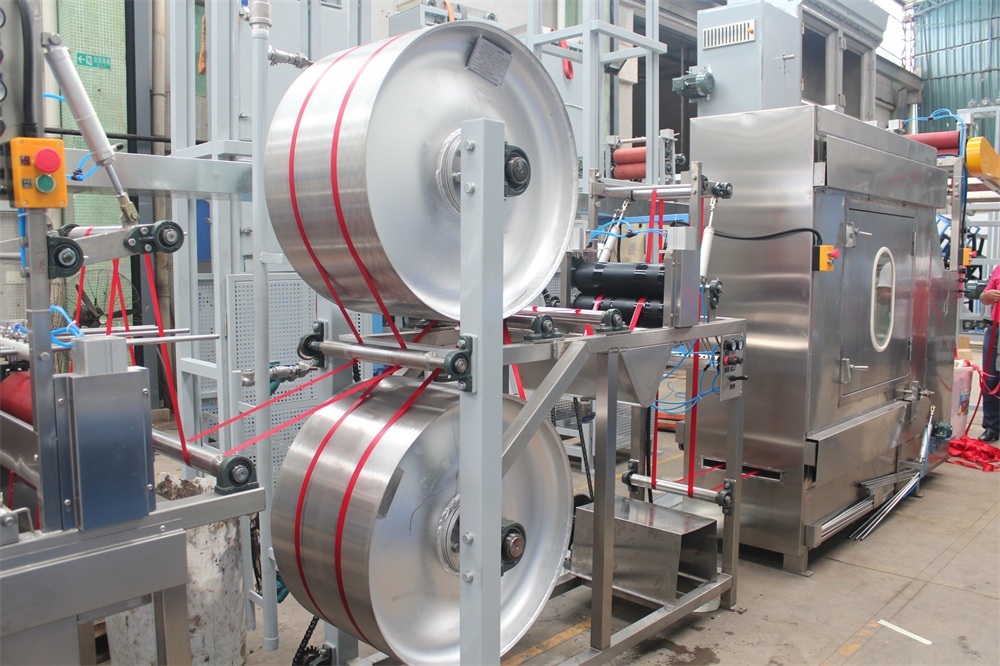

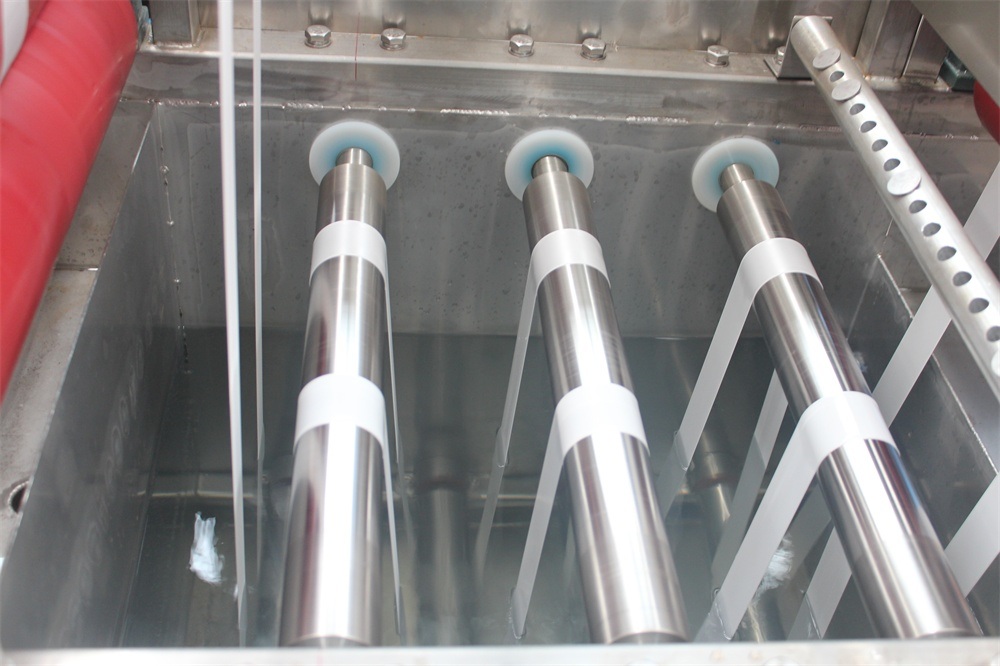

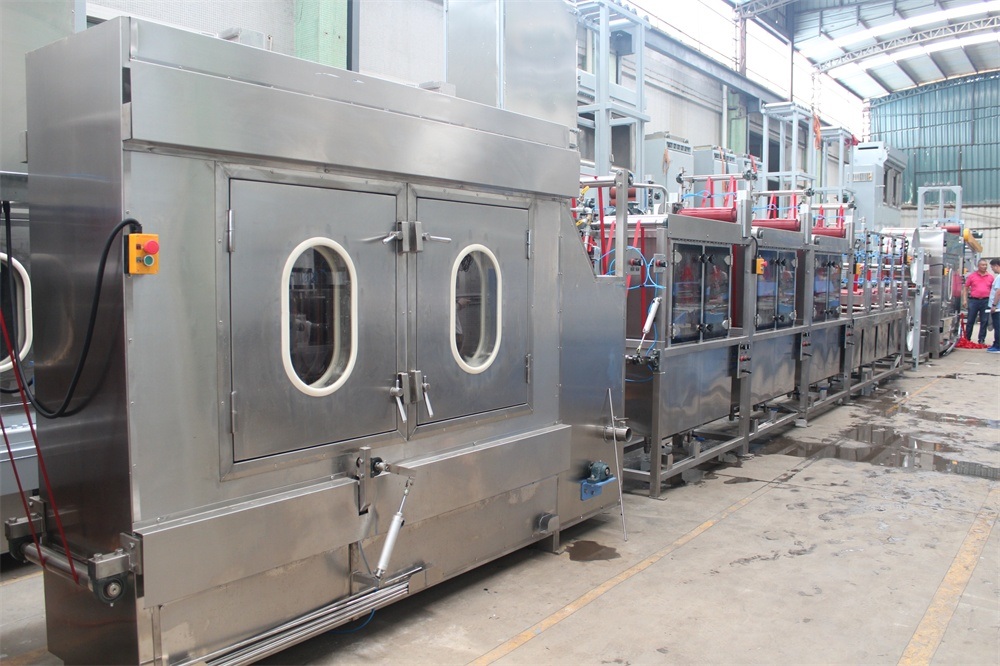

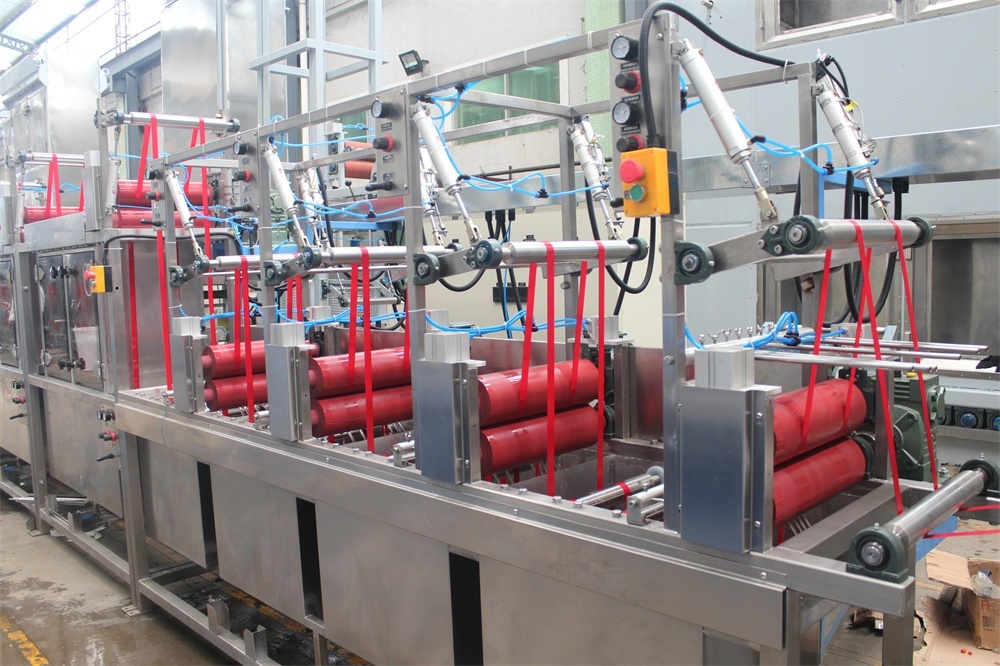

    Economic Polyester Ribbons Continuous Dyeing&Finishing Machine with High Temp

    Item No:KW-812-400
    Size:    25000*1000*2400mm
    This is high speed satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.

    Features:
    1) High efficiency
    2) Power Energy Saving
    3) Our patents.

    4)Application: The dyeing machine is especially used for dyeing polyester satin ribbons,label ribbons made from nylon,polyester with thickness below 1.2mm.

    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Heat System       electrical/LPG or natural gas/steam
    Working Width(mm)  200/400/600
    Thermofixation Chamber Tape Content(m) 45/60/80/90
    Maximun Speed(m)   15/30/40
    Maximun Number(m)  6/10/20
    Control system        Manual/Computer control(PLC&Touch screen)
    Processes: Feed in-Pre washing-Pre dryer-dyeing groove-Infrared pre drying-thermofixation-washing tank-chemical groove-drying&finishing unit-cooling system-take off

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.
