    Factory Cheap Hot Clothing Labels Screen Printing Machine - Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah

    Short Description:

    Basic Info Model NO.: SPE-3000 Main Part Material: Stainless Steel Driven Type: Electric Gross Power: 6-40kw Phase: 3 Phases Frequency: 50/60Hz Printing...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    "Quality initially, Honesty as base, Sincere company and mutual profit" is our idea, in order to create repeatedly and pursue the excellence for 8 Drums Webbings Starching And Finishing Machine , Woven Labels Silk Screen Printing Machine , Bag Belt Starching And Finishing Machine , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
    Factory Cheap Hot Clothing Labels Screen Printing Machine - Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah Detail:

    Basic Info

    Model NO.: SPE-3000
    Main Part Material: Stainless Steel
    Driven Type: Electric
    Gross Power: 6-40kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Printing Area: 280*580mm
    Printing Linest: 6lines/Time
    Max Speed: 12m/Min/Line
    Registration Precision: 0.05mm
    Printing Side: Single/Double Sides
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China(Mainland)
    HS Code: 8443192290

    Product Description

    Automatic Multi-Colors Lace Screen Printing Machine

    3Colors Labels silk screen printing machine with CE Certificate


    Product Description

     DOPSING SPE3000S,



    Servo system +Sensor+Screw Rod+Tension Controller

    Muti-color print 1C-8C

    single side or double side printing

    Come into Global market since the year of 2003.



    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.



    Total Colors

    Max Printing Area

    Registration Precision

    Printing Speed

    Max.Power

    Dimension




    2 C

    300X600mm

    0.05mm

    10m/min

    16KW/380V/70A

    9500X1000X1300mm




    3 C

    300X600mm

    0.05mm

    10m/min

    21KW/380V/80A

    12500X1000X1300mm




    4 C

    300X600mm

    0.05mm

    10m/min

    25KW/380V/100A

    15500X1000X1300mm




    5 C

    300X600mm

    0.05mm

    10m/min

    32KW/380V/120A

    18500X1000X1300mm




    6 C

    300X600mm

    0.05mm

    10m/min

    40KW/380V/150A

    21500X1000X1300mm






    Model: SPE-3000S-3C
    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
    2)Over printing for more colors, it can print 5C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.
    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.
    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.

    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
    Your staffs until they master the machine. All of this is free.



    Our Services

    Dopsing automatic screen printing machines are widely used,recogonized
    with long term cooperated with many partners.the world biggest and
    famous narrow fabric manufacturers are using our screen printing
    machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
    Elastic tapes manufacturer STRETCHLINE and so on.



    Company Information

    Dopsing Machinery Enterprise is subsidiary to KINWAH GROUP which emerged

    into the Asia biggest narrow fabric continuous dyeing and finishing
    machines manufacturer DONGGUAN CITY KINWAH MACHINERY CO.,LTD in 2011.

    Dopsing has specialized in developping &researching, manufacturing
    narrow fabric screen printing machines more than 10years, The FIRST SET
    FULL AUTOMATIC electronic screen printing machine for narrow fabric IN
    CHINA was born in Dopsing(former name is LEADTECH which is belong to
    LEADER GROUP COMPANY In HK ).

    it has gained over than 10 patents from teneration 1 to generation 3 of
    computerized screen printing machine. it enjoyed the world advanced
    technology in auto screen printing machines field.

    Packaging & Shipping

    Covered by plastic membrane within full container or less container

    (woodencase)

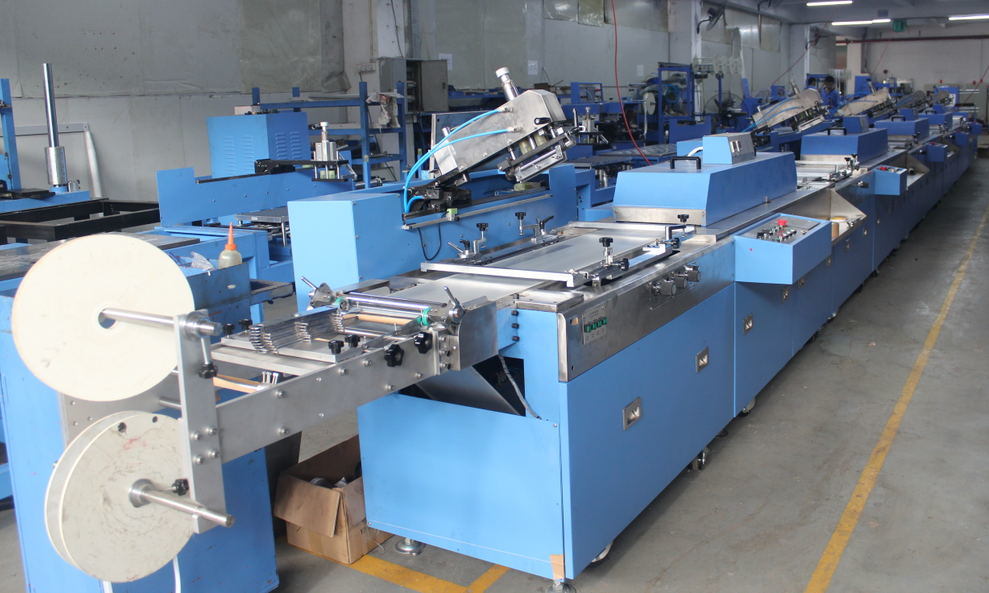

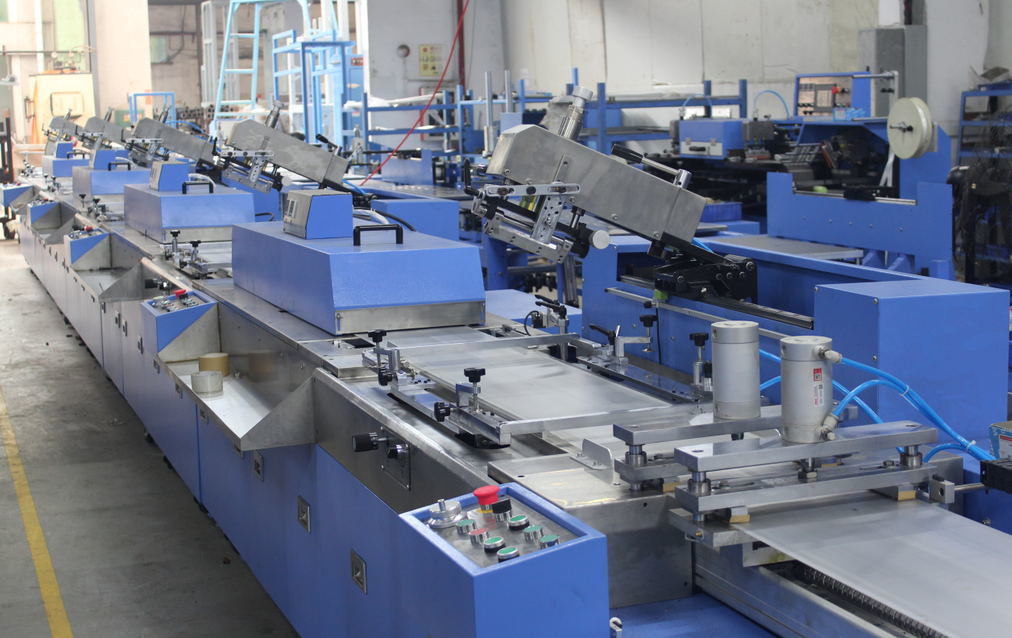

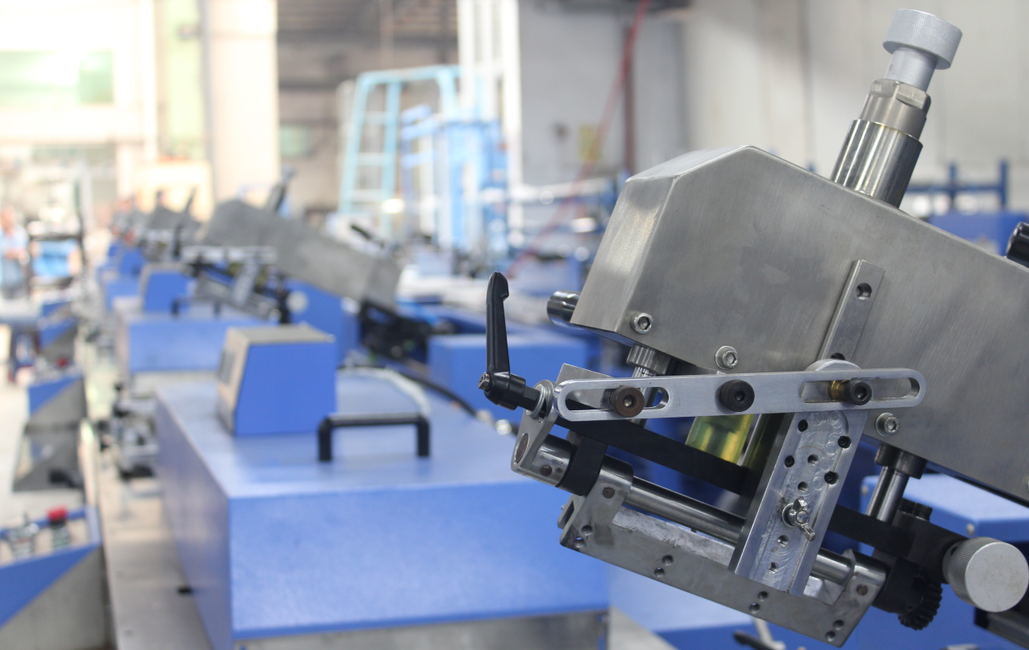

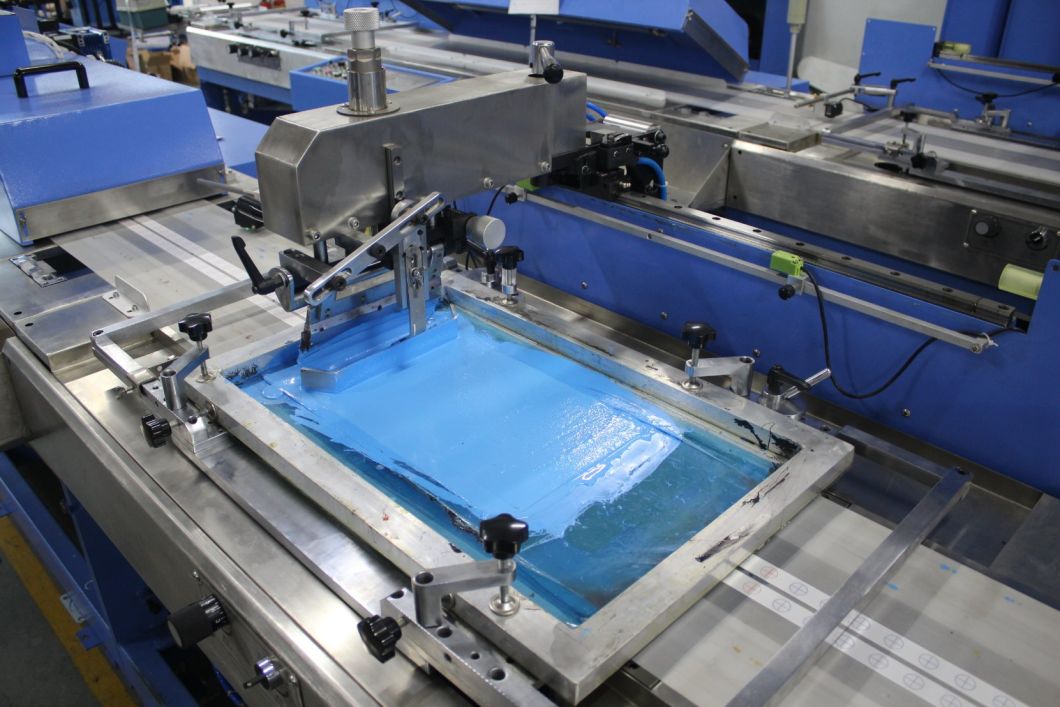

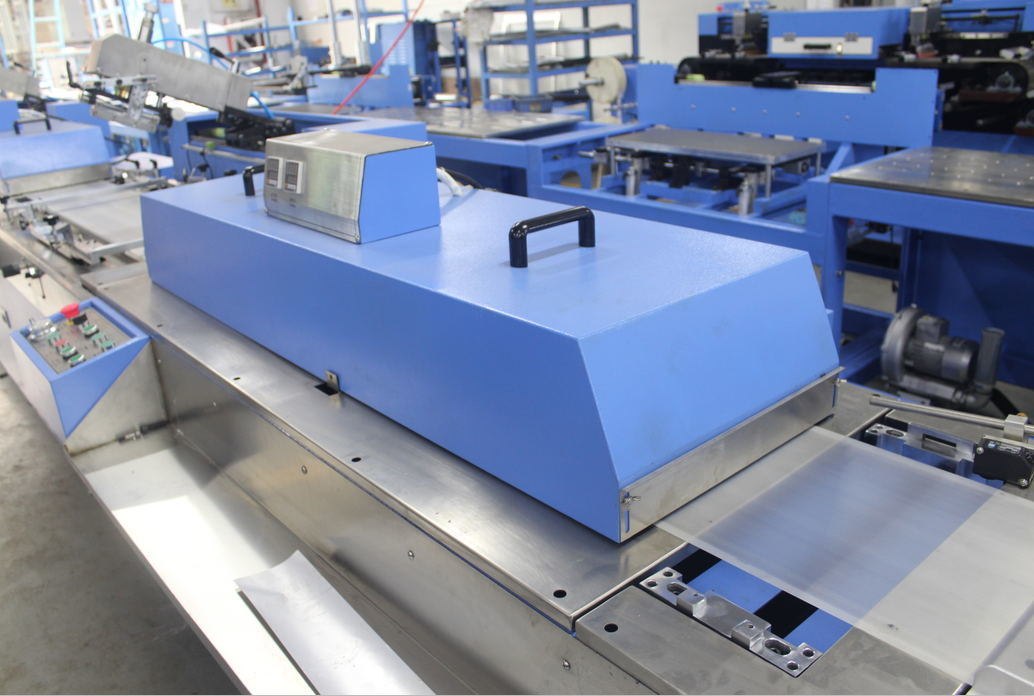

    Automatic Multi-Colors Lace Screen Printing Machine
    Automatic Multi-Colors Lace Screen Printing Machine
    Automatic Multi-Colors Lace Screen Printing Machine
    Automatic Multi-Colors Lace Screen Printing Machine
    Automatic Multi-Colors Lace Screen Printing Machine
    Automatic Multi-Colors Lace Screen Printing Machine



    Product detail pictures:

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures

    Factory Cheap Hot Clothing Labels Screen Printing Machine -
 Automatic Multi-Colors Lace Screen Printing Machine – Kin Wah detail pictures
