factory customized Atuomatic Screen Machine - Multilines Bag Belts Continuous Dyeing Machine with Large Capacity – Kin Wah

Short Description:

Basic Info Model NO.: KW-800-XB400 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Main Part Material: Stainless Steel, Iron, Carbon Steel etc ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

With our excellent administration, strong technical capability and strict excellent control method, we carry on to offer our clients with responsible good quality, reasonable costs and great companies. We intention at becoming considered one of your most responsible partners and earning your pleasure for Sling Webbings Cutting Machine , Lifting Webbings Continuous Dyeing Machine , Organza Ribbons Automatic Screen Printing Machine , Our final goal is "To try the best, To be the Best". Please feel free to contact with us if you have any requirements.

factory customized Atuomatic Screen Machine - Multilines Bag Belts Continuous Dyeing Machine with Large Capacity – Kin Wah Detail:

Basic Info

Model NO.: KW-800-XB400

Warranty: 1 Year

Customized: Customized

Condition: New

Machine Type: Dyeing&Finishing Machine

Main Part Material: Stainless Steel, Iron, Carbon Steel etc

Driven Type: Electirc

Power(W): 30kw

Phase: 3 Phases

Frequency: 50/60Hz

Max Working Temperature: 220°c

Heating System: Electrical/LPG or Natural Gas

Max Speed: 20m/Min

Drying Type: Hot Air

Trademark: KINWAH

Transport Package: Full Container or Less Container with Plastic Film

Specification: CE certification

Origin: China

HS Code: 8443192290

Product Description

Multilines Bag Belts Continuous Dyeing Machine with Large Capacity

Item No: KW-800-XB400
Size:    18000*1000*1800mm
This is high speed luggage&Suitcase belts/webbing continuous dyeing machines for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings etc.

Features:
1) High efficiency
2) Power Energy Saving
3) Our patents.

4)Application: The dyeing machine is especially used for
Safty webbings,automobile safty belts,luggage&Suitcase belts/lanyard ribbons,satin ribbons with thickness below 1.5mm.

5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

Heat System       electrical/LPG or natural gas/steam
Working Width(mm) 200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m)   15/30/40
Maximun Number(m) 6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Multilines Bag Belts Continuous Dyeing Machine with Large Capacity

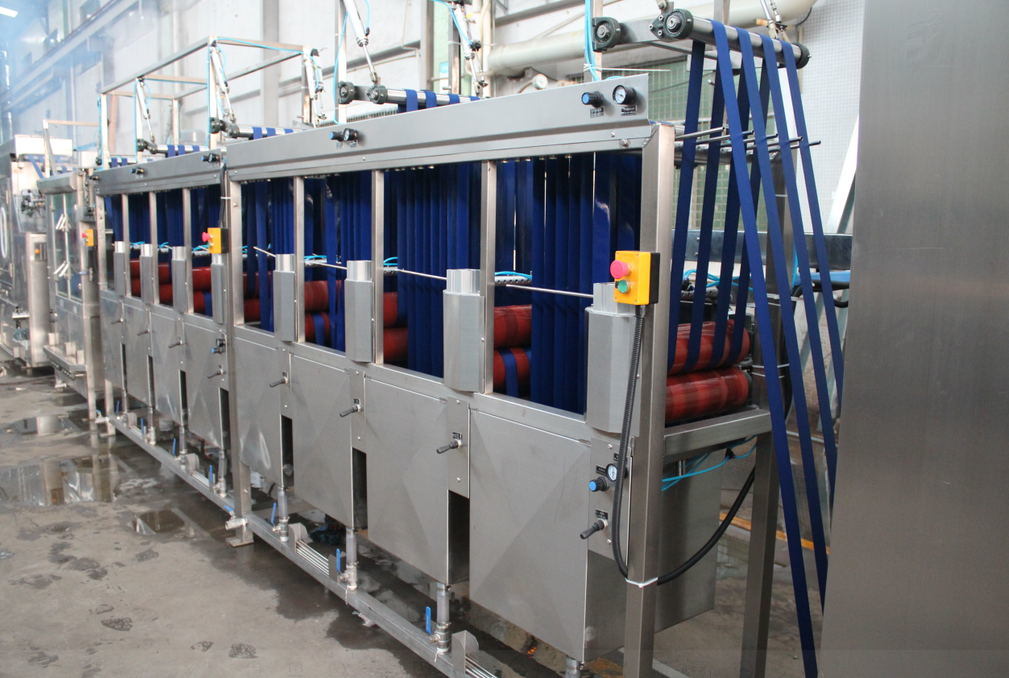

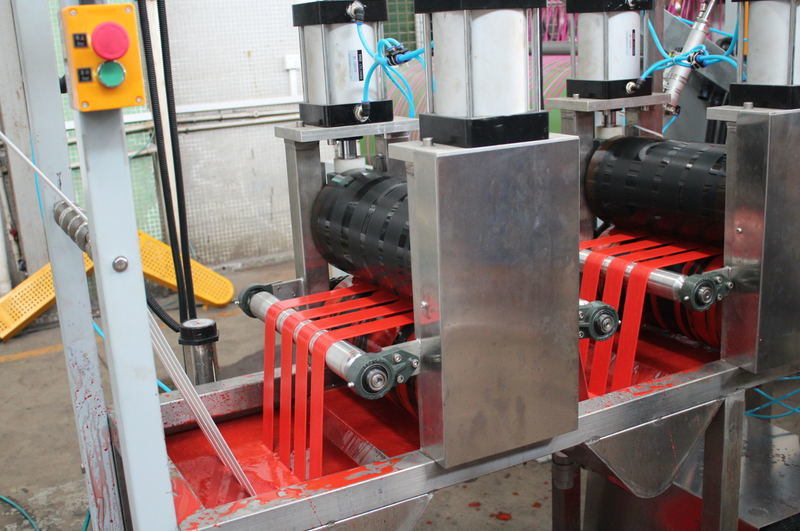

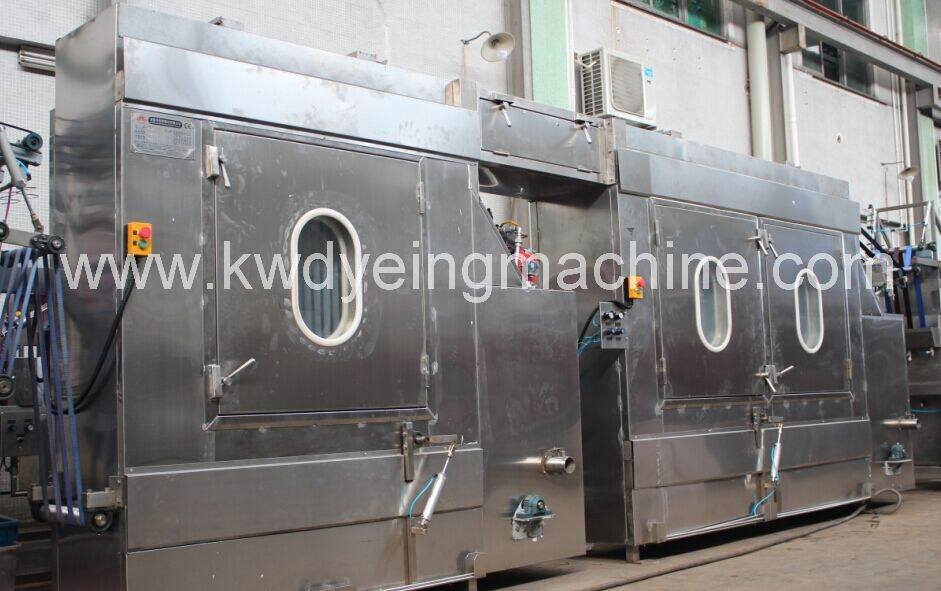

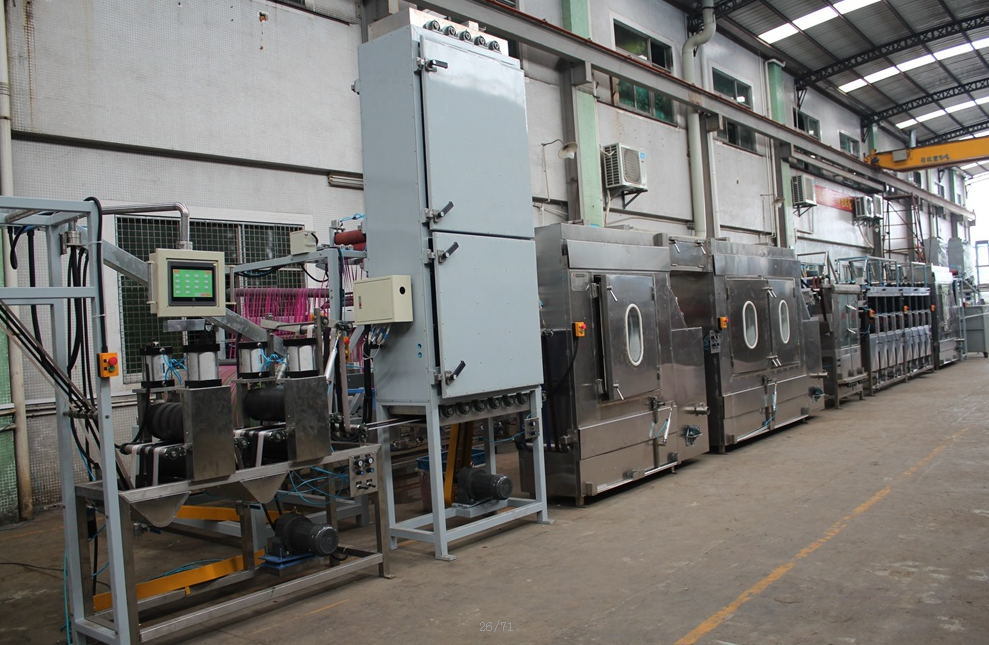

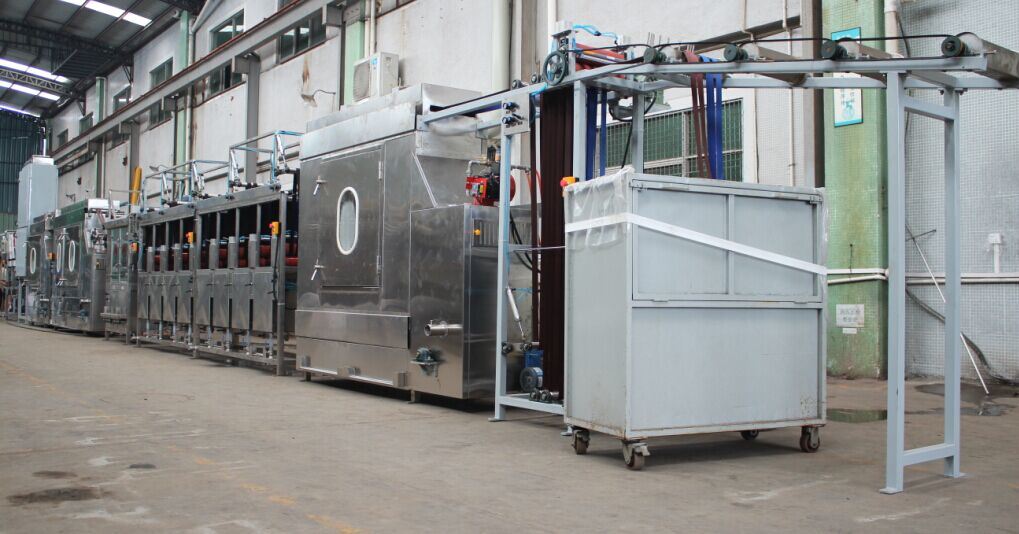

Product detail pictures:

The very rich projects management experiences and one to one service model make the high importance of business communication and our easy understanding of your expectations for factory customized Atuomatic Screen Machine - Multilines Bag Belts Continuous Dyeing Machine with Large Capacity – Kin Wah, The product will supply to all over the world, such as: Casablanca , Jersey , Algeria , By continuous innovation, we will present you with more valuable items and services, and also make a contribution for the development of the automobile industry at home and abroad. Both domestic and foreign merchants are strongly welcomed to join us to grow together.
