    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine - Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah

    Short Description:

    Basic Info Model NO.: KW-812-S/D400 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Main Part Material: Stainless Steel,Iron,Carbon Steel etc ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    No matter new buyer or old purchaser, We believe in long expression and trusted relationship for Ds-302a Webbings Automatic Screen Printing Machine , Labels Screen Printing Machine , Twill Tapes Screen Printing Machine , Let's cooperate hand in hand to jointly make a beautiful upcoming. We sincerely welcome you to pay a visit to our company or speak to us for cooperation!
    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine - Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah Detail:

    Basic Info

    Model NO.: KW-812-S/D400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Main Part Material: Stainless Steel,Iron,Carbon Steel etc
    Driven Type: Electric
    Power: 38kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Heating System: Electrical&LPG or Natural Gas&Steam
    Max Speed: 40m/Min
    Drying Type: Hot Air
    Application: Satin Ribbon,Polyester Ribbon,Label Ribbon
    Trademark: KINWAH
    Transport Package: Wooden Box for LCL Film for FCL
    Specification: CE certification
    Origin: Guangdong, China
    HS Code: 84514000

    Product Description

    Satin Ribbons Continuous Dyeing&finishing Machine with High temp

    Item No:KW-812-400
    Size:    25000*1000*2400mm
    This is high speed satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.

    Features:
    1) High efficiency
    2) Power Energy Saving
    3) Our patents.

    4)Application: The dyeing machine is especially used for dyeing polyester satin ribbons,label ribbons made from nylon,polyester with thickness below 1.2mm.

    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Heat System       electrical/LPG or natural gas/steam
    Working Width(mm)  200/400/600
    Thermofixation Chamber Tape Content(m) 45/60/80/90
    Maximun Speed(m)   15/30/40
    Maximun Number(m)  6/10/20
    Control system        Manual/Computer control(PLC&Touch screen)
    Processes: Feed in-Pre washing-Pre dryer-dyeing groove-Infrared pre drying-thermofixation-washing tank-chemical groove-drying&finishing unit-cooling system-take off

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.

    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp
    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp
    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp
    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp
    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp
    Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp

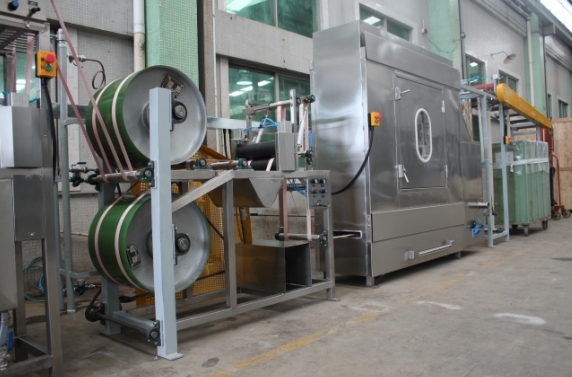

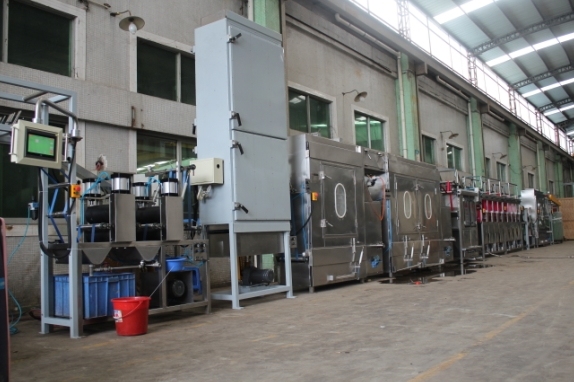

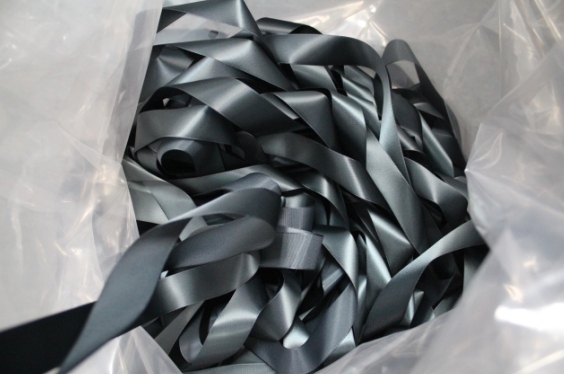

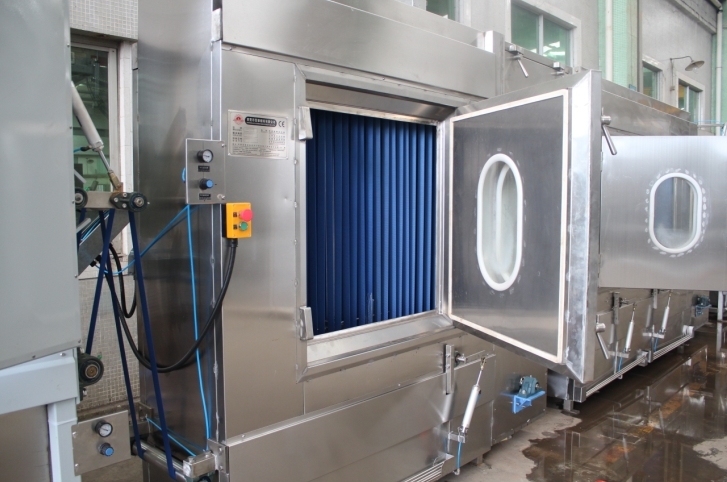

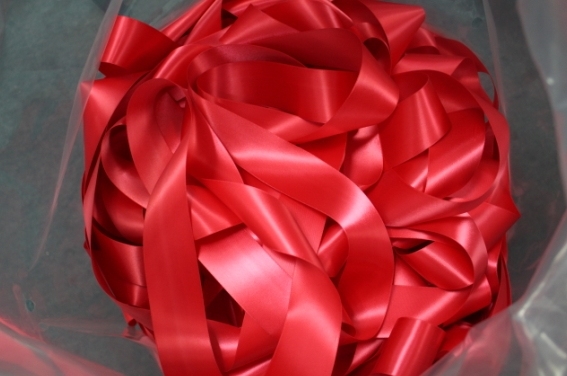

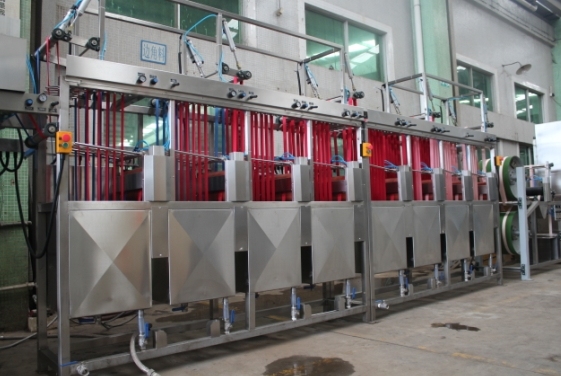

    Product detail pictures:

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures

    factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine -
 Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah detail pictures


    Related Product Guide:
    Monotech Systems launches Colornovo UV inkjet press | Polyester Satin Ribbons Small Continuous Dyeing Machine
    Inventory Tags Market by Label Type, Printing Technology with Top Companies- Avery Dennison Corporation, 3M Company, Zebra Technologies Corporation | Labels Screen Printer

    We depend on sturdy technical force and continually create sophisticated technologies to meet the demand of factory customized Polyester Satin Ribbons Sample Dyeing And Finishing Machine - Satin Ribbons Continuous Dyeing&Finishing Machine with High Temp – Kin Wah, The product will supply to all over the world, such as: Guinea , Tanzania , Belgium , With top quality products, great after-sales service and warranty policy, we win trust from many overseas partner, many good feedbacks witnessed our factory's growth. With full confidence and strength, welcome customers to contact and visit us for future relationship.
  • This is the first business after our company establish, products and services are very satisfying, we have a good start, we hope to cooperate continuous in the future!
    5 Stars By Rebecca from Adelaide - 2015.02.08 16:45
    A nice supplier in this industry, after a detail and careful discussion, we reached a consensus agreement. Hope that we cooperate smoothly.
    5 Stars By Faithe from Los Angeles - 2015.05.15 10:52
