Factory For Polyester Cord Strap - Heavy Duty Webbings Automatic Cutting and Winding Machine Supplier – Kin Wah

Product Description
KW-820-160L , It’s a kind of cutting and winding machinery for all kinds of heavy duty webbings such as sling webbings,lashing straps/tie down straps, safety belts,luggage belts/webbings,textile lift sling webbings.
Servo system
U box design for feed in safely
The built-in Heating system makes thick material can be cut easier
precisely cutting area and length.
widely used for cutting any heavy duty webbings
Webbing’s rotating speed will be different according to its own diameter increase
Come into Global market since the year of 2012.

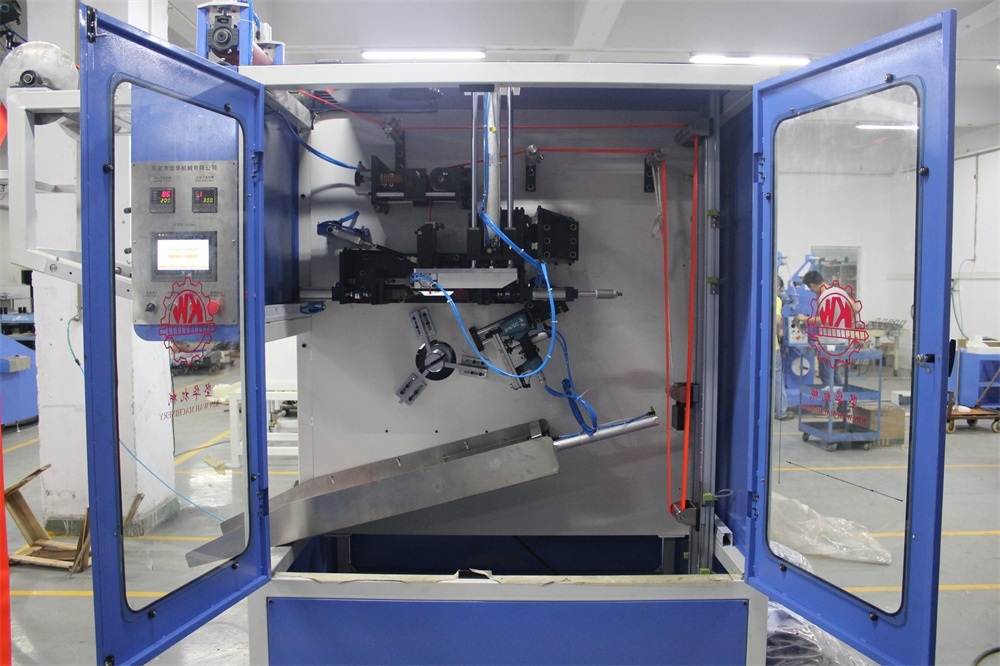

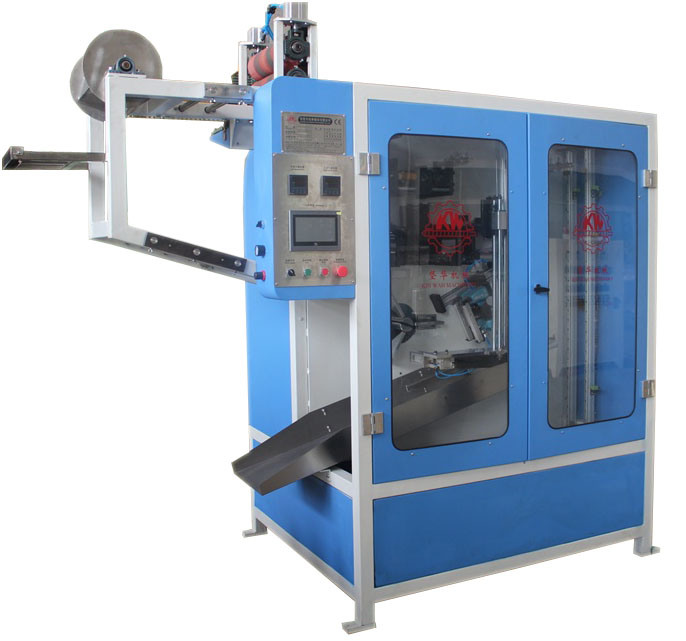

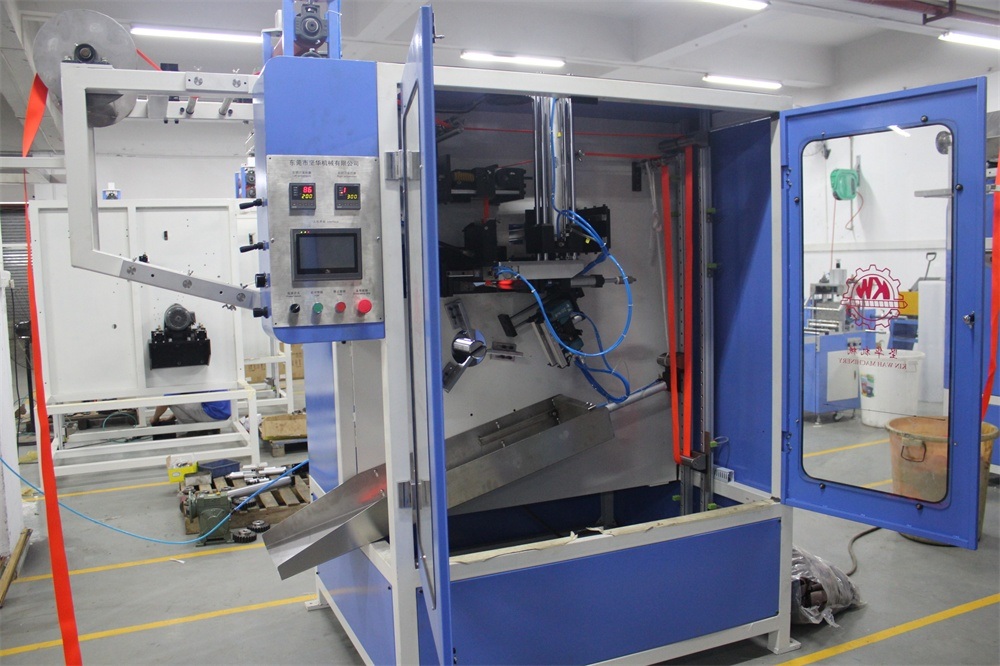

A,Description of Item:  Sling webbings automatic cutting and winding machine
B,Model:  KW-820-160L
C,Features & Functions
1)Application material: cutting any kinds of heavy duty webbings such as sling webbings,lashing straps/tie down straps, safety belts,luggage belts/webbings,textile lift sling webbings
.
2)Precisely cutting any roll to roll material with width<100mm.
3)convey: powered by full auto servo Motor .Not by air pressure.
4)One operator need only
5)Cutter can be automatic lift up for purpose of easy cleaning.
6)Anti-slip device make the webbings passed precisely through cutter before cutting.
7)freely set up the cutting length and the times gap on the screen.
8)controlled by both computer and manual.
11)After cutting device for webbings automatic winding into rolls.
D,Technical Specification:
1)Cutter:1 Piece
2)Max. Cutting Area: 50mm/line
3)Cutting linest: 2LINES/TIME
4)MAX. Speed /H.:2m/s/Line
5)Max. Power:1.5Kw/380V/3P/50-60HZ
6Machine Size: 7000*800*1800mm

Our Services
Dopsing automatic screen printing machines are widely used,recogonized with
long term cooperated with many partners,the world biggest and famous narrow
fabric manufacturers are using our screen printing machines,such as
PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes
manufacturer STRETCHLINE and so on.

Company Information
DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved intoKINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.

Packaging & Shipping
Covered by plastic membrane within full container or less container (woodencase)
