Short Description:

Basic Info Model NO.: Kw-800-Xb400-H Warranty: 1 Year Customized: Customized Condition: New Brand Name: Kinwah Machine Type: Continuous Dyeing&Finishing Machine ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

The business keeps to the operation concept "scientific management, premium quality and efficiency primacy, customer supreme for Polyester Tapes Automatic Screen Printing Machine , Tapes Screen Printing Machine , Elastic Tapes Pre-Shrinking Machine , We can do your customized order to meet your own satisfactory! Our company sets up several departments, including production department, sales department, quality control department and sevice center, etc.

Factory Price Single Color Care Labels Screen Printing Machine Ds-301 - Bag Belts Continuous Dyeing&Finishing Machine with High Standard – Kin Wah Detail:

Basic Info

Model NO.: Kw-800-Xb400-H

Warranty: 1 Year

Customized: Customized

Condition: New

Brand Name: Kinwah

Machine Type: Continuous Dyeing&Finishing Machine

Place of Origin: Guangdong, China

Model Number: Kw-800-Xb400-H

Power(W): 30kw

Dimension(L*W*H): 15000*1000*1800mm

Weight: 3ton

After-Sales Service Provided: Engineers Available

Phase: 3 Phases

Frequency: 50/60Hz

Trademark: kinwah

Transport Package: Wooden Box

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 8443192290

Product Description

Bag Belts Continuous Dyeing&Finishing Machine with large capacity

Item No:KW-800-XB400-H
Size:    15000*1000*1800mm
This is high speed luggage&Suitcase belts/webbing continuous dyeing machines for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings etc.

Features:
1) High efficiency
2) Power Energy Saving
3) Our patents.

4)Application: The dyeing machine is especially used for
luggage&Suitcase belts/webbing continuous dyeing machines
for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings with thickness below 1.5mm.

5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

Heat System       electrical/LPG or natural gas/steam
Working Width(mm) 200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m)   15/30/40
Maximun Number(m) 6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-hot air chamber drying&finishing unit-cooling system-take off

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Bag Belts Continuous Dyeing&Finishing Machine with High Standard

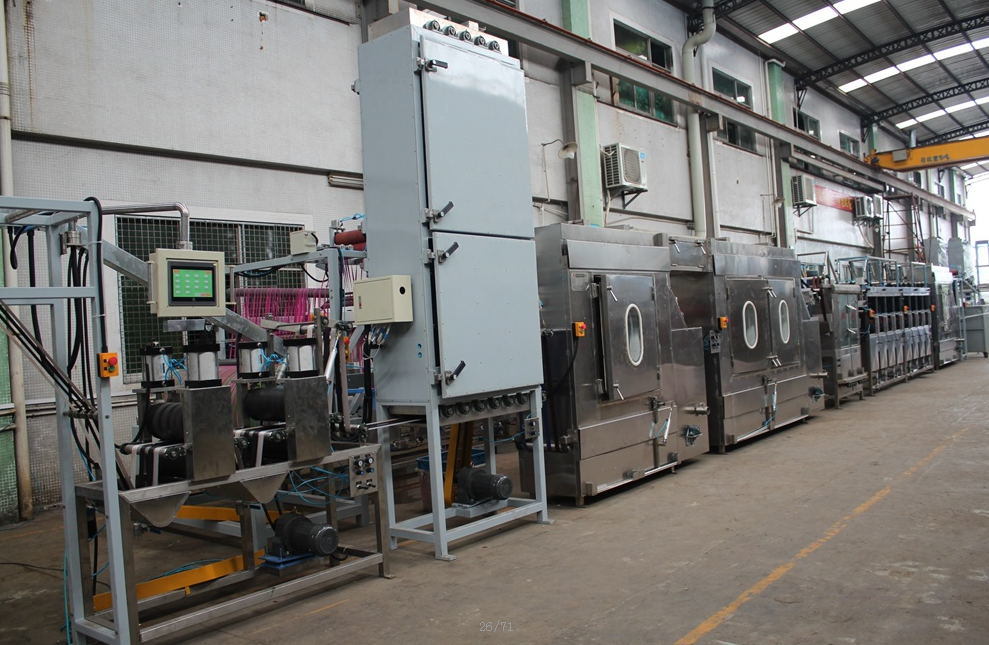

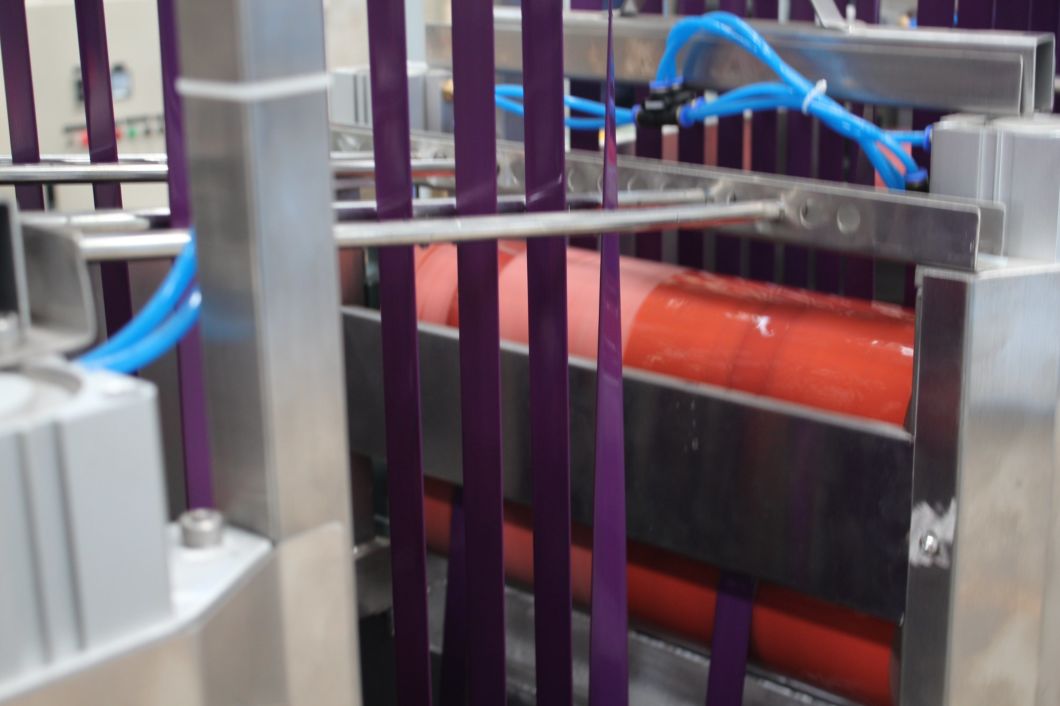

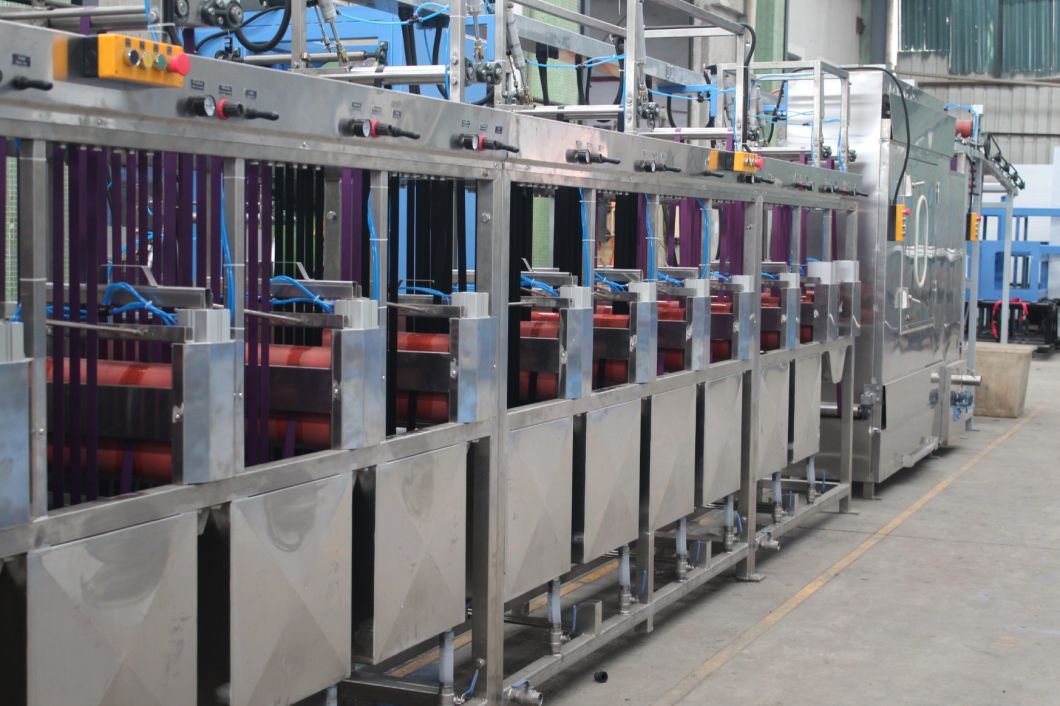

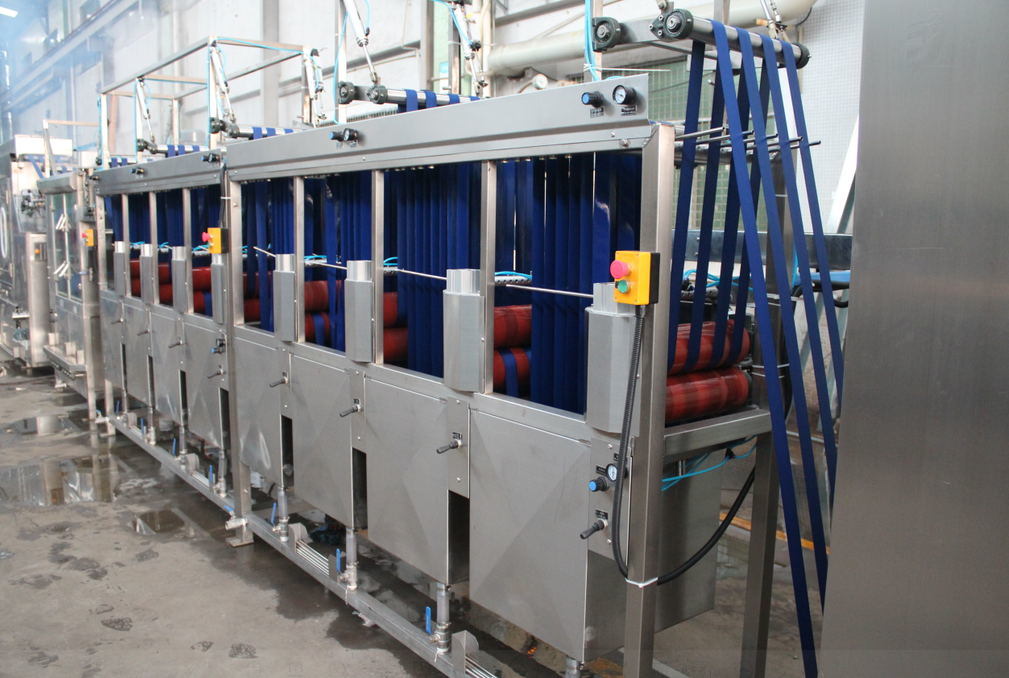

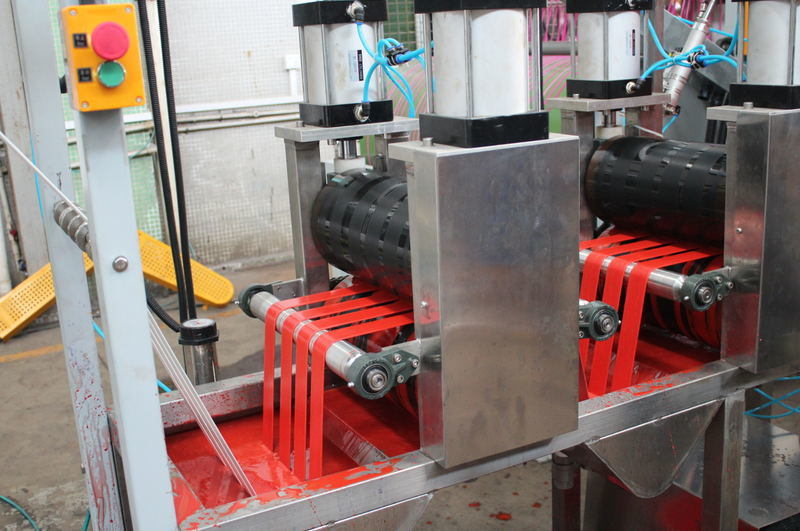

Product detail pictures:

We have our own sales team, design team, technical team, QC team and package team. We have strict quality control procedures for each process. Also, all of our workers are experienced in printing field for Factory Price Single Color Care Labels Screen Printing Machine Ds-301 - Bag Belts Continuous Dyeing&Finishing Machine with High Standard – Kin Wah, The product will supply to all over the world, such as: Kyrgyzstan , Wellington , Greece , Our R&D department always designs with new fashion ideas so we could introduce up-to-date fashion styles every month. Our strict production management systems always ensure stable and high quality products. Our trade team provides timely and efficient services. If there are any interest and inquiry about our products, please contact us in time. We would like to establish a business relationship with your honored company.
