    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine - Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah

    Short Description:

    Basic Info Model NO.: SPE-3000S-3C Machine Type: Screen Printing Machine Main Part Material: Stainless Steel Voltage: 220/380/400V Max. Speed /H: 13m/Line/Min Gross Power: 16-40kw ...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We constantly believe that one's character decides products' high quality, the details decides products' high-quality ,together with the REALISTIC,EFFICIENT AND INNOVATIVE crew spirit for 4 Drums Starching And Finishing Machine , Lanyard Tapes Silk Screen Printing Machine , Roll To Roll Silk Screen Printing Machine , If needed, welcome to help make speak to with us by our web page or cellular phone consultation, we are going to be delighted to serve you.
    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine - Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah Detail:

    Basic Info

    Model NO.: SPE-3000S-3C
    Machine Type: Screen Printing Machine
    Main Part Material: Stainless Steel
    Voltage: 220/380/400V
    Max. Speed /H: 13m/Line/Min
    Gross Power: 16-40kw
    Printing Area: 300mm*600mm
    Dimensions(L*W*H): 7000*1200*1300mm
    Weight: 2000kg
    Registration Precision: 0.05mm
    Application: Roll Materials,Cotton Tapes,Elastic Tapes
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

    Polyester Satin Labels Automatic Screen Printing Machine factory saling

    It can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.
    Model: SPE-3000S-3C
    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c,
    2)Over printing for more colors, it can print 4C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.
    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.
    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.

    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train your staffs until they master the machine. All of this is free.


    Total Colors Max Printing Area Registration Precision Printing Speed Max.Power Dimension

    2 C 300X600mm 0.05mm 10m/min 16KW/380V/70A 9500X1000X1300mm

    3 C 300X600mm 0.05mm 10m/min 21KW/380V/80A 12500X1000X1300mm

    4 C 300X600mm 0.05mm 10m/min 25KW/380V/100A 15500X1000X1300mm

    5 C 300X600mm 0.05mm 10m/min 32KW/380V/120A 18500X1000X1300mm

    6 C 300X600mm 0.05mm 10m/min 40KW/380V/150A 21500X1000X1300mm


    It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.

    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling
    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling
    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling
    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling
    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling
    Polyester Satin Labels Automatic Screen Printing Machine Factory Saling

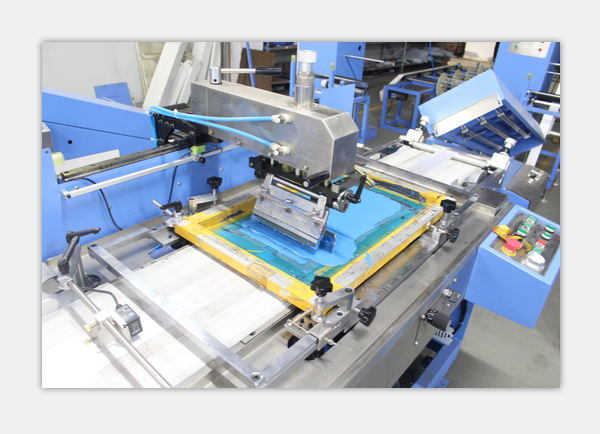

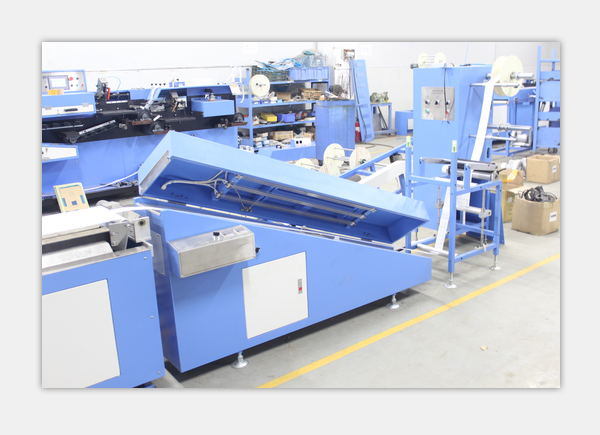

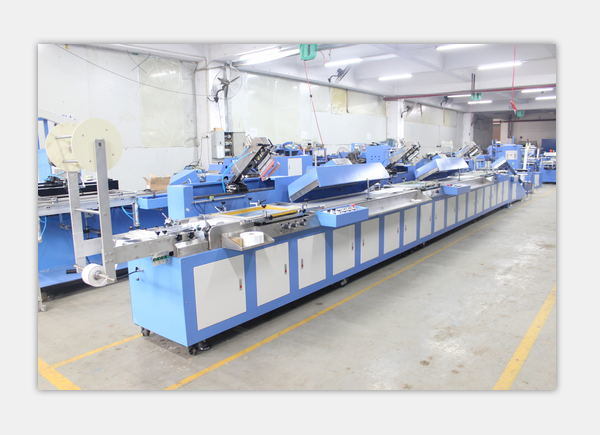

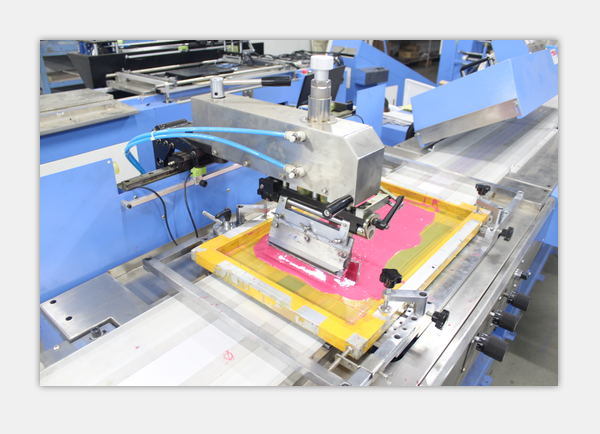

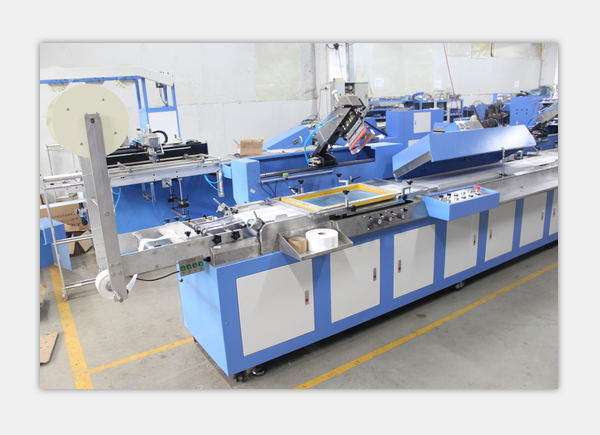

    Product detail pictures:

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures

    Fast delivery Spe-3000s-4c Automatic Label Ribbons Screen Printing Machine -
 Polyester Satin Labels Automatic Screen Printing Machine Factory Saling – Kin Wah detail pictures
