Basic Info
Product Description
It can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

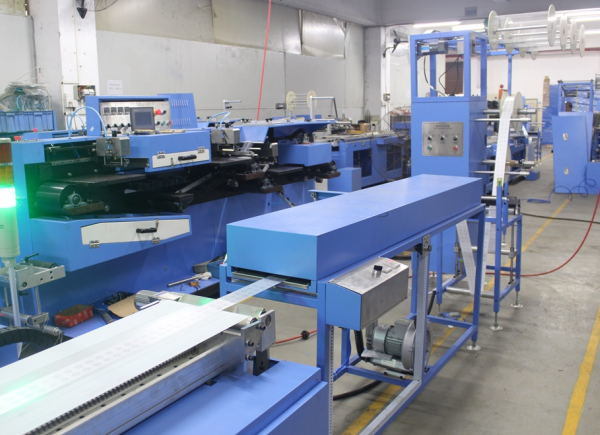

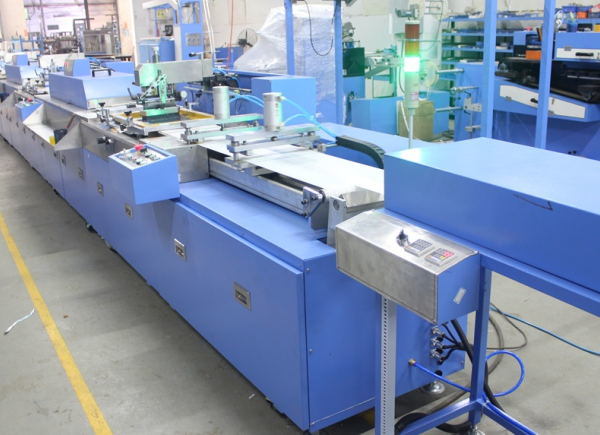

Model: SPE-3000S-3C
Precise printing

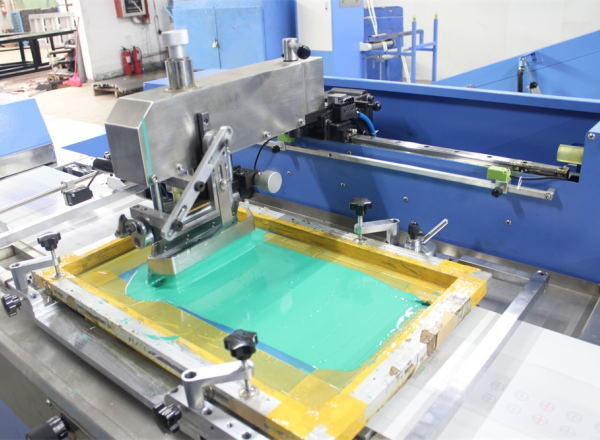

1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
2)Adjusting printing position by Auto Sensors system instead of handcraft.
3)Tension controller and the brake make the conveying exactly
Functions:
1)Muti-color printing, colours: This model has 1c, 2c, 3c
2)Over printing for more colors, it can print 4C~8C too
3)Both sides printing several trips at one time
4)slice printing
5)Micro adjusting meter for frame adjusting automatically.
6)Anti-wind device makes the ribbon pulled into dryer after printing.
7)Infrared dryer and heater make the any kinds ink dry enough.
8)Free set up the printing times and the carry times on electronic touch screen.

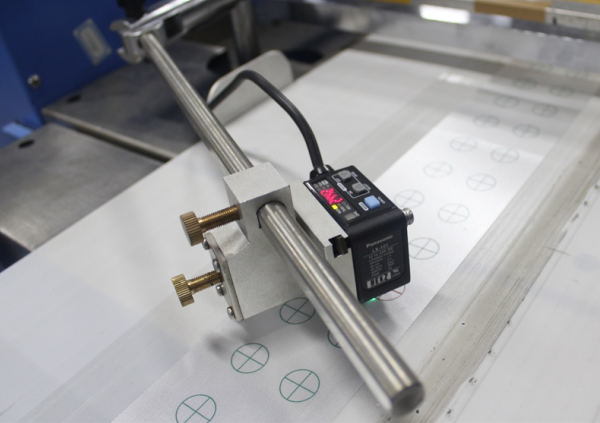

9)Several sensors tracing the situation of the feeding materials.
10)Dryer lift while the machine stopping
11)Most core parts import from Europe&Japan.
Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train your staffs until they master the machine. All of this is free.
| Total Colors | Max Printing Area | Registration Precision | Printing Speed | Max.Power | Dimension | |
| 2 C | 300X600mm | 0.05mm | 10m/min | 16KW/380V/70A | 9500X1000X1300mm | |
| 3 C | 300X600mm | 0.05mm | 10m/min | 21KW/380V/80A | 12500X1000X1300mm | |
| 4 C | 300X600mm | 0.05mm | 10m/min | 25KW/380V/100A | 15500X1000X1300mm | |
| 5 C | 300X600mm | 0.05mm | 10m/min | 32KW/380V/120A | 18500X1000X1300mm | |
| 6 C | 300X600mm | 0.05mm | 10m/min | 40KW/380V/150A | 21500X1000X1300mm | |
It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.
DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.
2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.
