High definition Safety Belts Dyeing And Finishing Machine - 400mm Nylon Elastic Tape Continuous Dyeing Machine with Ce Certificate – Kin Wah

Short Description:

Basic Info Model NO.: KW-807-SJ400-A Warranty: 1 Year Customized: Customized Condition: New Type: Dyeing&Finishing Machine Brand Name: Kinwah Model...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Quality comes first; service is foremost; business is cooperation" is our business philosophy which is constantly observed and pursued by our company for Sling Webbings Automatic Screen Printing Machine , Heavy Duty Webbings Cutting Machine , Tie Down Straps Silk Screen Printing Machine , We appreciate your enquiry and it's our honor to work with every friend worldwide.

High definition Safety Belts Dyeing And Finishing Machine - 400mm Nylon Elastic Tape Continuous Dyeing Machine with Ce Certificate – Kin Wah Detail:

Basic Info

Model NO.: KW-807-SJ400-A

Warranty: 1 Year

Customized: Customized

Condition: New

Type: Dyeing&Finishing Machine

Brand Name: Kinwah

Model Number: Kw-807-Sj400-a

Place of Origin: Guangdong, China

Power(W): 55kw

Dimension(L*W*H): 18000mm * 1000mm* 4000mm

Weight: 5000kg

After-Sales Service Provided: Engineers Available to Service Machinery Overseas

Max Working Temperature: 100°c

Maximum Speed (M): 40 M/Min

Trademark: KINWAH

Transport Package: Wooden Box

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 84514000

Product Description

400mm Nylon Elastic Tape Continuous Dyeing Machine With CE Certificate

Product Description

Item No:KW-807-SJ400-A

Size:15000*2400*1000mm

This isupdated newest elastic tapes continuous dyeing machine

Features:

1)with PLC

2)with J-Box.

3)our patents.

4)it’s the best seller in 2013 .

5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color

and polyester elastic tapes into light color laces.

Item
Heat System	electrical	steam
Working Width(mm)	200	400	600
Thermofixation Chamber Tape Content(m)	45/60	80/90
Maximun Speed(m)	15	20	30
Maximun Number(m)	4	8	12
Control system	Manual/PLC

Option: J-Box Feed in device with individual tapes tension control

Processes: J-Box-Feed in-dyeing padder-Steam chamber-washing tank-Pre-dryer-chemical padder-drying&finishing unit-take off

Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

Our Services

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing
machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP,
BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING
CONCERN, STRETCHLINE, DUGOTEX SO ON.

Company Information

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Packaging & Shipping

Covered by plastic membrane within full container or less container
(woodencase)

400mm Nylon Elastic Tape Continuous Dyeing Machine with Ce Certificate

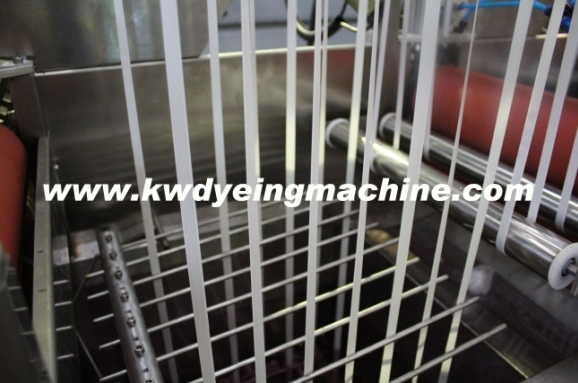

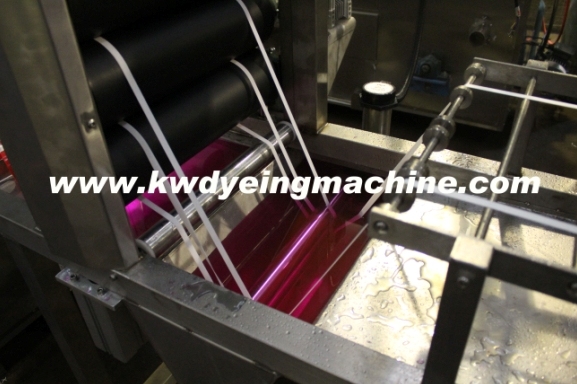

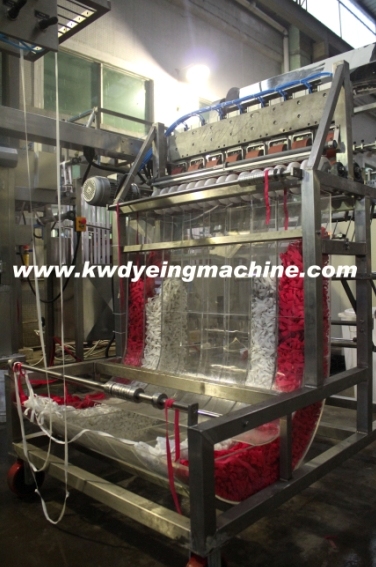

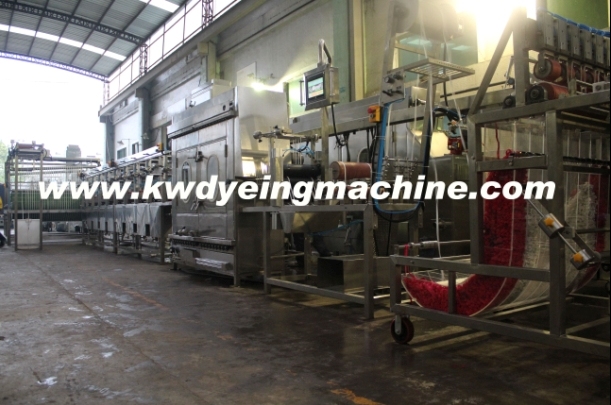

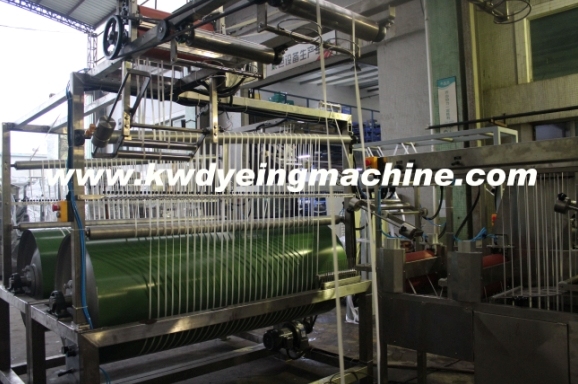

Product detail pictures:

Our team through professional training. Skilled professional knowledge, strong sense of service, to meet the service needs of customers for High definition Safety Belts Dyeing And Finishing Machine - 400mm Nylon Elastic Tape Continuous Dyeing Machine with Ce Certificate – Kin Wah, The product will supply to all over the world, such as: Colombia , Indonesia , Greece , We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade products in combination with our excellent pre-sale and after-sales service ensures strong competitiveness in an increasingly globalized market. We are willing to cooperate with business friends from at home and abroad and create a great future together.
