High reputation Shoulder Tapes Continuous Dyeing And Finishing Machine - House Pets Webbings Continuous Dyeing&Finishing Machines Kw-800-Cw600 – Kin Wah

Item No: KW-800-CW600
Size:    18000*1000*4000mm

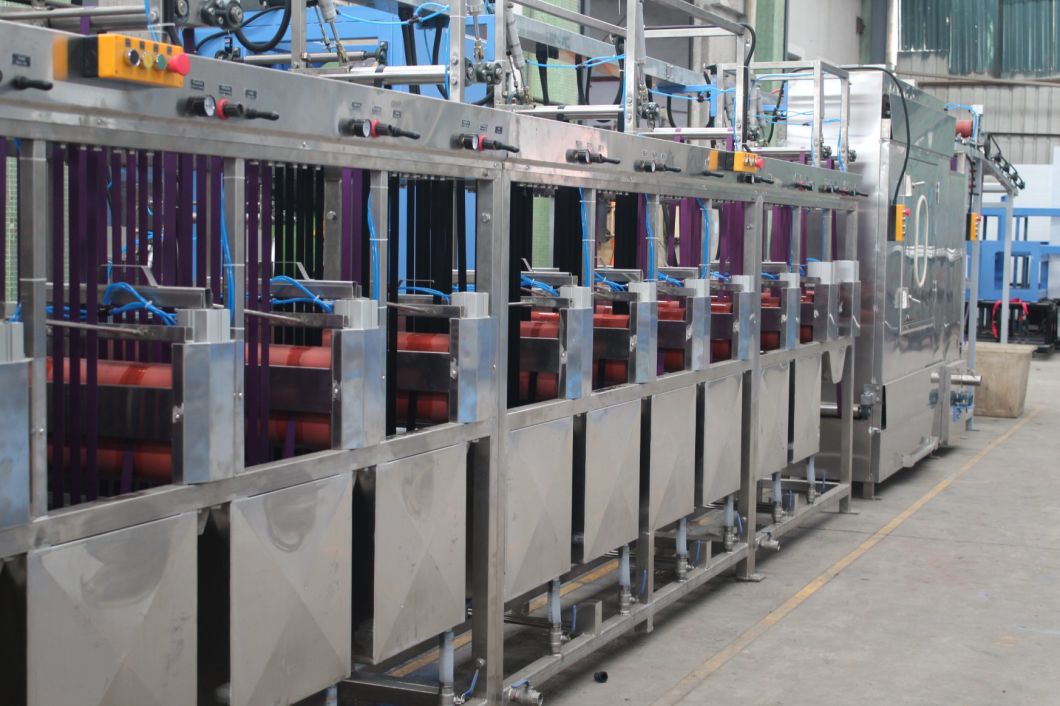

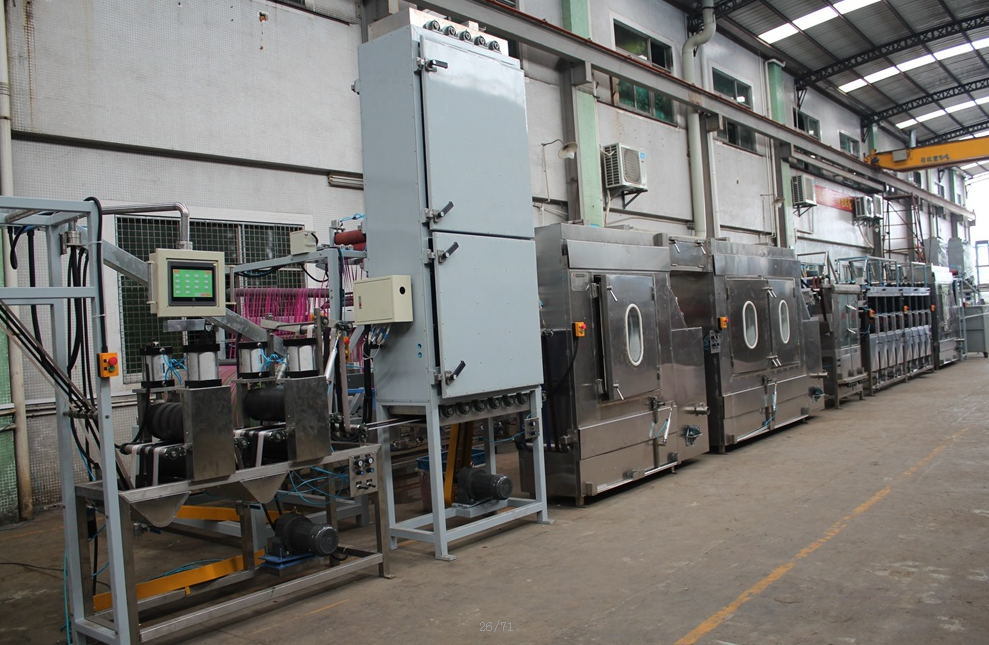

This is high speed safety webbings/harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons etc.


Features:
1) High efficiency
2) With washing tanks for good color fasteness
3) Our patents.

4)Application: The dyeing machine is especially used for
harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons satin ribbons with thickness below 1.5mm

Heat System       electrical/LPG or natural gas/steam
Working Width(mm)  200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m)   15/30/40
Maximun Number(m)  6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

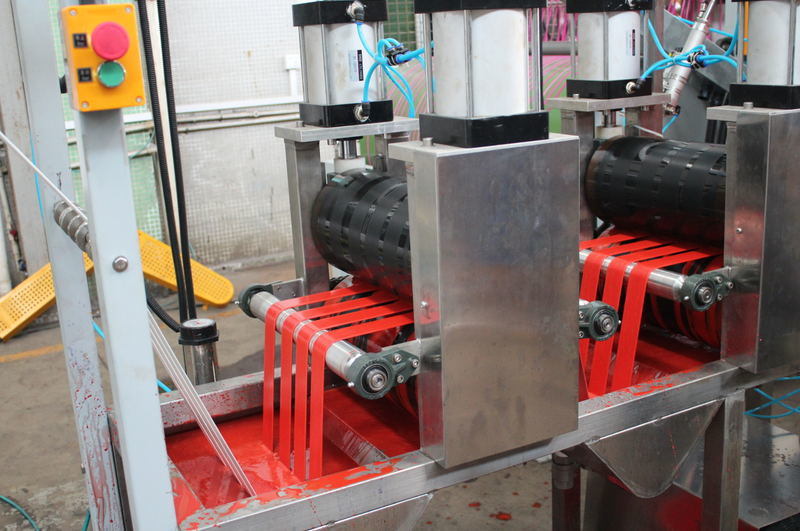

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off


Customers: Satin Ribbons :SANDING GROUP ,Telala, Braitex, Fabrica Marsar,Wavelon Filament
lifting slings/webbing slings/lash strap/tie down strap: JULI Group, Murtra, Protekt, Astro, Hedef Halat, Ekas, Tsiros and Ferreterro, Dahua, Lijia, LiQiang,
Automobile Seatbelt Webbing:AUTOLIV GROUP,Oppermann, FEIMA, GuangDa

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
