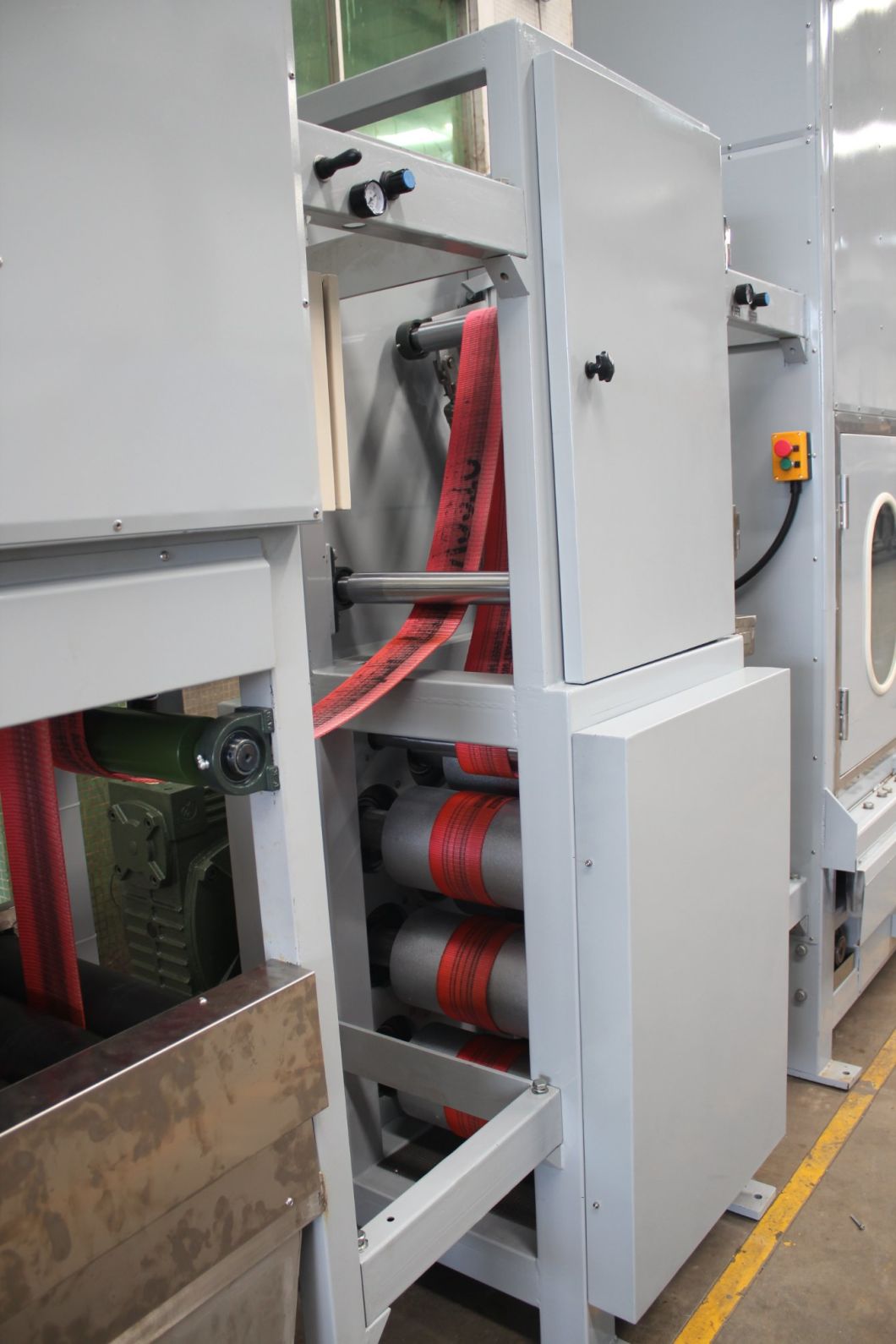

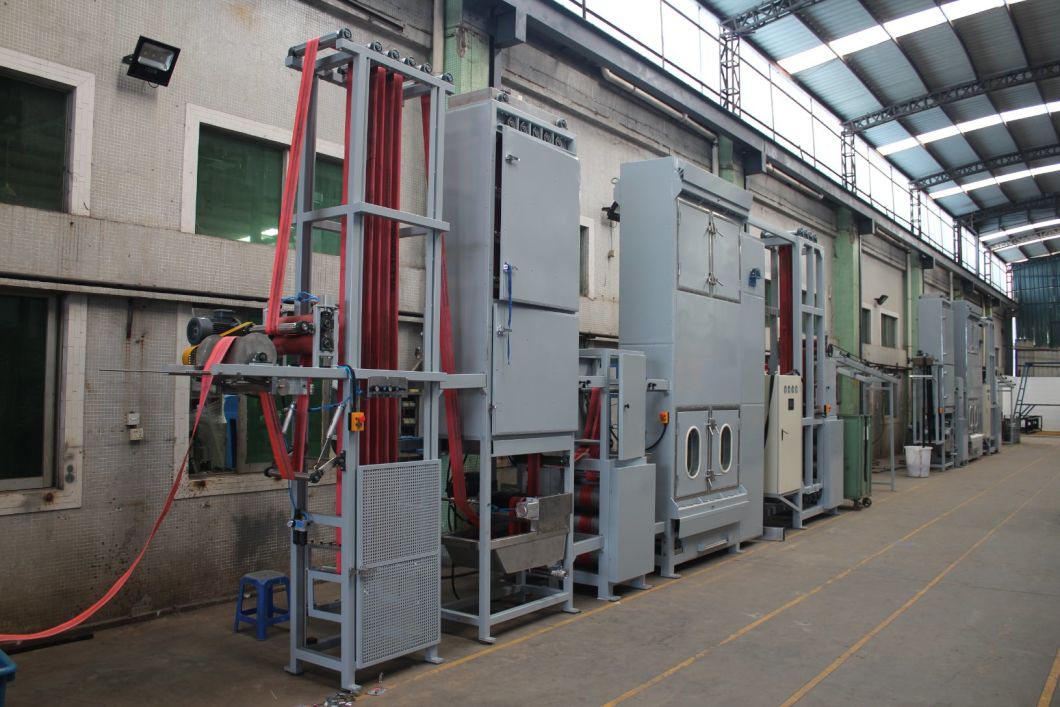

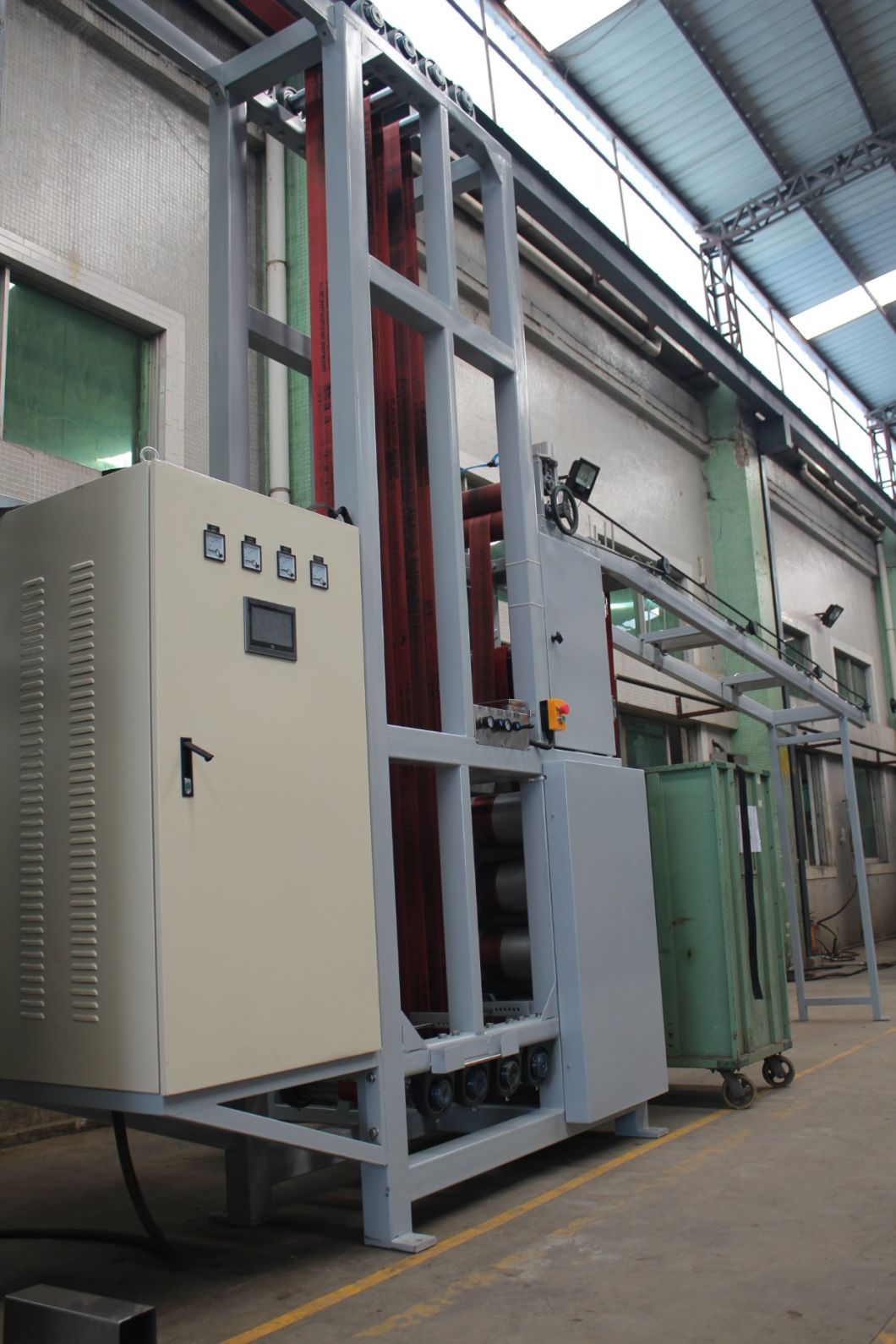

High Temp Ratchet Lashing Straps Continuous Dyeing&Finishing Machine
Lashing Straps/Lifting Sling Webbings Continuous Dyeing&Finishing Machine
This is high speed Sling webbings/tie down straps/lash straps continuous dyeing&finishing machine
Application: The dyeing machine is especially used for dyeing textile lift slings,tie down straps,lash straps and Heavy duty belts with elongation.
Product capacity: 1-4 Pcs/time, 0-15meter/min/Pcs
Can dye both 350mm width sling webbings,heavy duty webbings,tie down straps,lash straps,etc.
With strong elongation function.
For 300mm width webbings:1 meter go into dyeing machine,1.02meter come out after dyed.
For 50mm width webbings:1 meter go into dyeing machine,1.06meter come out after dyed.

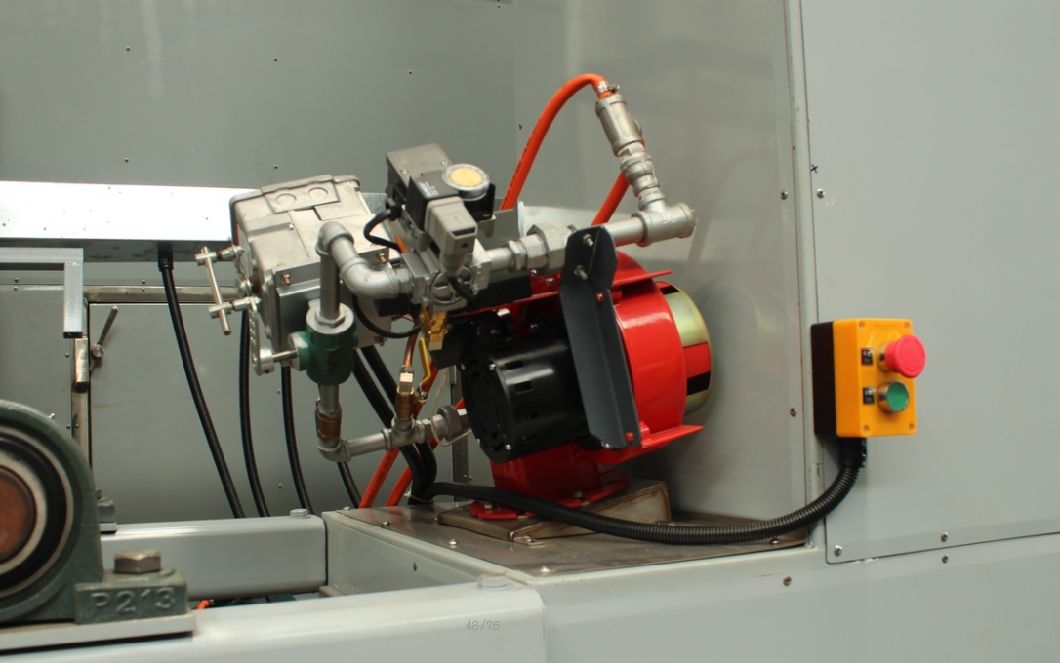

Heat System electrical/LPG or natural gas
Working Width(mm) 600
Thermofixation Chamber Tape Content(m) 60
Maximun Speed(m) 20
Maximun Number(m) 8
Control system Computer control

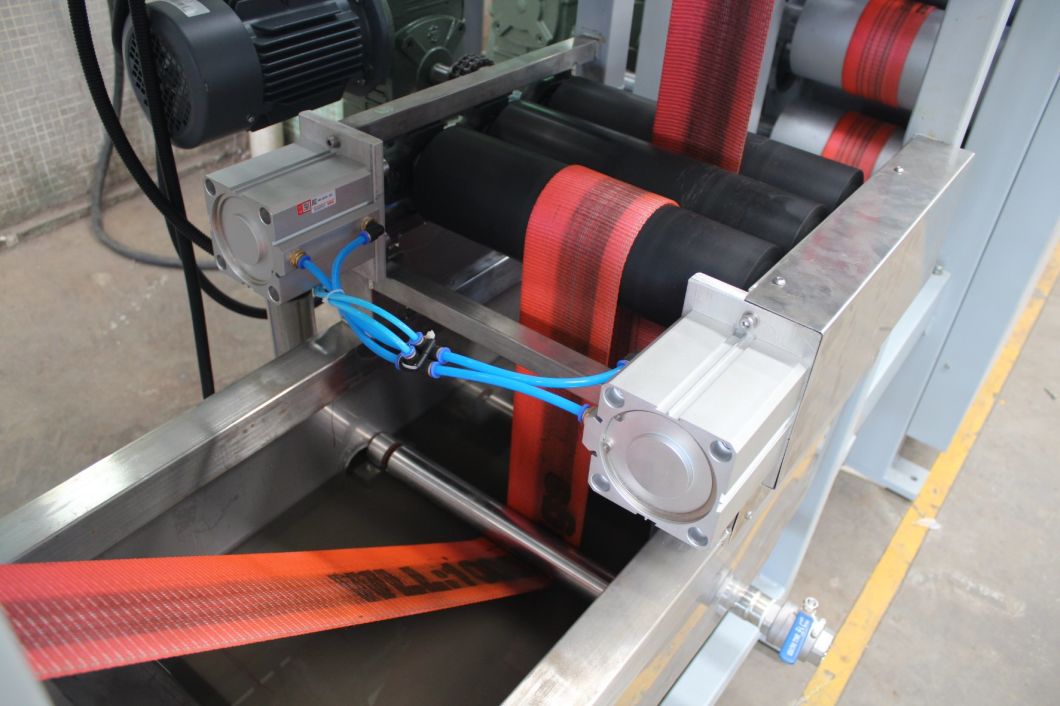

Processes: Feed in-dyeing groove-Infrared pre drying-hold mangle-
thermofixation-cooling system-pull mangle-take off
KIN WAH GROUP. established in Hong Kong in the year of 1980, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
Customers: Satin Ribbons :SANDING GROUP ,Telala, Braitex, Fabrica Marsar,Wavelon Filament
lifting slings/webbing slings/lash strap/tie down strap: JULI Group, Murtra, Protekt, Astro, Hedef Halat, Ekas, Tsiros and Ferreterro, Dahua, Lijia, LiQiang,
Automobile Seatbelt Webbing:AUTOLIV GROUP,Oppermann, FEIMA, GuangDa
Packaging & Shipping
Covered by plastic membrane within full container or less container (woodencase)
