    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

    Short Description:

    Basic Info Model NO.: KW-889 Warranty: 1 Year Customized: Customized Condition: New Power: 38kw Machine Type: Dyeing&Finishing Machine Main Part Ma...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-889
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Power: 38kw
    Machine Type: Dyeing&Finishing Machine
    Main Part Material: Stainless Steel, Iron, Carbon Steel etc
    Driven Type: Electirc
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Working Temperature: 220°c
    Heating System: Electrical/LPG or Natural Gas
    Max Speed: 40m/Min
    Drying Type: Hot Air
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Plastic Mem
    Specification: CE certification
    Origin: Dongguan, Guangdong, China
    HS Code: 8443192290

    Product Description

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with CE

    Item No:KW-889
    Size:    12000*1000*2400mm
    This is a kind of high speed compact satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.

    Features:
    1) High efficiency
    2) Power Energy Saving
    3) Our patents.

    4)Application: The dyeing machine is widely used for dyeing all kinds of narrow fabric made from polyester and nylon with thickness below 1.5mm. such as satin ribbons,label ribbons,lanyards webbings,laces,luggage&suitcase belts etc.


    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Item
    Heat System  electrical LPG or natural gas Steam
    Working Width(mm)  200 400 600
    Thermofixation Chamber Tape Content(m) 45/60 60/80
    Maximun Speed(m)    15 30 40
    Maximun Number(m)   6 10 20
    Control system Manual/PLC (PLC&Touch screen)

    Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation-washing tank-hot air drying -cooling off-take off

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines:
    MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.

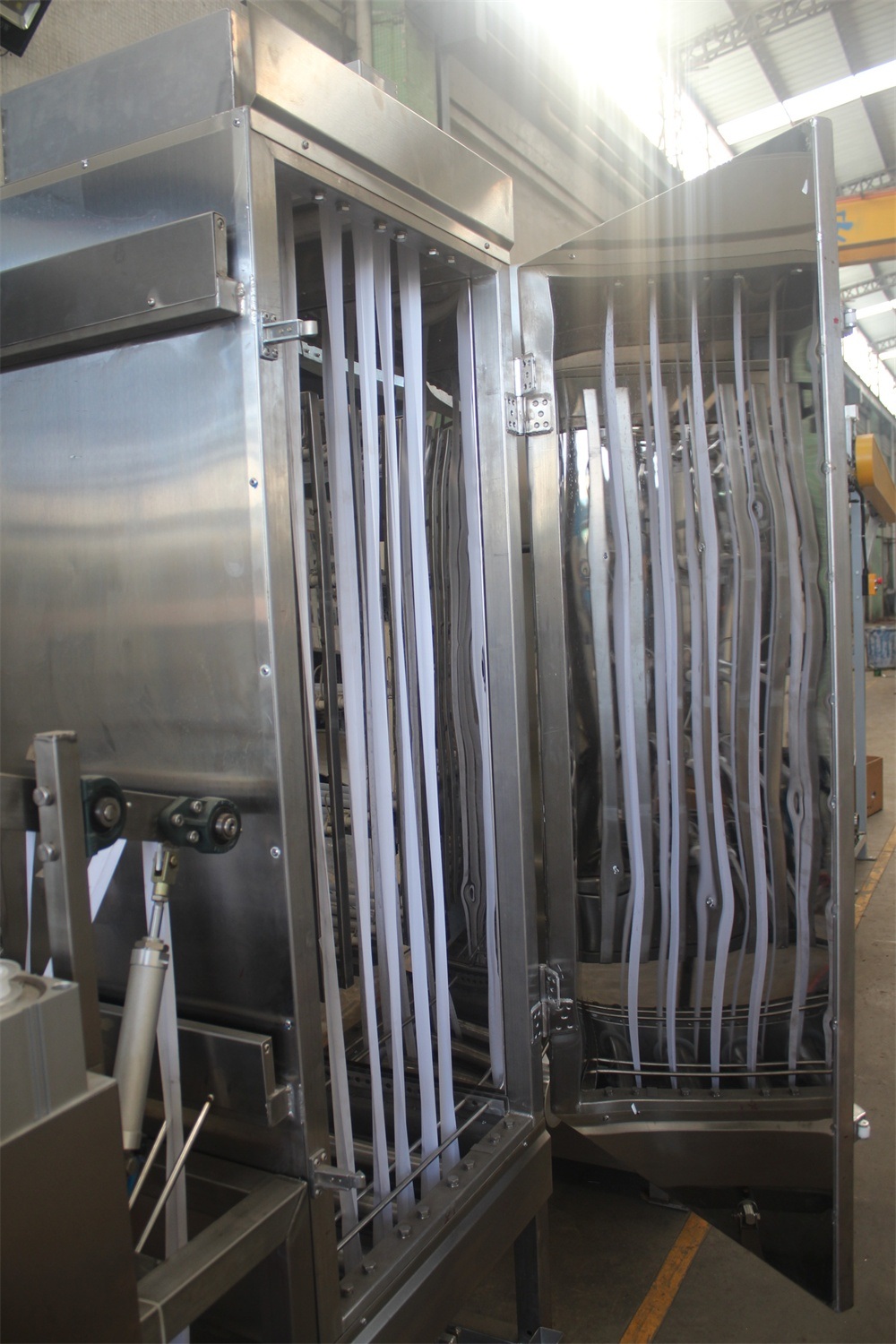

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

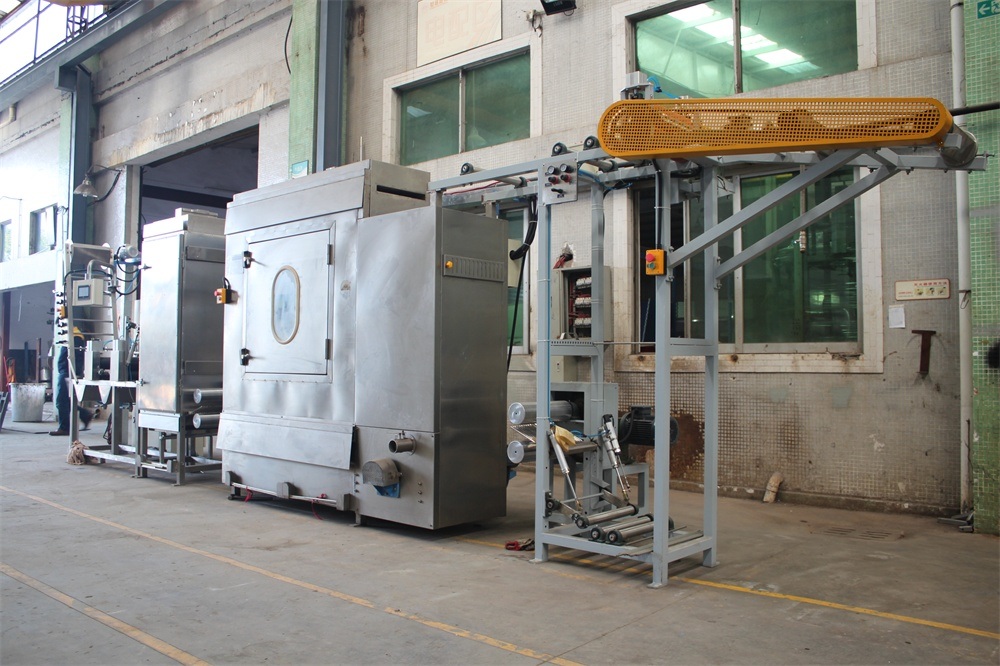

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

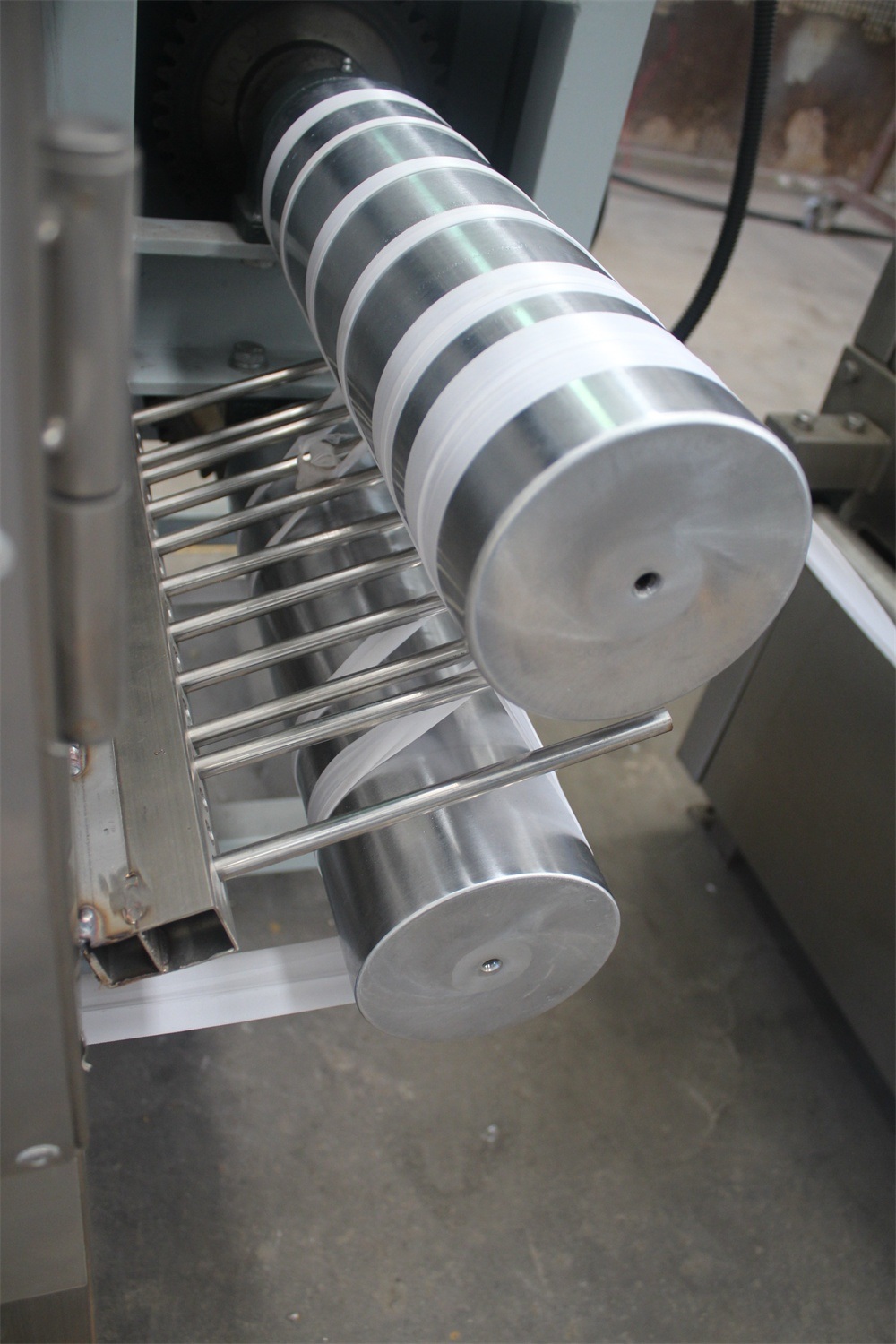

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

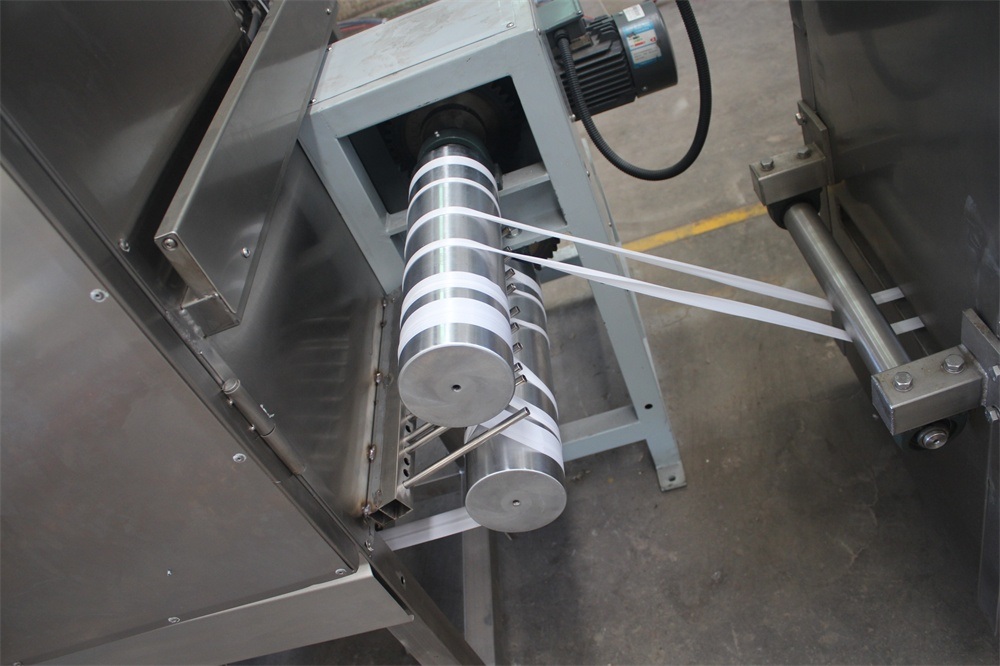

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

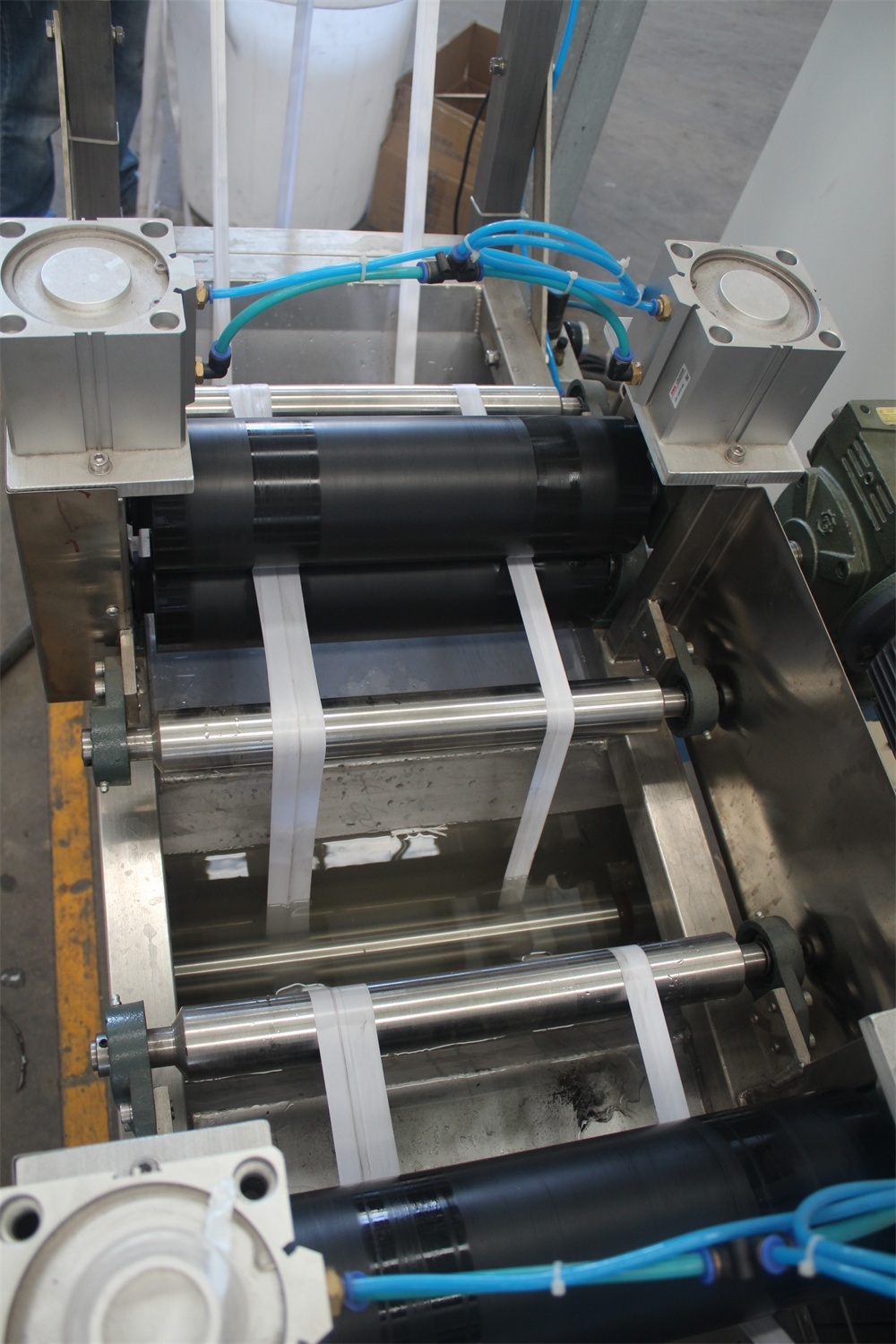

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce

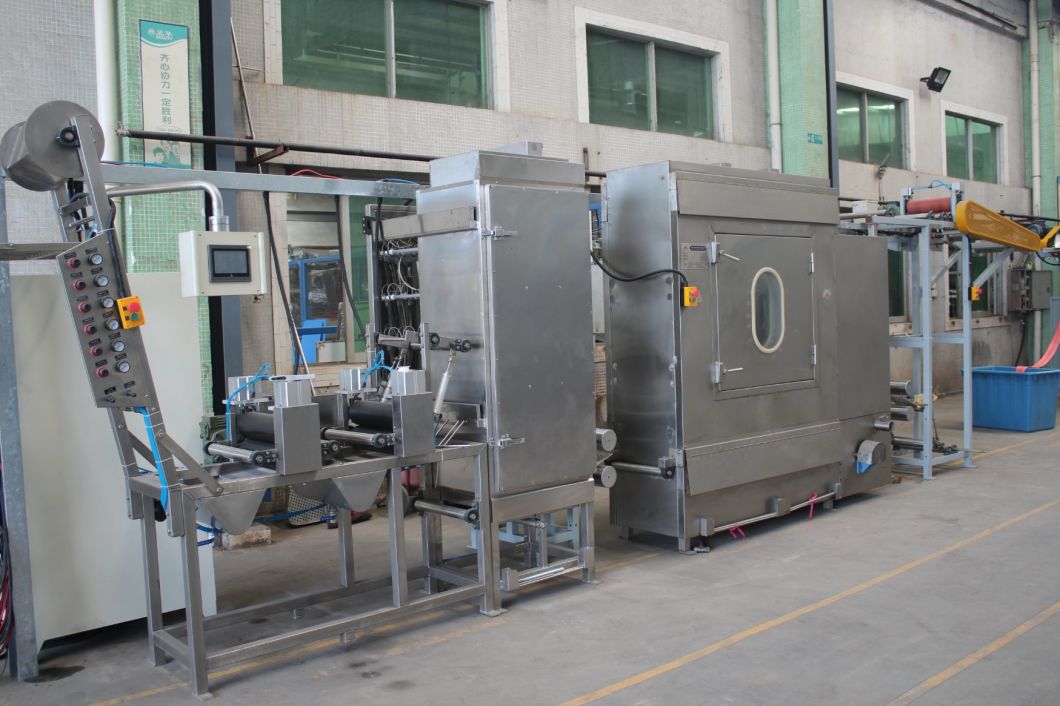

    Label Ribbons Sample Continuous Dyeing&Finishing Machine with Ce
