Low price for automatic Screen Printer – Automatic Screen Printer - High Temp Multi-Colors Label-Ribbons Screen Printing Machine – Kin Wah

Short Description:

Basic Info Model NO.: TS-150 Main Part Material: Stainless Steel Driven Type: Electric Gross Power: 6-11kw Phase: 3 Phases Frequency: 50/60Hz Printing A...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

We are ready to share our knowledge of marketing worldwide and recommend you suitable products at most aggressive costs. So Profi Tools offer you finest benefit of money and we are ready to produce alongside one another with Content Tapes Silk Screen Printing Machine , Webbing Slings Dyeing Machine , Polyester Webbings Continuous Dyeing Machine , our merchandise have superior popularity from the whole world as its most competive cost and our most advantage of after-sale assistance for the clients。

Low price for automatic Screen Printer – Automatic Screen Printer - High Temp Multi-Colors Label-Ribbons Screen Printing Machine – Kin Wah Detail:

Basic Info

Model NO.: TS-150

Main Part Material: Stainless Steel

Driven Type: Electric

Gross Power: 6-11kw

Phase: 3 Phases

Frequency: 50/60Hz

Printing Area: 150*300mm

Printing Linest: 3lines/Time

Max Speed: 6m/Min/Line

Registration Precision: 0.05mm

Printing Side: Single/Double Sides

Trademark: DOPSING

Transport Package: Wooden Box

Specification: CE certification

Origin: China(Mainland)

HS Code: 8443192290

Product Description

High Temp Multi-Colors Label-Ribbons Screen Printing Machine

We supply Auto Roll to Roll Screen printing Printer, all are for fabric label and ribbon screen printing. It can print priciesly and two sides printing at one time. It’s the leader of the narrow fabric screen printing equipments. We have agents in many countries and branches in China.
Model No. TS-150
Usage, print any kinds of roll material, such as label, ribbon, cotton, elestic, shoelace, heavy tape, lanyard and so on

Total Colors	Model	Single/Both Sides	Printing Lines	Max Printing Area	Dimension
2 C	1+1	Both	3Lines/3.5cm	150X300mm	2200X850X1600mm
2 C	2+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
3 C	2+1	Both	3Lines/3.5cm	150X300mm	2700X850X1600mm
3 C	3+0	Single	3Lines/3.5cm	150X300mm	3155X850X1600mm
4 C	3+1	Both	3Lines/3.5cm	150X300mm	3850X850X1600mm
4 C	4+0	Single	3Lines/3.5cm	150X300mm	4760X850X1600mm

Advantage:
1. Using Stainless steel convey belt instead of traditional convey to make register color very precisely.
2. Standard colour: 2+1 (front side 2 -colours, back side 1 colour printing), this model we can customise as the requirement of our client.
3. Small in size, and not occupy your much room, dimention only 2.95M * 0.65M * 1.65M. Easy to install at any place.
4. Full automatic, it is controlled by a servo-system. Two infrared ovens.
5. High efficiency, save your time and your labour cost. Max Speed can up to 28 Times/Min.
6. Good thermostability with stainless steel belt convey, it can print any kinds of high temperature ink, such as plastisol, silicon, etc.
7. Multi tapes printed at one time.
8. Rational Price depend on how many colours do you want to print.
9. Long service life, if maintainance proper, its service life can up to more than 8 years.

DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

High Temp Multi-Colors Label-Ribbons Screen Printing Machine

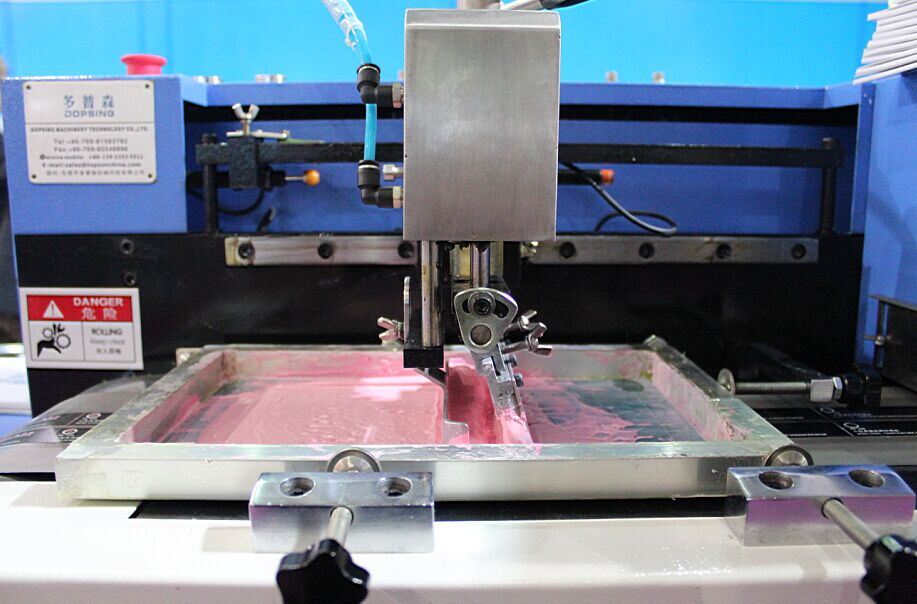

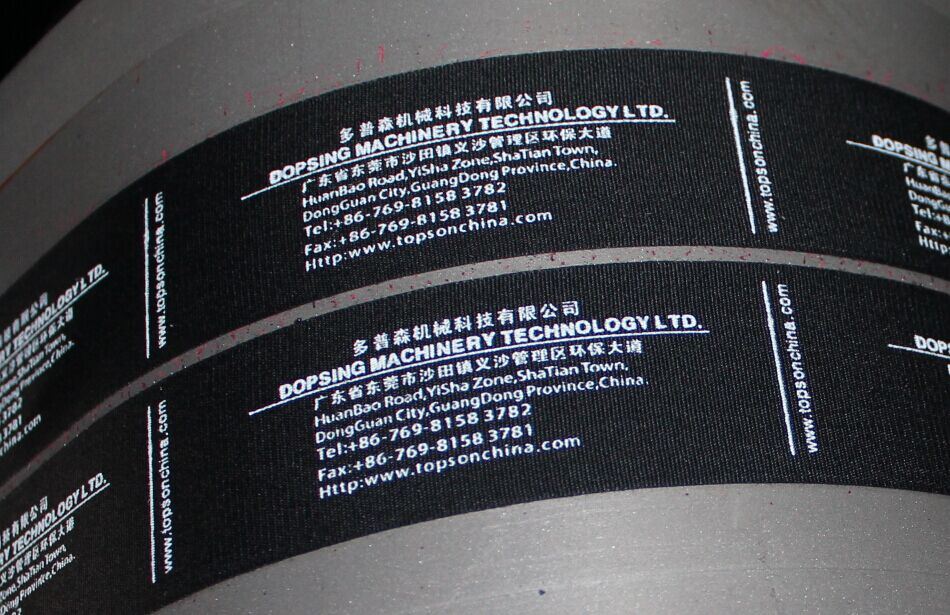

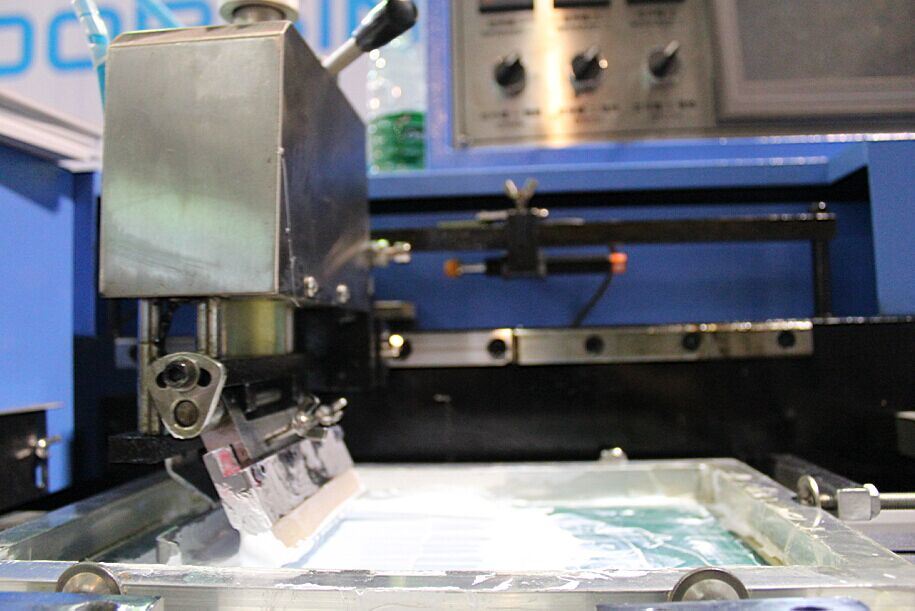

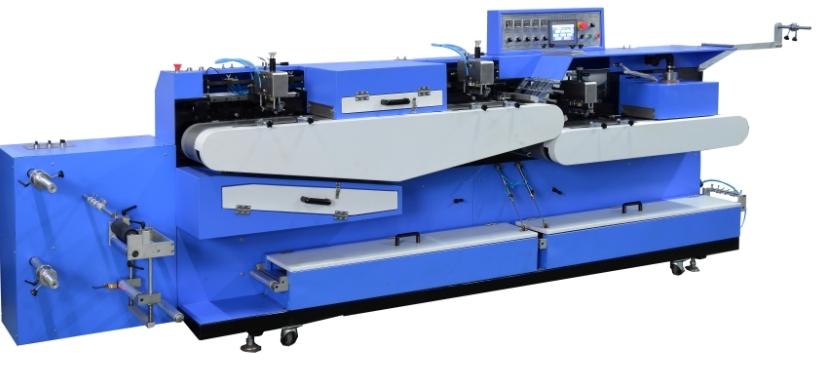

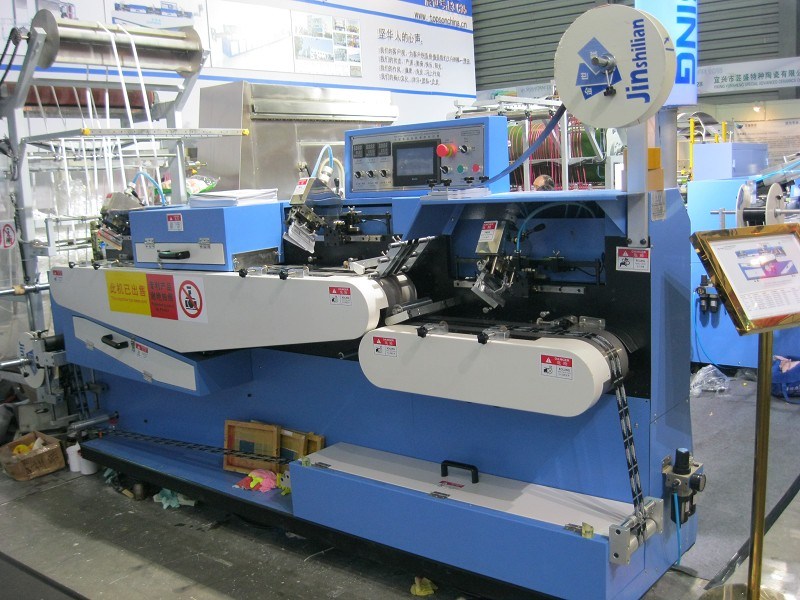

Product detail pictures:
