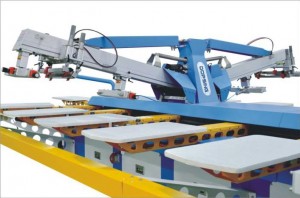

    Multi-Color Fully Automatic Oval Screen Printing Machine

    Short Description:

    Specification Color Printing head QTY Plate QTY Machine weight Consumption Machine length 6 colors 6 24 PCS 2656kgs 3.9KW 1020cm 8 colors 8 30 PCS 3323kgs 4.7KW 1243cm 10 colors 10 36 PCS 3990kgs 5.5KW 1466cm 12 colors 12 42 PCS 4657kgs 6.3KW 1689cm 14 colors 14 48 PCS 5324kgs 8.6KW 1912cm 16 colors 16 54 PCS 5991kgs 9.4KW 2135cm 18 colors 18 60 PCS 6658kgs 10.2KW 2358cm 20 colors 20 66 PCS 7325kgs 11KW 2581cm 22 colors 22 72 PCS 7992kgs 11.8KW 2804cm 24 colors 24 78 PC...


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Machine Type: Screen Printing Machine
  • Main Part Material: Sheet Metal
  • Printing Area: 600X700mm
  • Voltage: 380V
  • Working Capacity: 800-900 PCS/H
  • Product Detail

    Product Tags

    Specification

    Color Printing head QTY Plate QTY Machine weight Consumption Machine length
    6 colors 6 24 PCS 2656kgs 3.9KW 1020cm
    8 colors 8 30 PCS 3323kgs 4.7KW 1243cm
    10 colors 10 36 PCS 3990kgs 5.5KW 1466cm
    12 colors 12 42 PCS 4657kgs 6.3KW 1689cm
    14 colors 14 48 PCS 5324kgs 8.6KW 1912cm
    16 colors 16 54 PCS 5991kgs 9.4KW 2135cm
    18 colors 18 60 PCS 6658kgs 10.2KW 2358cm
    20 colors 20 66 PCS 7325kgs 11KW 2581cm
    22 colors 22 72 PCS 7992kgs 11.8KW 2804cm
    24 colors 24 78 PCS 8659kgs 12.6KW 3027cm

    Air pressure specifications: 0.6 – 0.8 Mpa (must be dried and filtered)
    Working capacity:800-900 pcs/h
    Machine width:344cm printing area: 600x700mm Frame size: 730x1030mm
    Machine height:150cm Plate size: 630x865mm Power: AC380V
    Driven for printing head:400w Oven maximum power:16kw
    Accessories: the machine can be added with flocking machine, pressing machine, digital direct jet printer and other functions, a variety of printing process can be completed in the same machine.

    Products advantage:
    With special plate structure, stable operation, high registration precision.
    Exchange plate quickly, only need few second, one-click operation automatically keep the plate balance.Various printing application for cut-pieces,garments etc.
    The beam made form sheet metal, more stable and solid than traditional aluminum structure.

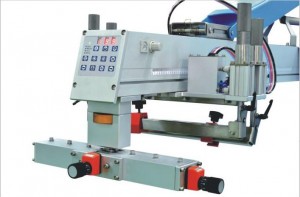

    There are independent print and reset Multi-function operation panel and independent print/flood speed controls on each printing head to make setup and operation fast and easy.
    Clean the screen frame by lifting the printing head, do not need to take the take the frame off.
    Lower the production cost, large,medium and small mesh frame arbitrary interchange, without any waste of the existing screen frame.
    Servo system, high precision color registration.Tolerance±0.01mm.High efficiency, lower power consumption, energy saving and environment protection.

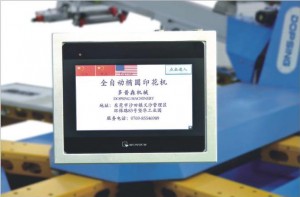

    Colorized intelligent touching screen, HMI in Chinese and English, with intuitive and convenient operation.
    High quality for all parts, running FAI&CPK in processing, ensure the dimension is qualified, the machine structure performance is good.
    With special welding process and accurate machining work, machine working life more than 15 years.
