    Nylon Tapes Continuous Dyeing&Finishing Machine with High Speed

    Short Description:

    Basic Info Model NO.: KW-807 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Driven Type: Electric Po...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-807
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Driven Type: Electric
    Power(W): 32kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Working Temperature: 100°c
    Heating System: Electrical&LPG or Natural Gas&Steam
    Max Speed: 30m/Min
    Drying Type: Hot Air Drying
    Application: Elastic Tapes, Nylon Tapes,Narrow Fabric etc
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Film
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 894560000

    Product Description

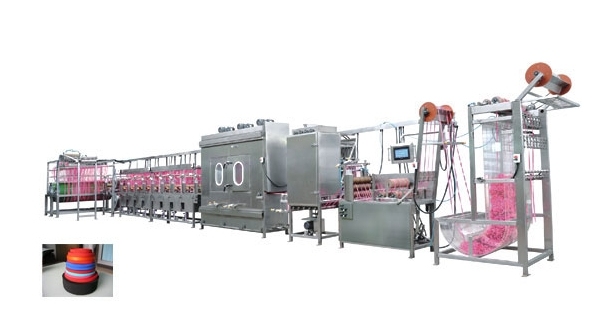

    Nylon Tapes Continuous Dyeing&Finishing Machine with high speed

    Item No:KW-807-SJ400-A
    Size:15000*2400*1000mm
    This is updated newest elastic tapes continuous dyeing machine

    Features:
    1)with PLC
    2)with  J-Box.
    3)our patents.
    4)it’s the best seller in 2013 .
    5)laid out a new system of tension automatic control
    6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.


    Item
    Heat System  electrical steam
    Working Width(mm)  200 400 600
    Thermofixation Chamber Tape Content(m) 45/60 80/90
    Maximun Speed(m)    15 20 30
    Maximun Number(m)   4 8 12
    Control system Manual/PLC


    Option: J-Box  Feed in device with individual tapes tension control

    Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

    Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.
