OEM/ODM Factory Webbing Sling Screen Printer - 200mm Safety Belt Webbings Continuous Dyeing and Finishing Machine – Kin Wah

Short Description:

Basic Info Model NO.: KW-800-AQS200 Warranty: 1 Year Customized: Customized Condition: New Brand Name: Kin Wah Power: 48kw Place of Origin: Guangdong, China Weight: 15000kgs Dimension: 28000*1000*4000mm After-Sales Service Provided: Engineers Available to Service Oversea Driven Type: Electric Heating System: Electrical/LPG or Natural Gas/Steam Max Working Temperature: 220°c Maximum Speed (M): 40 M/Min Trademark: KINWAH Transport Package: Full Container or Less Container with Plastic Film...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

Adhering into the principle of "quality, provider, performance and growth", we now have gained trusts and praises from domestic and intercontinental consumer for Bag Belts Starching And Finishing Machine , Ratchet Webbings Cutting Machine , Ultrasonic Label Slitting Machine , For additional queries or should you might have any question regarding our goods, make sure you do not hesitate to call us.

OEM/ODM Factory Webbing Sling Screen Printer - 200mm Safety Belt Webbings Continuous Dyeing and Finishing Machine – Kin Wah Detail:

Basic Info

Model NO.: KW-800-AQS200

Warranty: 1 Year

Customized: Customized

Condition: New

Brand Name: Kin Wah

Power: 48kw

Place of Origin: Guangdong, China

Weight: 15000kgs

Dimension: 28000*1000*4000mm

After-Sales Service Provided: Engineers Available to Service Oversea

Driven Type: Electric

Heating System: Electrical/LPG or Natural Gas/Steam

Max Working Temperature: 220°c

Maximum Speed (M): 40 M/Min

Trademark: KINWAH

Transport Package: Full Container or Less Container with Plastic Film

Specification: CE certification

Origin: China

HS Code: 84514000

Product Description

200mm Safety Belt Webbings Continuous Dyeing and Finishing MachineItem No: KW-800-AQS200
Size: 28000*1200*3200mm
This is high speed safety webbings/harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons etc.

Features:
1) High efficiency
2) With washing tanks for good color fasteness
3) Our patents.

4)Application: The dyeing machine is especially used for
harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons satin ribbons with thickness below 1.5mm

Heat System       electrical/LPG or natural gas/steam
Working Width(mm) 200/400/600
Thermofixation Chamber Tape Content(m) 45/60/60/80
Maximun Speed(m)   15/30/40
Maximun Number(m) 6/10/20
Control system        Manual/Computer control(PLC&Touch screen)

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

200mm Safety Belt Webbings Continuous Dyeing and Finishing Machine

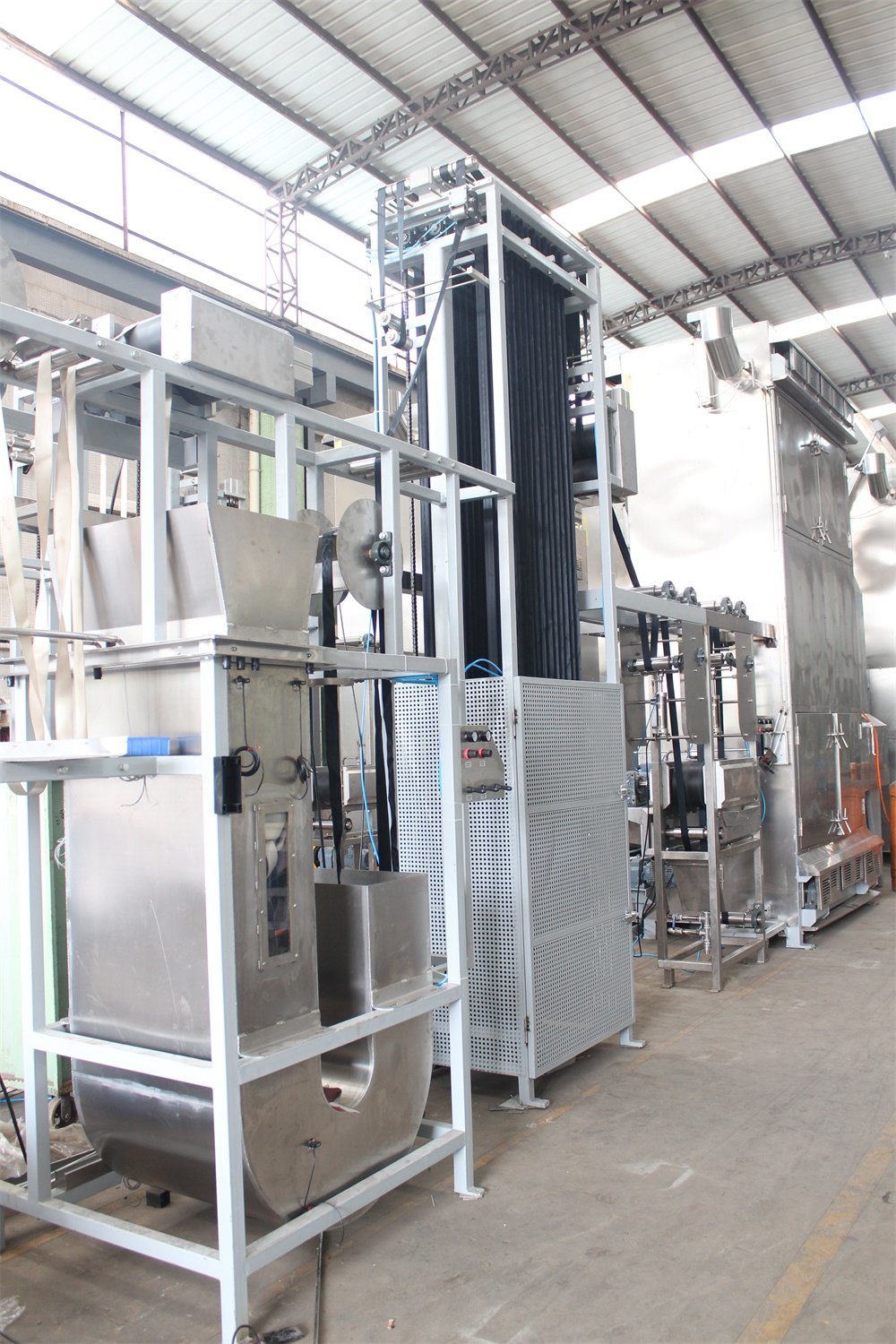

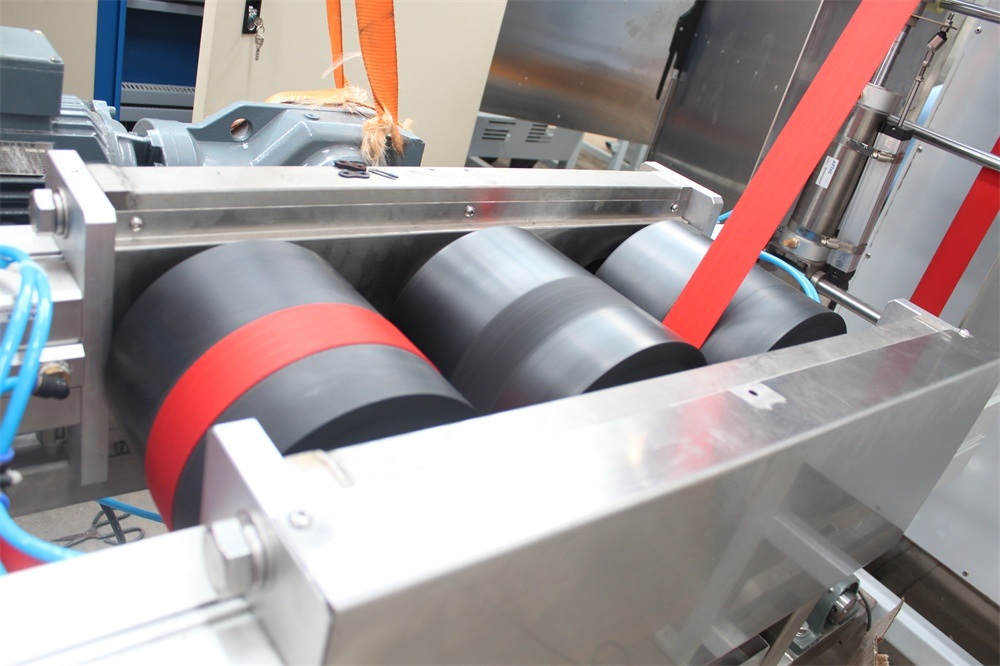

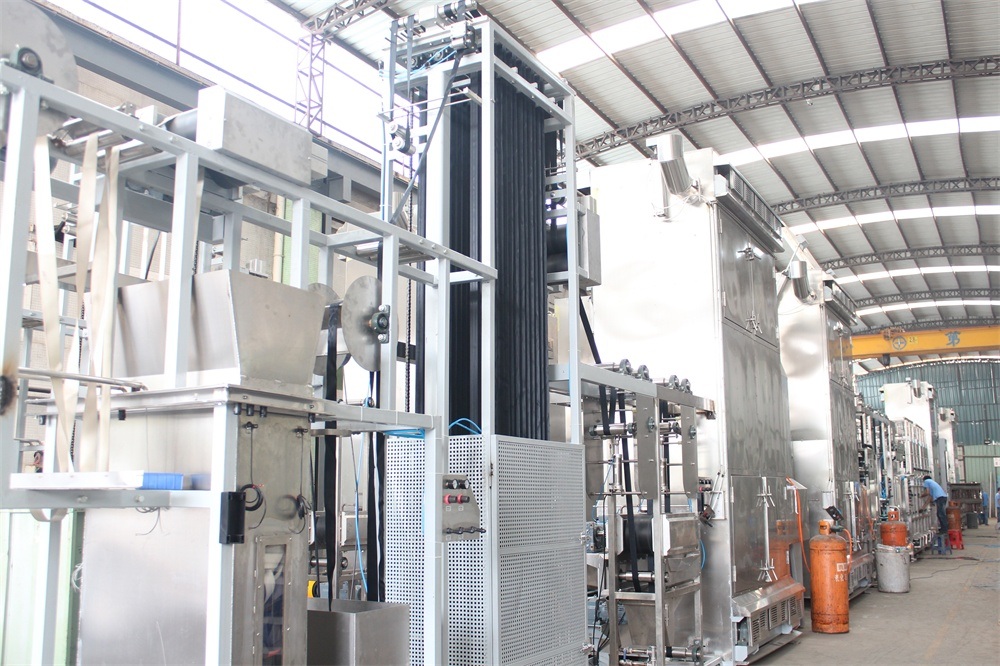

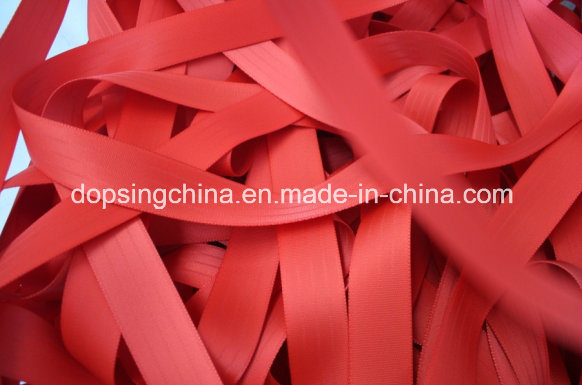

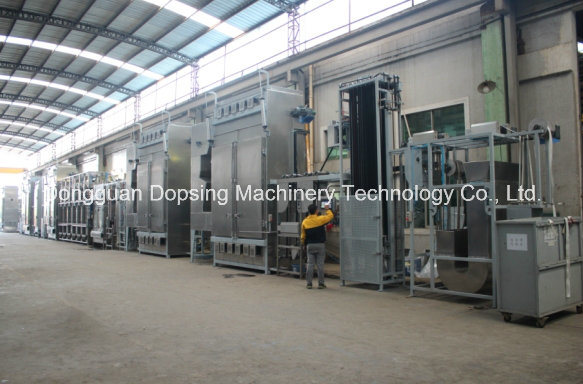

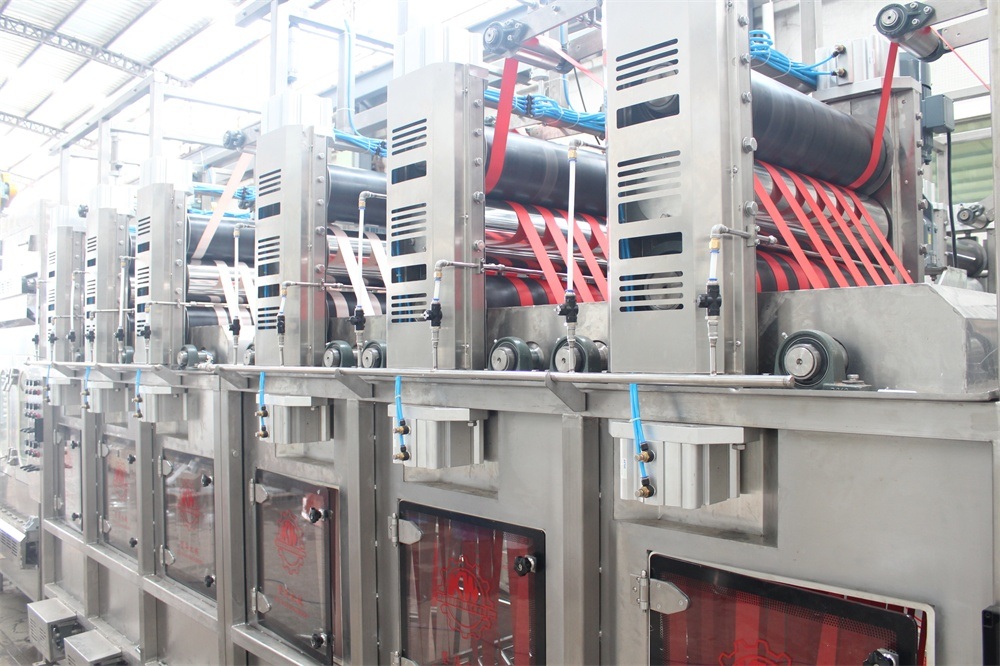

Product detail pictures:
