    OEM/ODM Manufacturer Polyester Tapes Rolling Machine - Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah

    Short Description:

    Basic Info Model NO.: TS-200 System supported: PLC Main Part Material: Stainless Steel Driven Type: Electric Gross Power: 6-11kw Phase: 3 Phases Frequen...


    Product Detail

    Product Tags

    Related Video

    Feedback (2)

    We have the most advanced production equipment, experienced and qualified engineers and workers, recognized quality control systems and a friendly professional sales team pre/after-sales support for High Temperature Automatic Screen Printing Machine , Elastic Tapes Pre-Shrinking Machine , Polyester Webbings Dyeing And Finishing Machine , When you've got any remarks about our firm or merchandise, please come to feel no cost to call us, your coming mail will likely be really appreciated.
    OEM/ODM Manufacturer Polyester Tapes Rolling Machine - Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah Detail:

    Basic Info

    Model NO.: TS-200
    System supported: PLC
    Main Part Material: Stainless Steel
    Driven Type: Electric
    Gross Power: 6-11kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Printing Area: 180*300mm
    Printing Linest: 3lines/Time
    Max Speed: 6m/Min/Line
    Registration Precision: 0.05mm
    Printing Side: Single/Double Sides
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China(Mainland)
    HS Code: 8443192290

    Product Description

    Cotton tapes/lanyard ribbon automatic printing machine 2+1 colors

    We supply Auto Roll to Roll Screen printing Printer, all are for fabric label and ribbon screen printing. It can print priciesly and two sides printing at one time. It’s the leader of the narrow fabric screen printing equipments. We have agents in many countries and branches in China.
    Model No. TS-200
    Usage, print any kinds of roll material, such as label, ribbon, cotton, elestic, shoelace, heavy tape, lanyard and so on


    Total Colors Model Single/Both Sides Printing Lines Max Printing Area Dimension
    2 C 1+1 Both 3Lines/3.5cm 180X300mm 2200X850X1600mm
    2 C 2+0 Single 3Lines/3.5cm 180X300mm 3155X850X1600mm
    3 C 2+1 Both 3Lines/3.5cm 180X300mm 2700X850X1600mm
    3 C 3+0 Single 3Lines/3.5cm 180X300mm 3155X850X1600mm
    4 C 3+1 Both 3Lines/3.5cm 180X300mm 3850X850X1600mm
    4 C 4+0 Single 3Lines/3.5cm 180X300mm 4760X850X1600mm

    Advantage:
    1. Using Stainless steel convey belt instead of traditional convey to make register color very precisely.
    2. Standard colour: 2+1 (front side 2 -colours, back side 1 colour printing), this model we can customise as the requirement of our client.
    3. Small in size, and not occupy your much room, dimention only 2.95M * 0.65M * 1.65M. Easy to install at any place.
    4. Full automatic, it is controlled by a servo-system. Two infrared ovens.
    5. High efficiency, save your time and your labour cost. Max Speed can up to 28 Times/Min.
    6. Good thermostability with stainless steel belt convey, it can print any kinds of high temperature ink, such as plastisol, silicon, etc.
    7. Multi tapes printed at one time.
    8. Rational Price depend on how many colours do you want to print.
    9. Long service life, if maintainance proper, its service life can up to more than 8 years.

    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

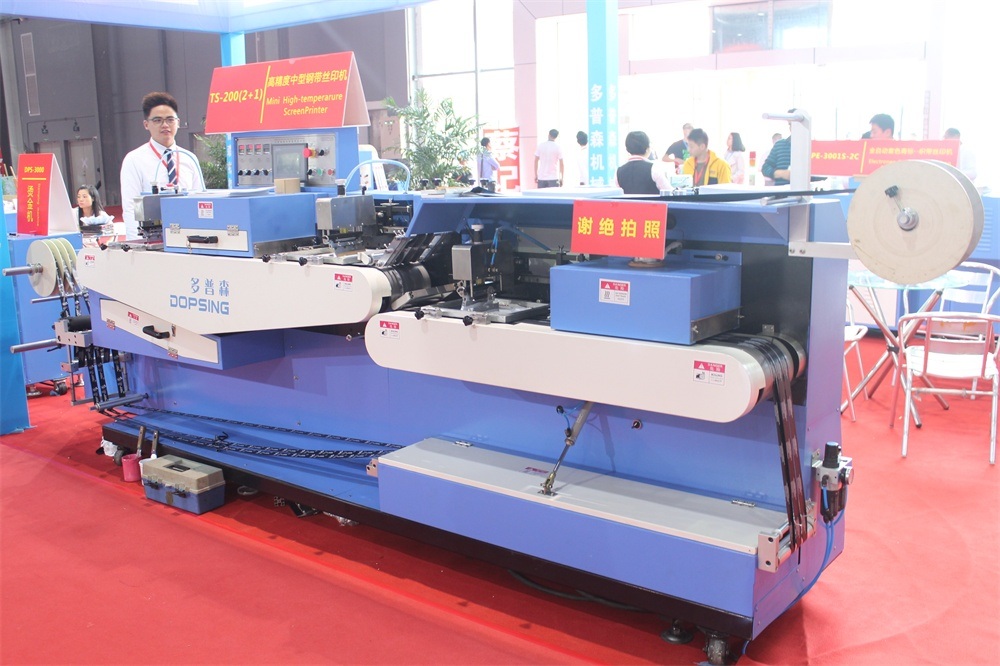

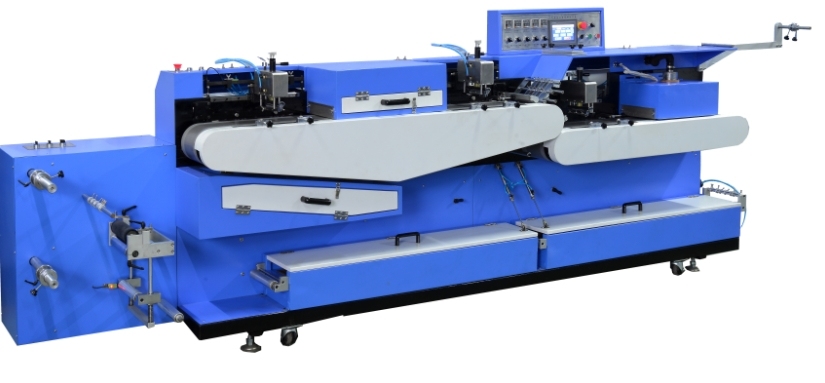

    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors
    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors
    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors

    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors
    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors
    Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors


    Product detail pictures:

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures

    OEM/ODM Manufacturer Polyester Tapes Rolling Machine -
 Cotton Tapes/Lanyard Ribbon Automatic Printing Machine 2+1 Colors – Kin Wah detail pictures
