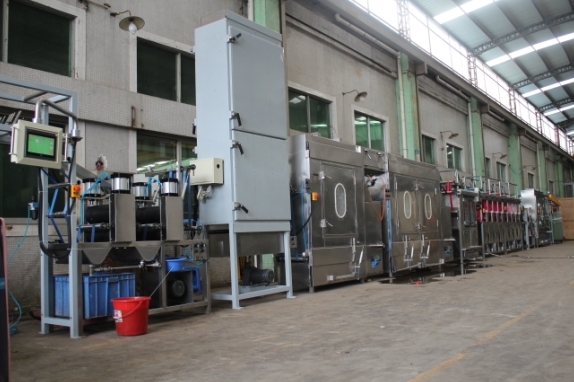

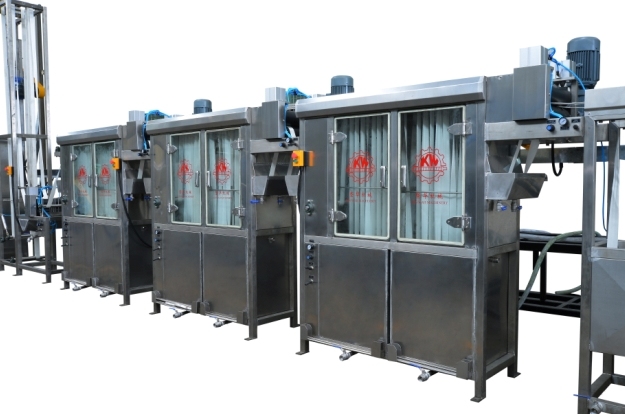

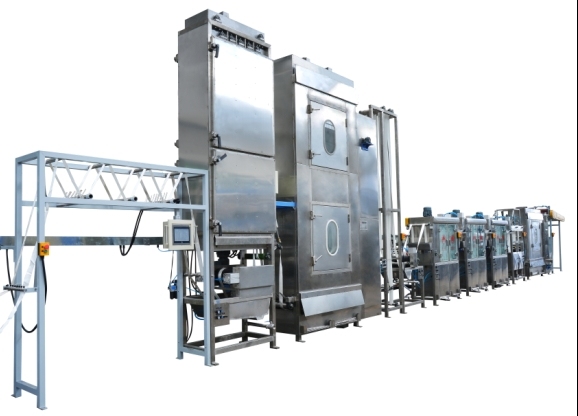

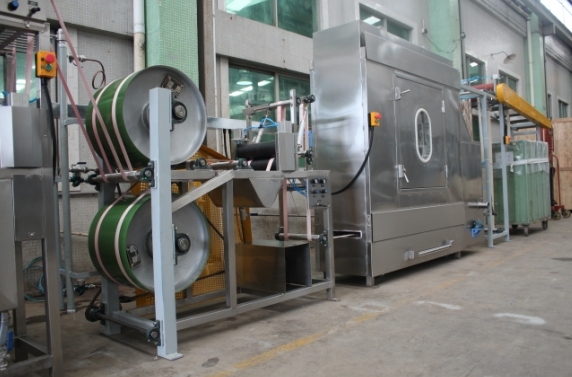

Professional China Wide Sling Webbings Dyeing Machine - Pets Webbings Continuous Dyeing and Finishing Machine – Kin Wah

Item No: KW-800-CW400
Size:    28000*1000*4000mm
This is high speed polyester webbings continuous dyeing machine,it also can dye safety webbings,heavy duty webbings and tie down straps with Features:

1) High efficiency

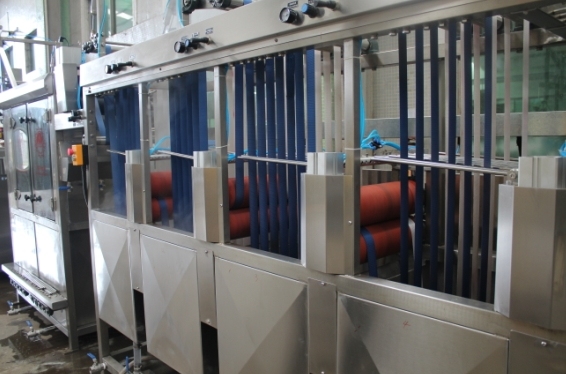

2) With washing tanks for good color fasteness
3) Our patents.
4)Application: The dyeing machine is especially used for
Mass production heavy duty webbings,tie down straps,lashing straps,harness webbings,safety webbings with elongation requirement etc.

Heat System       electrical/LPG or natural gas
Working Width(mm)         400

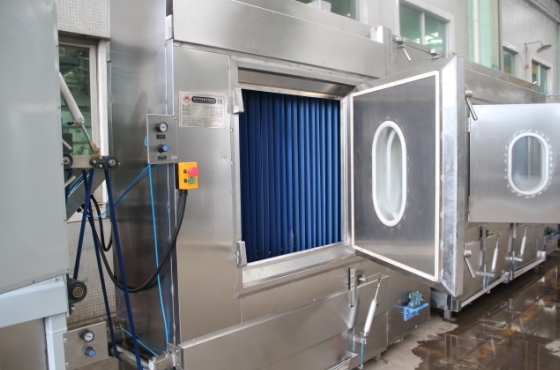

Thermofixation Chamber Tape Content(m) 60
Maximun Speed(m)     20
Maximun Number(m)    4
Control system        Manual/Computer control(PLC&Touch screen)

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation-cooling off-pull mangle-washing tank-chemical groove-hot air drying-cooling off-pull mangle-take off

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.
Type01


Type02
