Reliable Supplier Customized Logo Lanyard - Luggage&Suitcase Webbings Continuous Dyeing&Finishing Machine with CE Certificate – Kin Wah

luggage&suitcase webbings continuous dyeing&finishing machine with CE certificate


Size:    18000*1000*1800mm

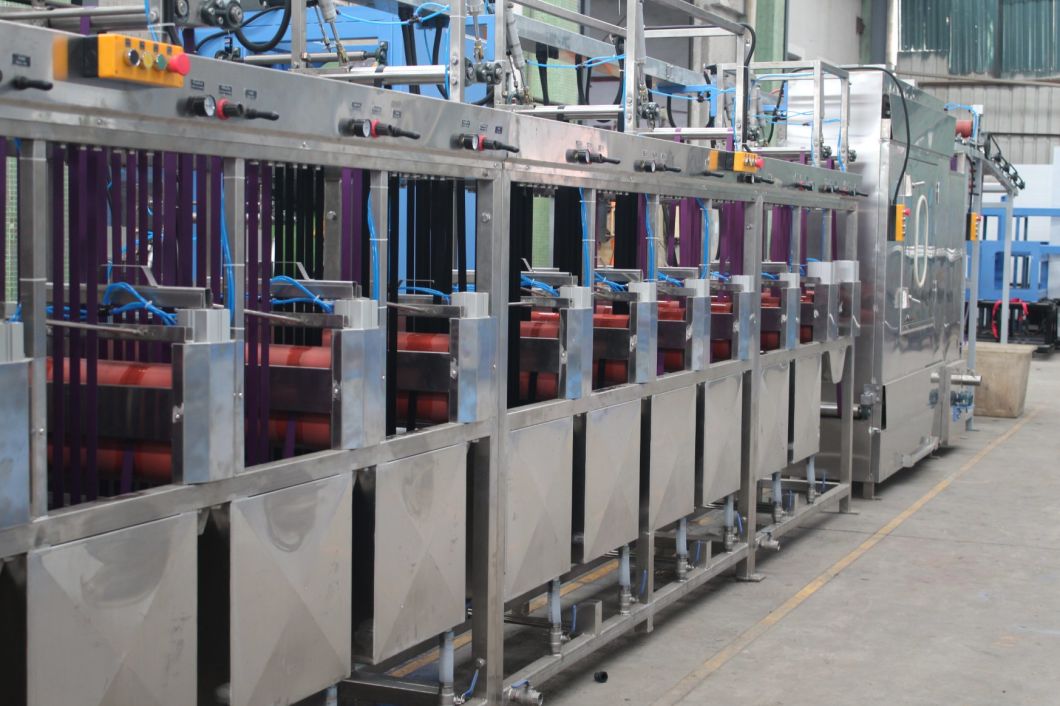

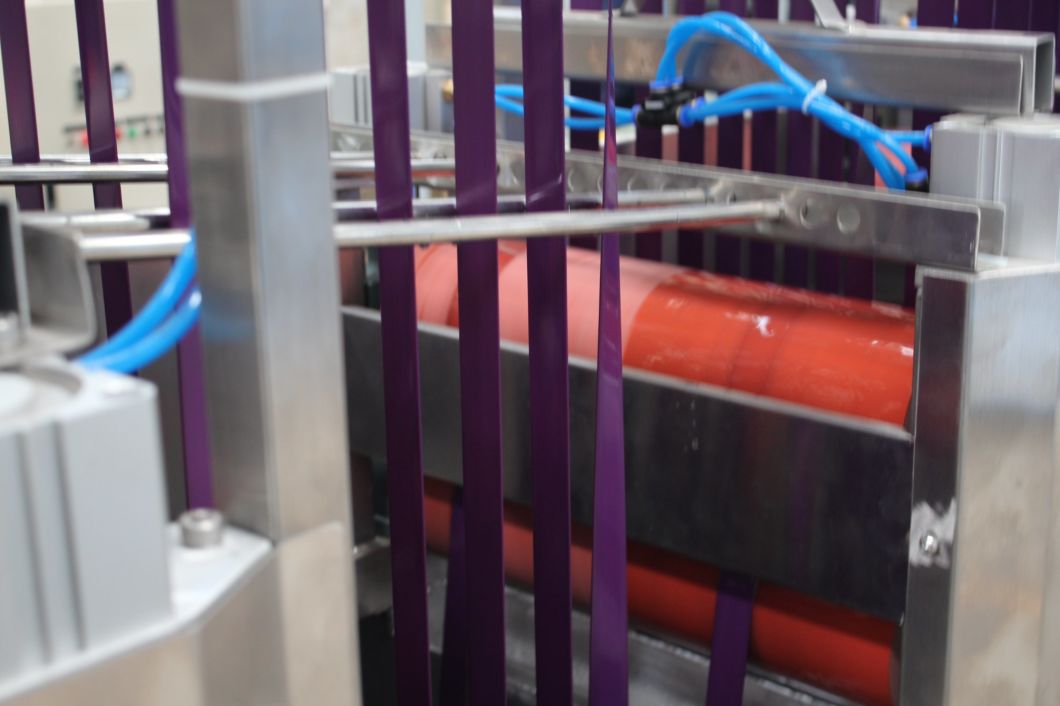

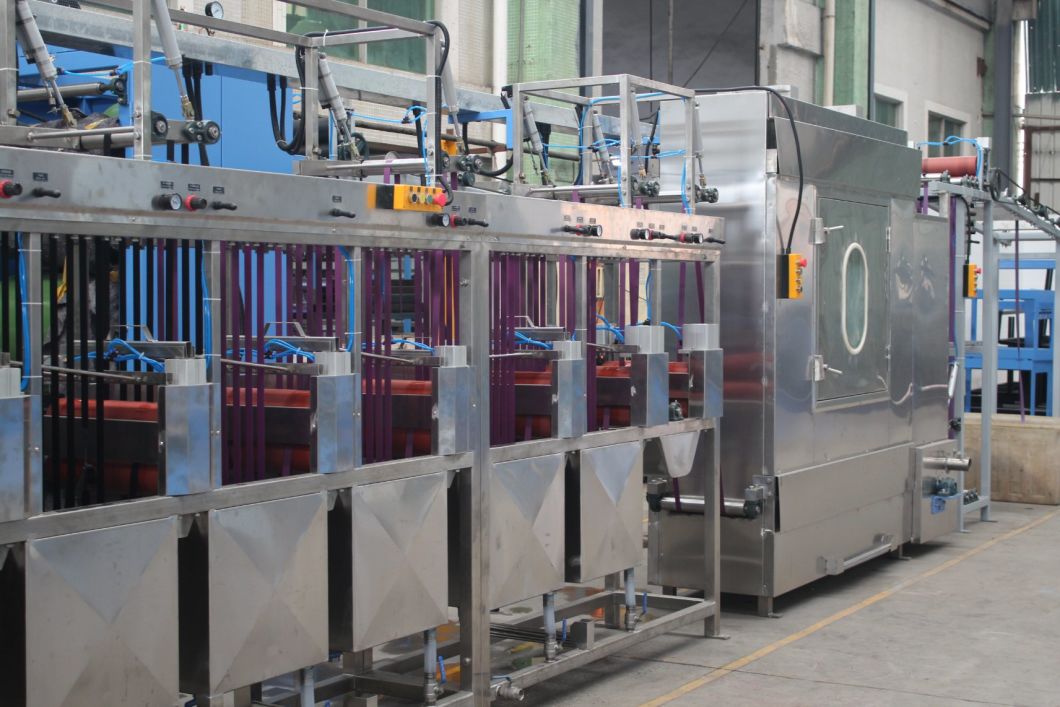

This is high speed luggage&Suitcase belts/webbing continuous dyeing machines for nylon webbings,and polyester webbings,safty webbings,lanyard ribbons,harness webbings and heavy duty webbings etc.



Features:

1) High efficiency

2) Power Energy Saving

3) Our patents.



4)Application: The dyeing machine is especially used for

Safty webbings,automobile safty belts,luggage&Suitcase belts/lanyard ribbons,satin ribbons with thickness below 1.5mm.



5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.



Heat System       electrical/LPG or natural gas/steam

Working Width(mm)  200/400/600

Thermofixation Chamber Tape Content(m) 45/60/60/80

Maximun Speed(m)   15/30/40

Maximun Number(m)  6/10/20

Control system        Manual/Computer control(PLC&Touch screen)

Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off

KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.


Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.
