    Satin Ribbons Continuous Dyeing&Finishing Machine

    Short Description:

    Basic Info Model NO.: KW-812-400 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Materials: Stainless Steel,Iron,Carbon Steel etc ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-812-400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Materials: Stainless Steel,Iron,Carbon Steel etc
    Power: 38kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Heating System: Electrical&LPG or Natural Gas&Steam
    Max Speed: 40m/Min
    Packaging Material: Woodencase & Plastic Membrane
    Drying Type: Hot Air
    Application: Satin Ribbon,Polyester Ribbon,Label Ribbon,Narrow
    Trademark: KINWAH
    Transport Package: FCL or LCL
    Specification: CE certification
    Origin: China
    HS Code: 84514000

    Product Description

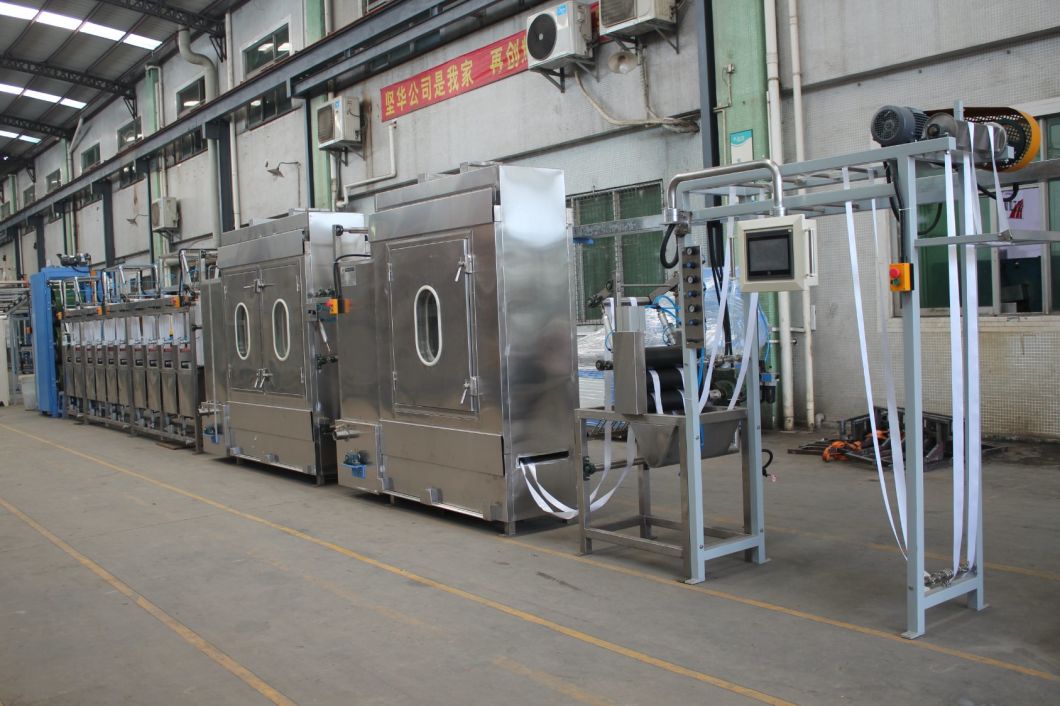

    Satin Ribbons Continuous Dyeing&Finishing Machine

    Product Description

    Item No:KW-812-400

    Size:    25000*1000*2400mm

    This is high speed satin ribbons/label ribbons continuous dyeing&finishing machine with high efficency and energy saving.



    Features:

    1) High efficiency

    2) Power Energy Saving

    3) Our patents.

    4)Application: The dyeing machine is especially used for dyeing polyester satin ribbons,label ribbons made from nylon,polyester with thickness below 1.2mm.

    5)Product capacity: 1-12 Pcs/time, 0-35meter/min/Pcs.

    Item







    Heat System

    electrical

    LPG or natural gas

    Steam

    Working Width(mm)

    200

    400

    600

    Thermofixation Chamber Tape Content(m)

    45/60

    80/90

    80/90

    Maximun Speed(m)

    15

    30

    40

    Maximun Number(m)

    6

    10

    20

    Control system

    Manual/PLC

    (PLC&Touch screen)



    Processes: Feed in-Pre washing-Pre dryer-dyeing groove-Infrared pre drying-thermofixation-washing tank-chemical groove-drying&finishing unit-cooling system-take off

    Our Services
    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing
    machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP,
    BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING
    CONCERN, STRETCHLINE, DUGOTEX SO ON.
    Company Information
    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
    Packaging & Shipping

    Covered by plastic membrane within full container or less container
    (woodencase)

    Satin Ribbons Continuous Dyeing&Finishing Machine
    Satin Ribbons Continuous Dyeing&Finishing Machine
    Satin Ribbons Continuous Dyeing&Finishing Machine
    Satin Ribbons Continuous Dyeing&Finishing Machine
    Satin Ribbons Continuous Dyeing&Finishing Machine
    Satin Ribbons Continuous Dyeing&Finishing Machine
