    Single Color Twill Tape Screen Printing Machine

    Short Description:

    Basic Info Model NO.: DS-301 Phase: 3 Phases Frequency: 50/60Hz Printing Side: Single Side Gross Power: 14kw Dimensions(L*W*H): 7000*1200*1300mm Weight:...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: DS-301
    Phase: 3 Phases
    Frequency: 50/60Hz
    Printing Side: Single Side
    Gross Power: 14kw
    Dimensions(L*W*H): 7000*1200*1300mm
    Weight: 1200kg
    Printing Linest: 3-8lines/Time
    Max Speed: 15m/Min /Line
    Printing Area: 300*600mm
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

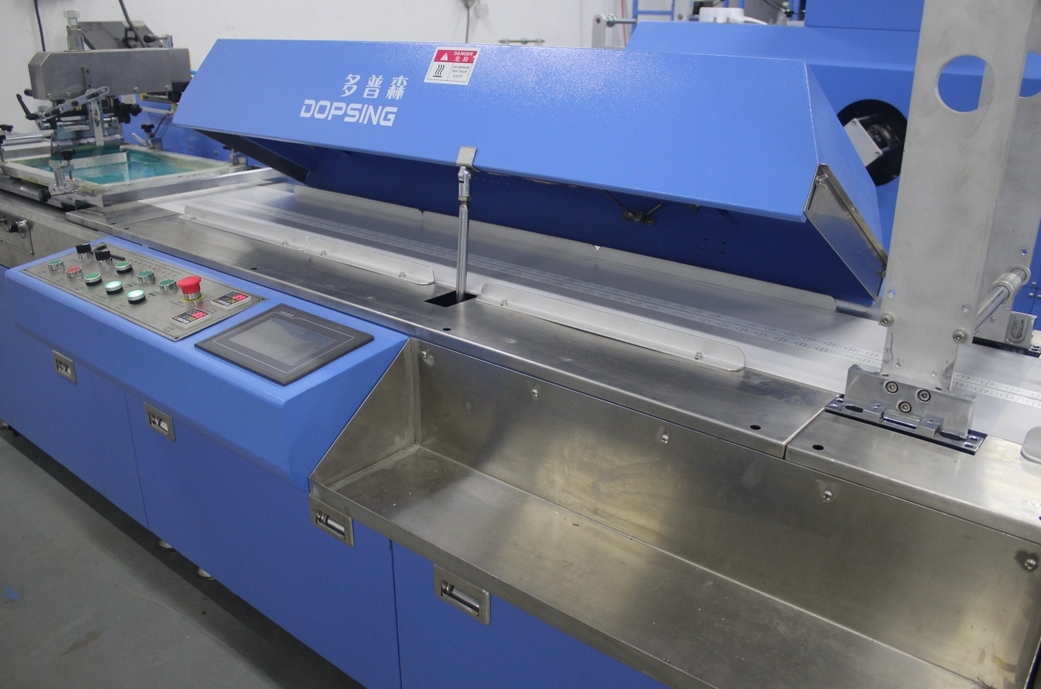

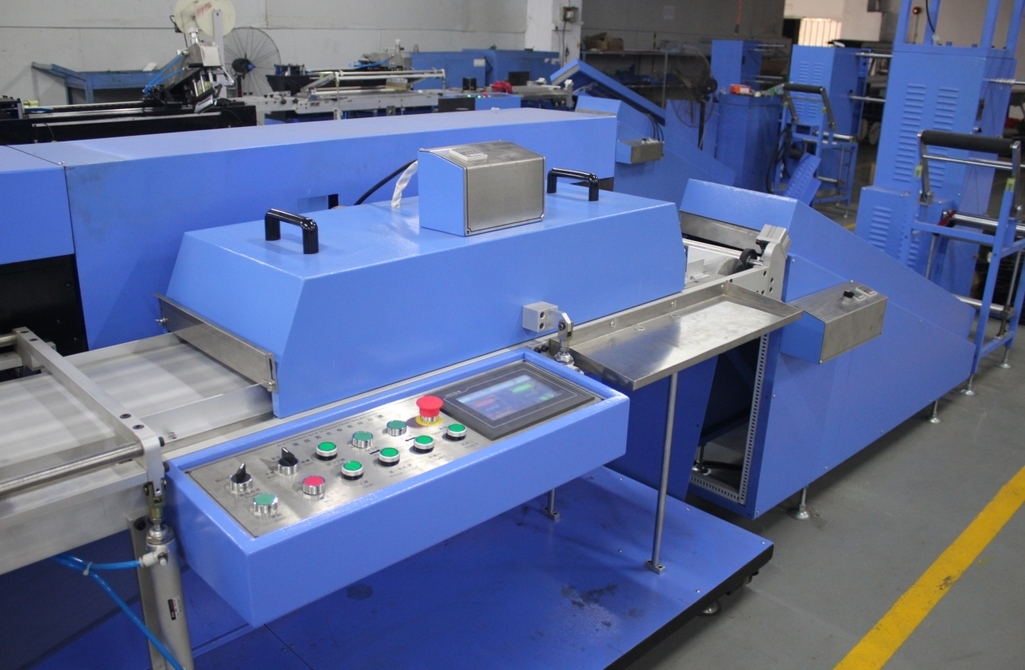

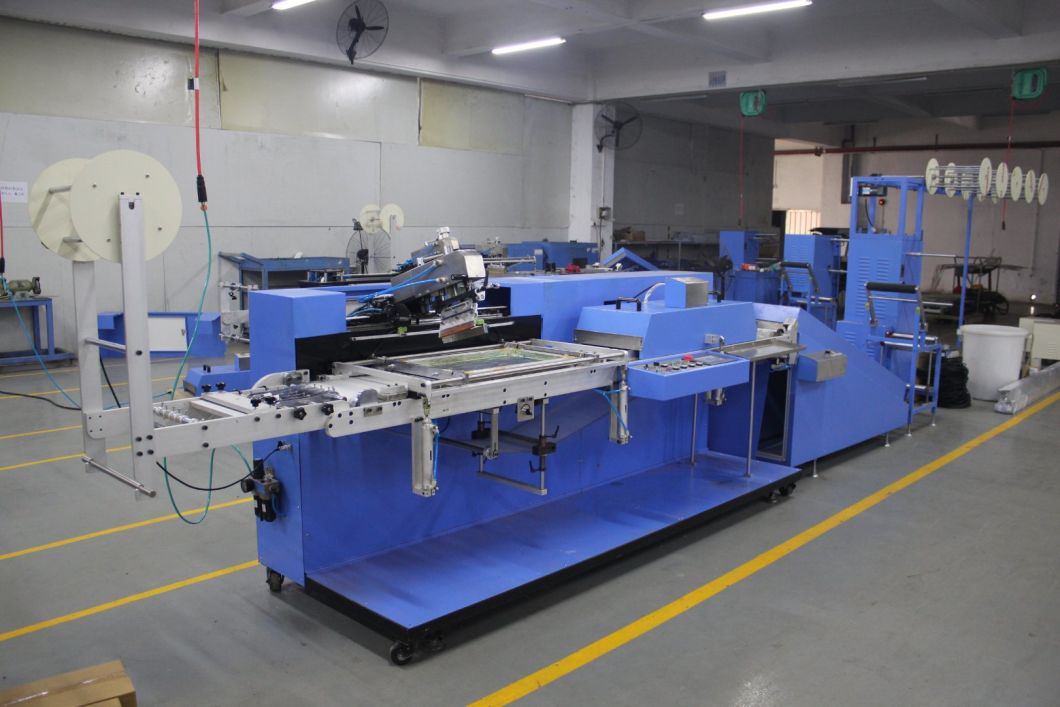

    Single Color Twill Tape Screen Printing Machine

    Product Description

    DS-301, It’s a kind of big production all kinds of narrow fabric such as labels, ribbons, elastic tapes ,PET film, laces,lanyards,cotton tape, elastic tape, webbing sling, small slice and so on all kinds of roll to roll material single colore Automatic screen printing machine (It’s our patents)

    Servo system

    Two long dryers for big production

    big printing area

    long convey belt to avoid frequency glue coating.

    dryers laid after printer is more convenient for production and machine operation and ribbons connection and so on.

    frame can be lift up for frame clean purpose.

    can print elastic tapes after installation of elastic tapes attachment.

    Come into Global market since the year of 2012.



    A,Description of Item: Automatic single color screen printing machine

    B,Model: DS-301-A

    C,Features & Functions

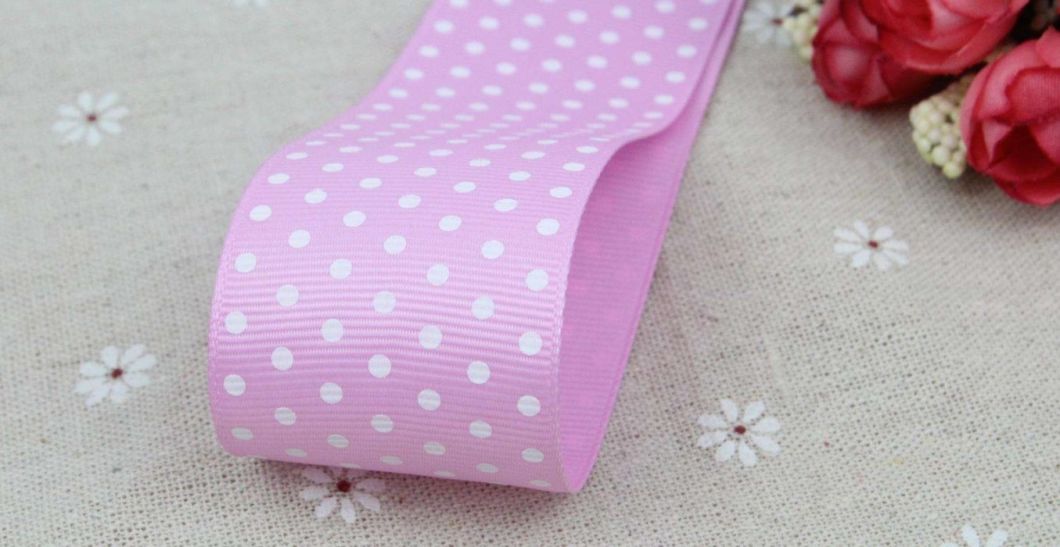

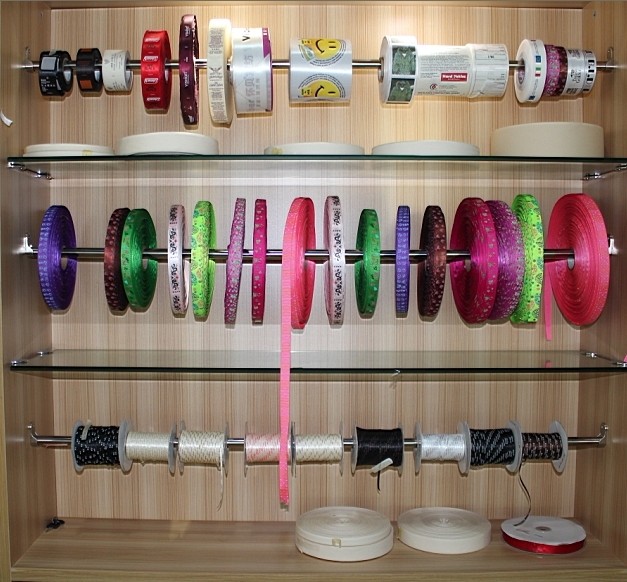

    1)Application material: print any kinds of roll to roll narrow fabric, such as label ribbons, satin ribbons, cotton tapes and so on.

    2)Precisely Print any roll to roll material with width<30CM.

    3)convey: powered by full auto servo Motor .Not by air pressure.

    4)One operator need only

    5)Frame can be automatic lift up for purpose of easy cleaning the screen. No need to take out frame from machine.

    5)Anti-wind device make the ribbon pulled into dryer after printing.

    6)free set up the printing times and the carry times on electronic Dryer lift while stop

    7)Most parts are made in Europe,Japan

    8)controlled by both computer and manual.

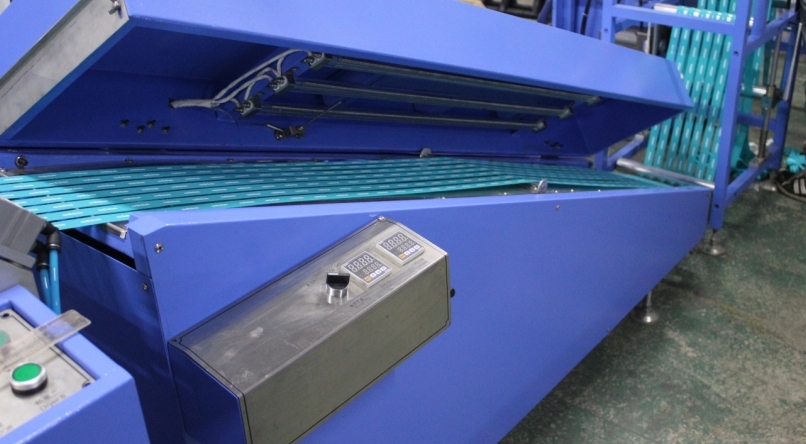

    9)Laid out 2 long dryers 1(meter +1.4meter) for bigger production.

    10)controlled by both computer and manual operation.

    11)laid out take off device for ribbons automatic winding into rolls.

    D,Technical Specification:

    1)Colore:1C

    2)Max. Printing Area:30CM*60CM

    3)Printing linest: 3LINES/3.5CM

    4)MAX. Speed /H.:15m/min/Line

    5)Max. Power:14Kw/380V/3P/50-60HZ

    6Machine Size: 7000*1200*1300mm





    Our Services

    Dopsing automatic screen printing machines are widely used,recogonized with

    long term cooperated with many partners,the world biggest and famous narrow
    fabric manufacturers are using our screen printing machines,such as
    PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes
    manufacturer STRETCHLINE and so on.



    Company Information



    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.



    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into

    KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.





    Packaging & Shipping

    Covered by plastic membrane within full container or less container

    (woodencase)
