Special Design for Garment Ribbons Dyeing And Finishing Machine - Nylon Elastic Tapes/Elastic Straps Continuous Dyeing Machine – Kin Wah

Short Description:

Basic Info Model NO.: KW-807-SJ400-A Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Driven Type: Electric ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

With our great management, potent technical capability and strict excellent handle procedure, we continue on to provide our customers with reputable top quality, reasonable selling prices and great providers. We purpose at becoming amongst your most trusted partners and earning your satisfaction for Elastic Tapes Silk Screen Printing Machine , Id Card Automatic Screen Printing Machine , Polyester Elastic Tapes Starching And Finishing Machine , should you have any query or wish to place an initial order please do not hesitate to contact us.

Special Design for Garment Ribbons Dyeing And Finishing Machine - Nylon Elastic Tapes/Elastic Straps Continuous Dyeing Machine – Kin Wah Detail:

Basic Info

Model NO.: KW-807-SJ400-A

Warranty: 1 Year

Customized: Customized

Condition: New

Machine Type: Dyeing&Finishing Machine

Driven Type: Electric

Power(W): 32kw

Phase: 3 Phases

Max Working Temperature: 100°c

Frequency: 50/60Hz

Heating System: Electrical&LPG or Natural Gas&Steam

Max Speed: 30m/Min

Drying Type: Hot Air Drying

Application: Elastic Tapes, Nylon Tapes,Narrow Fabric etc

Trademark: KINWAH

Transport Package: Full Container or Less Container with Film

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 894560000

Product Description

nylon elastic tapes/elastic straps continuous dyeing machine

Item No:KW-807-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine

Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it’s the best seller in 2013 .
5)laid out a new system of tension automatic control

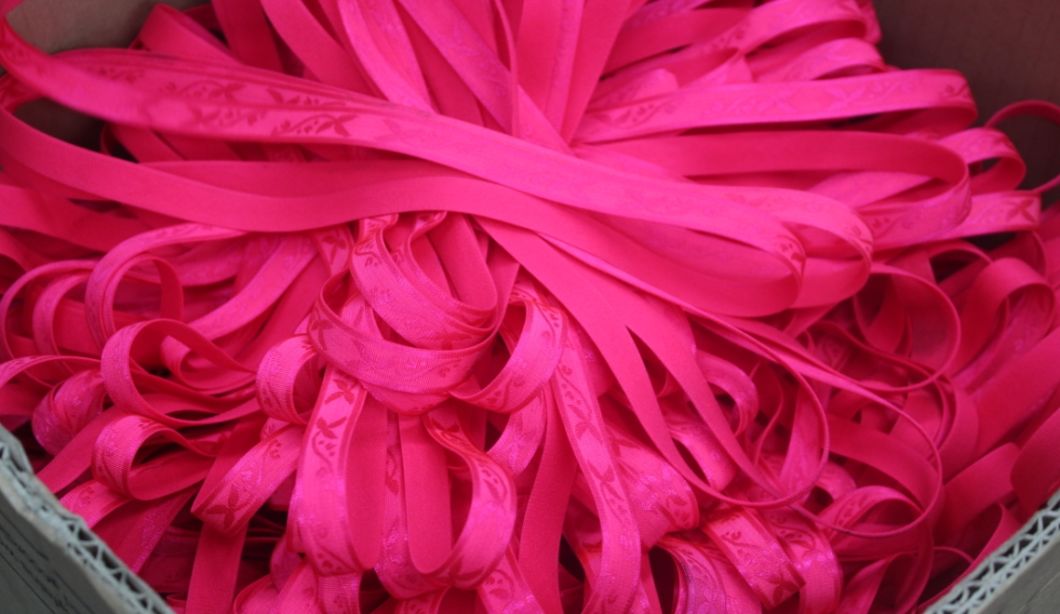

6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.

Item
Heat System	electrical	steam
Working Width(mm)	200	400	600
Thermofixation Chamber Tape Content(m)	45/60	80/90
Maximun Speed(m)	15	20	30
Maximun Number(m)	4	8	12
Control system	Manual/PLC

Option: J-Box Feed in device with individual tapes tension control

Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

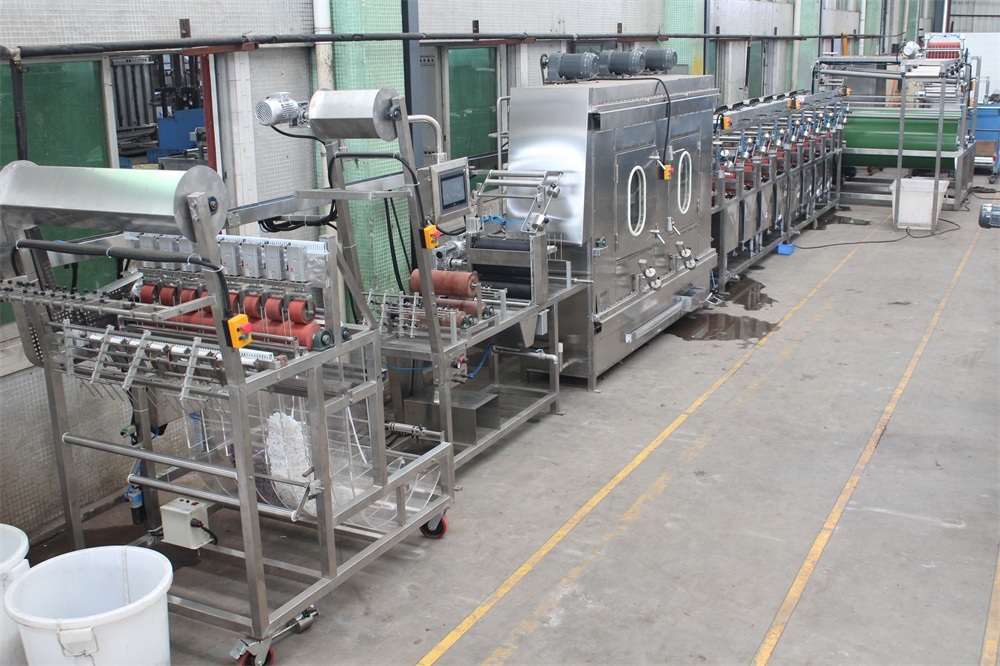

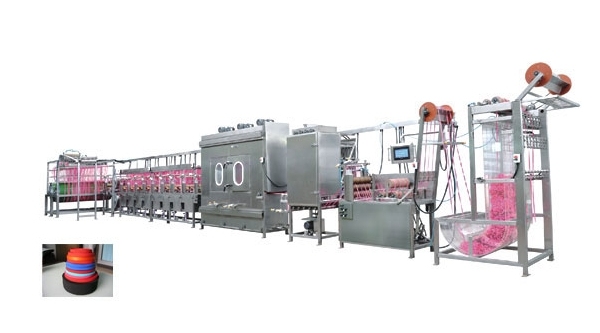

Nylon Elastic Tapes/Elastic Straps Continuous Dyeing Machine

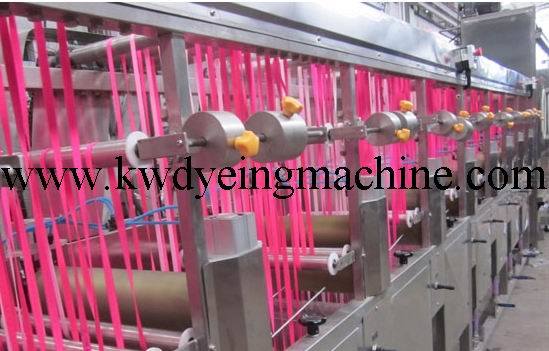

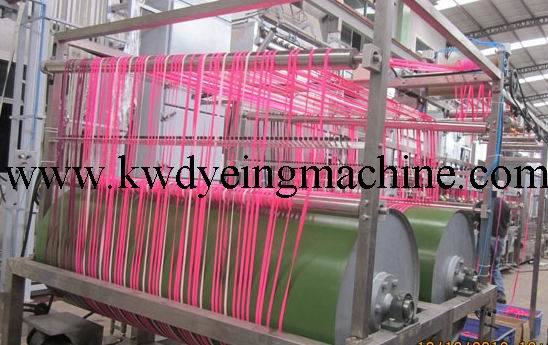

Product detail pictures:
