    Top Suppliers Automatic Flat Bed Silk Screen Printing Machine - Nylon Shoulder Tapes Continuous Dyeing Machine – Kin Wah Detail:

    Basic Info

    Model NO.: KW-807-SJ400-A
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Driven Type: Electric
    Power(W): 32kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Working Temperature: 100°c
    Heating System: Electrical&LPG or Natural Gas&Steam
    Max Speed: 30m/Min
    Drying Type: Hot Air Drying
    Application: Elastic Tapes, Nylon Tapes,Narrow Fabric etc
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Film
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 894560000

    Product Description

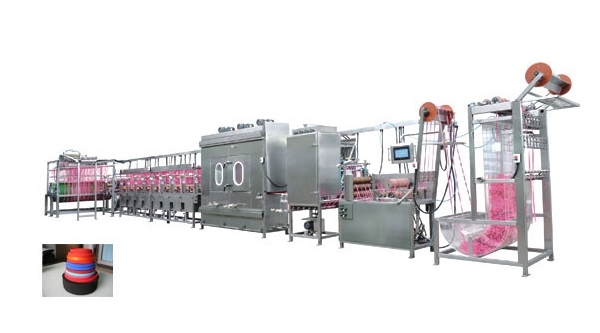

    Nylon Shoulder Tapes Continuous Dyeing Machine

    Item No:KW-807-SJ400-A
    Size:15000*2400*1000mm
    This is updated newest elastic tapes continuous dyeing machine

    Features:
    1)with PLC
    2)with  J-Box.
    3)our patents.
    4)it’s the best seller in 2013 .
    5)laid out a new system of tension automatic control
    6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.

    Item
    Heat System  electrical steam
    Working Width(mm)  200 400 600
    Thermofixation Chamber Tape Content(m) 45/60 80/90
    Maximun Speed(m)    15 20 30
    Maximun Number(m)   4 8 12
    Control system Manual/PLC


    Option: J-Box  Feed in device with individual tapes tension control

    Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

    Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Nylon Shoulder Tapes Continuous Dyeing Machine

    Nylon Shoulder Tapes Continuous Dyeing Machine
    Nylon Shoulder Tapes Continuous Dyeing Machine
    Nylon Shoulder Tapes Continuous Dyeing Machine
    Nylon Shoulder Tapes Continuous Dyeing Machine
    Nylon Shoulder Tapes Continuous Dyeing Machine

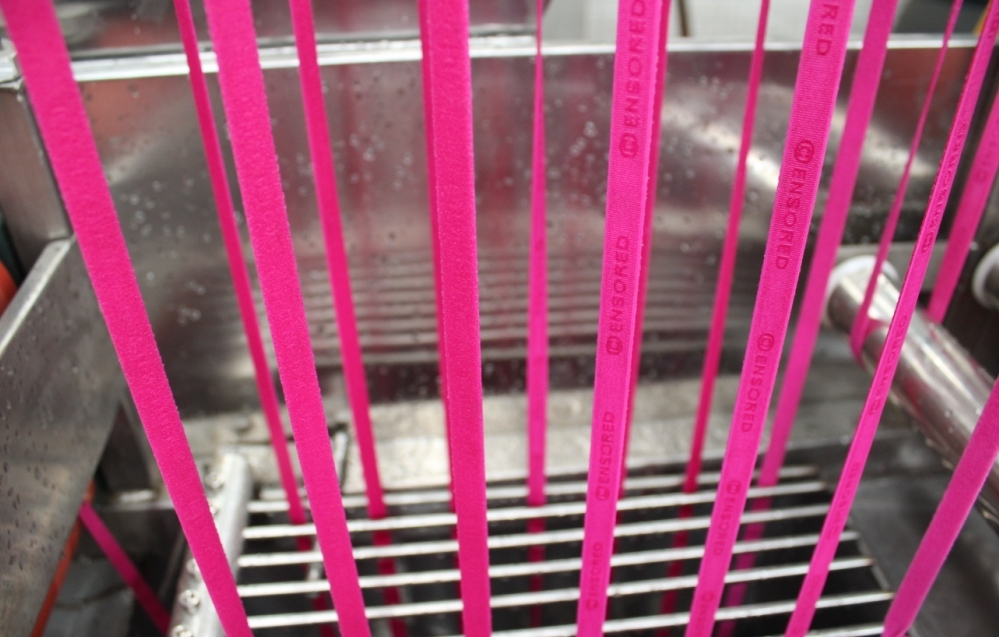

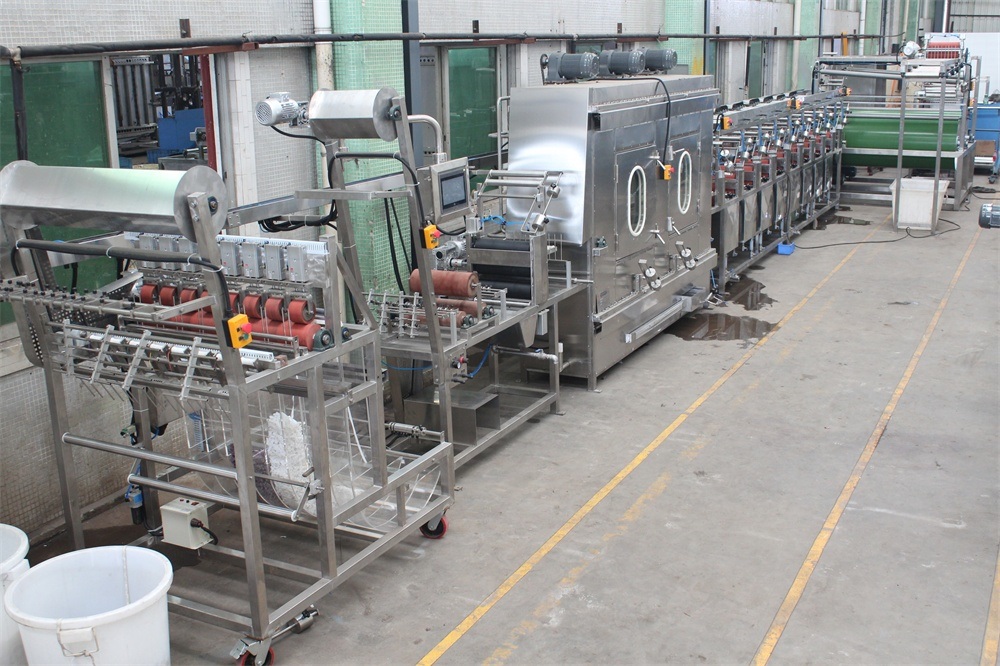

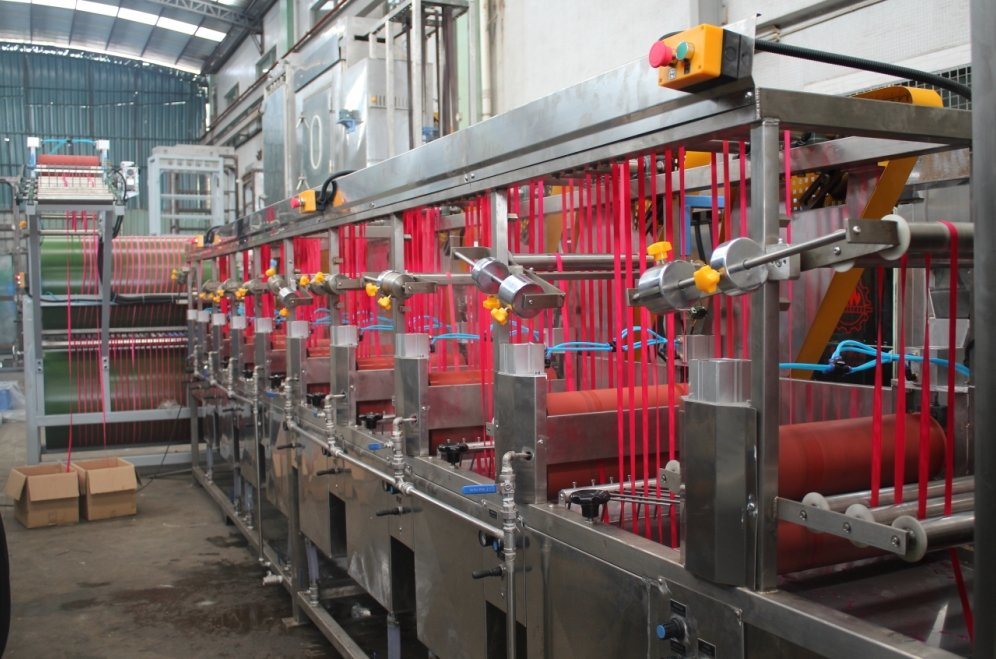

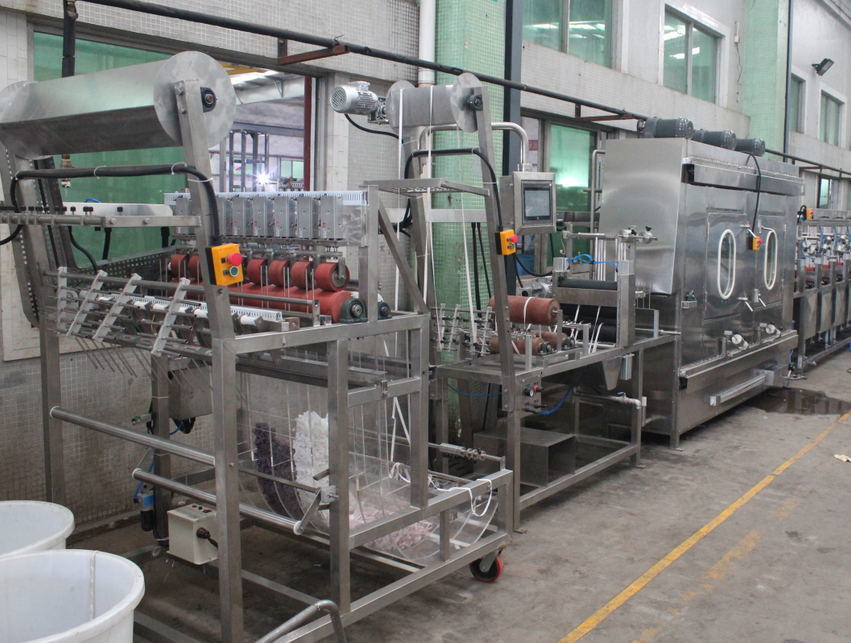

    Product detail pictures:
