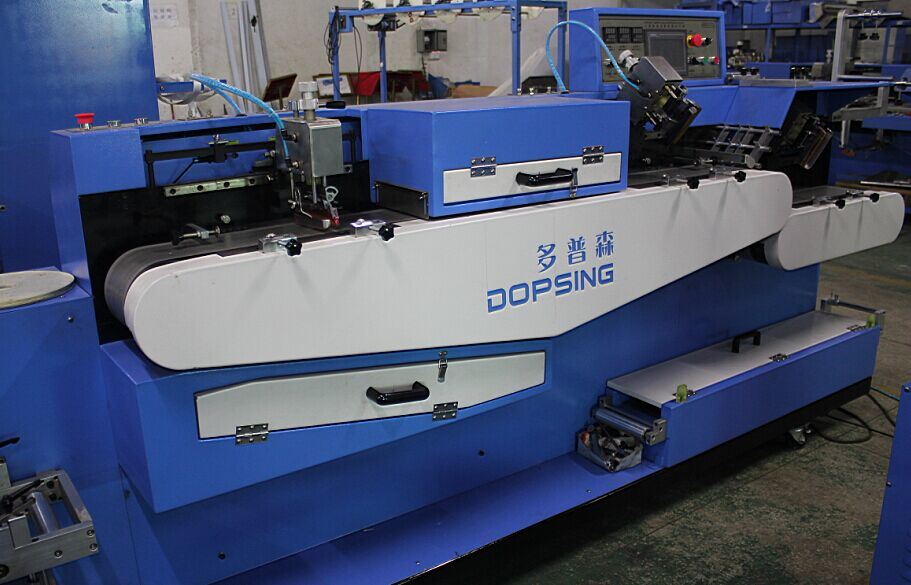

    Webbings Elastic Ribbons Silk Screen Printing Machine

    Short Description:

    Basic Info Model NO.: TS-150 Materials: Stainless Steel Machine Type: Screen Printing Machine Brand Name: Dopsing Condition: Brand New Driven Type: Electric ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: TS-150
    Materials: Stainless Steel
    Machine Type: Screen Printing Machine
    Brand Name: Dopsing
    Condition: Brand New
    Driven Type: Electric
    Frequency: 50/60Hz
    Max. Printing Area: 13cm*22cm
    Max Speed: 6m/Min/Line
    Printing Linest: 3lines/ Time
    Registration Precision: 0.05mm
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: yes
    Origin: China(Mainland)
    HS Code: 8443192290

    Product Description

    Economical care label automatic screen printing machine

    Product Description
    It’s a knid of MINI automatic label ribbon screen printing machine (It’s our patents)
    hight temperature ink printing
    print any kinds of high temperature ink,such as plastisol,silicon,pomp ink

    double side printing
    precisely print multi-colores design,and multi-lines feeding.
    operators
    one operator need only
    working situation
    a workspace with 3 to 4 Square meters. you can move easily

    Total Colors Model Single/Both Sides Printing Lines Max Printing Area Dimension
    3 C 2+1 Both 3Lines/3.5cm 130X220mm 2700X850X1600mm
    3+0 Single 3Lines/3.5cm 130X220mm 3155X850X1600mm
    4 C 3+1 Both 3Lines/3.5cm 130X220mm 3850X850X1600mm


    Steel belt + Servo system
    Multi-colore print, including 3+0, 2+1 and 3+1
    single side or doulbe side printing
    came into the global market in 2010

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.

    Our Services
    Dopsing automatic screen printing machines widely used,recogonized with long term cooperated with many the world biggest and famous narrow fabric manufacturers are using our screen printing machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.

    Company Information
    Dopsing Machinery Enterprise is subsidiary to KINWAH GROUP which emerged into the Asian biggest narrow fabric continuous dyeing and finishing machines manufacturer DONGGUAN CITY KINWAH MACHINERY CO.,LTD in 2011.

    Dopsing has specialized in developping &researching, manufacturing narrow fabric screen printing machines more than 10years, The FIRST SET FULL AUTOMATIC electronic screen printing machine for narrow fabric IN CHINA was born in Dopsing(former name is LEADTECH  which is belong to LEADER GROUP COMPANY In HK ).

    it  has gained over than 10 patents from teneration 1 to generation 3 of computerized screen printing machine. it enjoyed the world advanced technology  in auto screen printing machines field.

    Packaging & Shipping
    Covered by plastic membrane within full container or less container
    (woodencase)
