Wholesale Shoulder Tapes Dyeing And Finishing Machine - Nylon Elastic Tapes Continuous Dyeing Machine with Normal Temperature – Kin Wah

Short Description:

Basic Info Model NO.: KW-806-SJ400-A Warranty: 1 Year Customized: Customized Condition: New Brand Name: Kin Wah Machine Type: Dyeing&Finishing Machine ...

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

"Based on domestic market and expand overseas business" is our development strategy for Cotton Ribbons Screen Printing Machine , Satin Ribbons Automatic Screen Printing Machine , 8 Drums Starching And Finishing Machine , We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

Wholesale Shoulder Tapes Dyeing And Finishing Machine - Nylon Elastic Tapes Continuous Dyeing Machine with Normal Temperature – Kin Wah Detail:

Basic Info

Model NO.: KW-806-SJ400-A

Warranty: 1 Year

Customized: Customized

Condition: New

Brand Name: Kin Wah

Machine Type: Dyeing&Finishing Machine

Power(W): 32kw

Max Working Temperature: 180°c

Driven Type: Electric

Phase: 3 Phases

Frequency: 50/60Hz

Max Speed: 30m/Min

Heating System: Electrical&Steam Heating

Drying Type: Hot Air

Trademark: KINWAH

Transport Package: Full Container or Less Container with Plastic Mem

Specification: CE certification

Origin: Dongguan, Guangdong

HS Code: 894560000

Product Description

Nylon Elastic Tapes Continuous Dyeing Machine with normal temperature

Item No:KW-806-SJ400-A
Size:15000*2400*1000mm
This is updated newest elastic tapes continuous dyeing machine

Features:
1)with PLC
2)with J-Box.
3)our patents.
4)it’s the best seller in 2013 .
5)laid out a new system of tension automatic control
6)Application: The dyeing machine is especially used for dyeing nylon elastic tapes(elastic bands,elastic shoulder tapes etc) into any color and polyester elastic tapes into light color laces.

Item
Heat System	electrical	steam
Working Width(mm)	200	400	600
Thermofixation Chamber Tape Content(m)	45/60	80/90
Maximun Speed(m)	15	20	30
Maximun Number(m)	4	8	12
Control system	Manual/PLC

Option: J-Box Feed in device with individual tapes tension control

Processes: J-Box-Feed in-dyeing groove-Steam chamber-washing tank-Pre-dryer-chemical groove-drying&finishing unit-take off

Options:manual control,PLC(touch screen)control,feed in device with individual tapes tension control.

Nylon Elastic Tapes Continuous Dyeing Machine with Normal Temperature

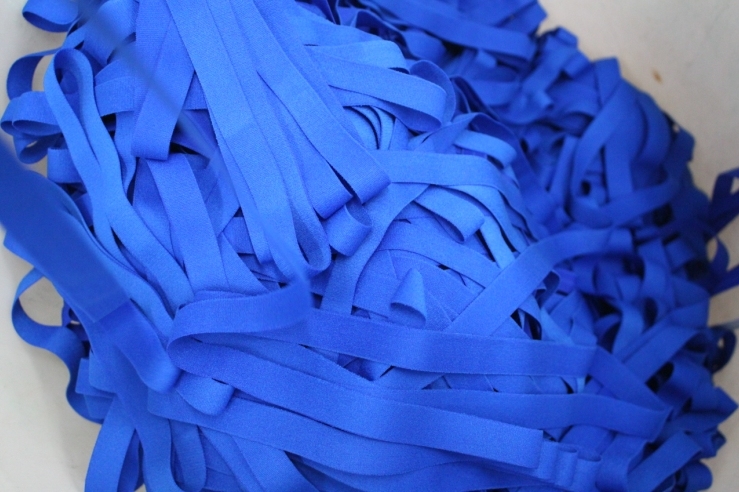

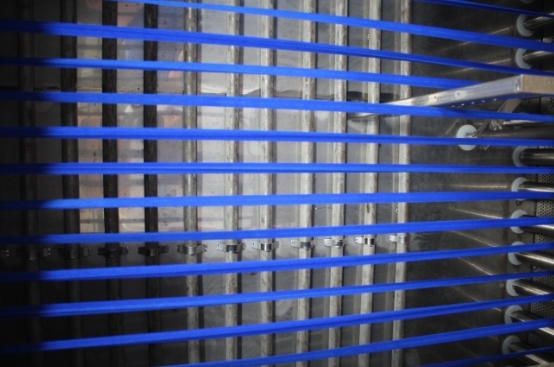

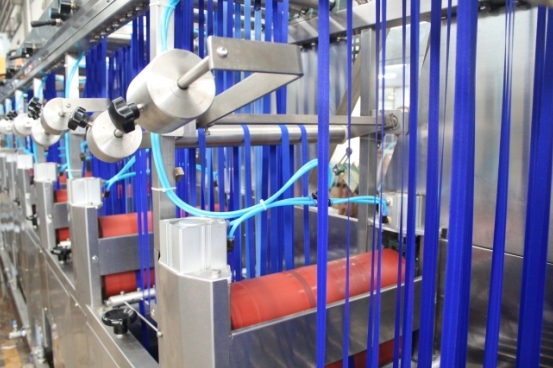

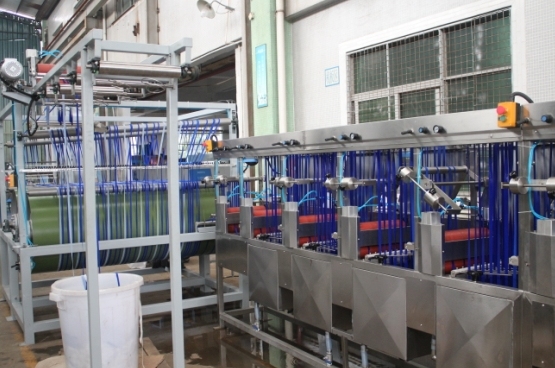

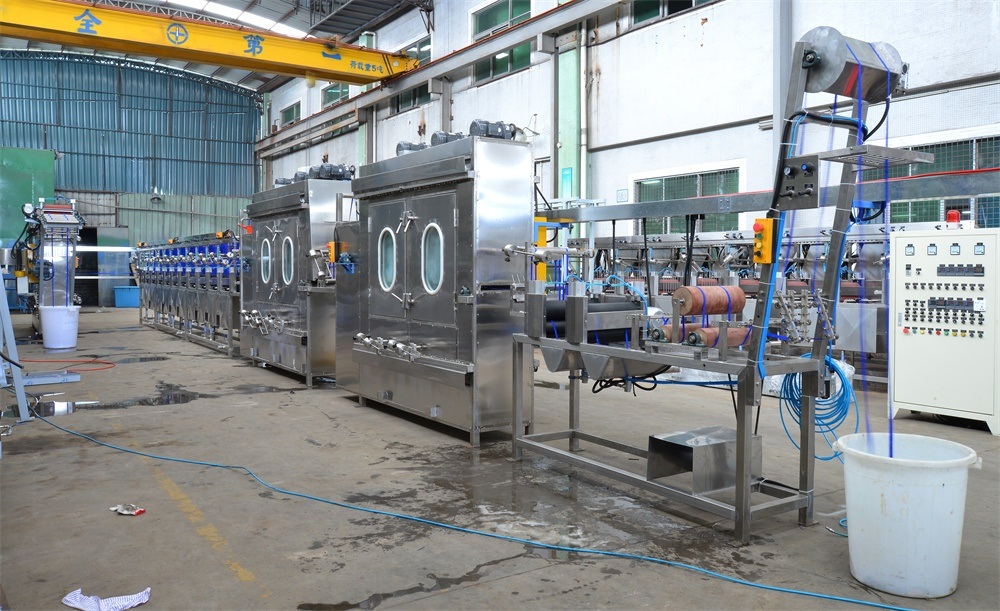

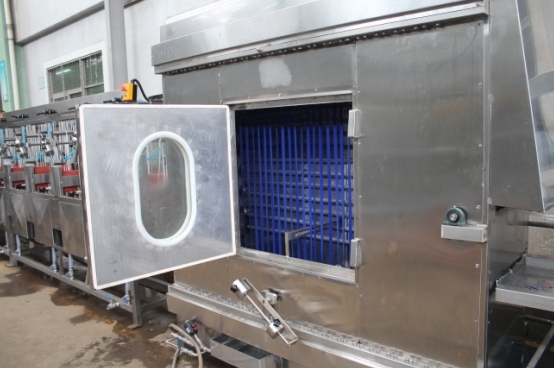

Product detail pictures:

Our aim would be to fulfill our shoppers by offering golden company, very good value and good quality for Wholesale Shoulder Tapes Dyeing And Finishing Machine - Nylon Elastic Tapes Continuous Dyeing Machine with Normal Temperature – Kin Wah, The product will supply to all over the world, such as: Spain , Doha , Hyderabad , With the goal of "zero defect". To care for the environment, and social returns, care employee social responsibility as own duty. We welcome friends from all over the world to visit and guide us so that we can achieve the win-win goal together.
