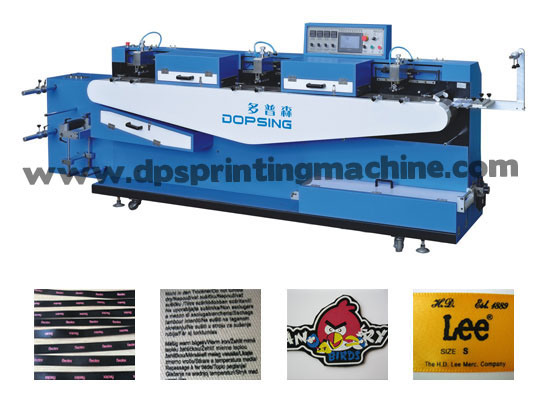

    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)

    Short Description:

    Basic Info Model NO.: TS-150 Main Part Material: Stainless Driven Type: Electric Gross Power: 6-11kw Phase: 3 Phases Frequency: 50/60Hz Printing Area: 1...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: TS-150
    Main Part Material: Stainless
    Driven Type: Electric
    Gross Power: 6-11kw
    Phase: 3 Phases
    Frequency: 50/60Hz
    Printing Area: 150*300mm
    Printing Linest: 3lines/Time
    Max Speed: 6m/Min/Line
    Registration Precision: 0.05mm
    Printing Side: Single/Double Sides
    Trademark: DOPSING
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: Dongguan, Guangdong
    HS Code: 8443192290

    Product Description

    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)

    Advantage:
    1. Using Stainless steel convey belt instead of traditional convey to make register color very precisely.
    2. Standard colour: 2+1 (front side 2 -colours, back side 1 colour printing), this model we can customise as the requirement of our client.
    3. Small in size, and not occupy your much room, dimention only 2.95M * 0.65M * 1.65M. Easy to install at any place.
    4. Full automatic, it is controlled by a servo-system. Two infrared ovens.

    5. High efficiency, save your time and your labour cost. Max Speed can up to 28 Times/Min.
    6. Good thermostability with stainless steel belt convey, it can print any kinds of high temperature ink, such as plastisol, silicon, etc.
    7. Multi tapes printed at one time.
    8. Rational Price depend on how many colours do you want to print.
    9. Long service life, if maintainance proper, its service life can up to more than 8 years.


    Total Colors Model Single/Both Sides Printing Lines Max Printing Area Dimension

    2 C 1+1 Both 3Lines/3.5cm 150X300mm 2200X850X1600mm
    2+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    3 C 2+1 Both 3Lines/3.5cm 150X300mm 2700X850X1600mm
    3+0 Single 3Lines/3.5cm 150X300mm 3155X850X1600mm
    4 C 3+1 Both 3Lines/3.5cm 150X300mm 3850X850X1600mm
    4+0 Single 3Lines/3.5cm 150X300mm 4760X850X1600mm
    It can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.
    It’s widely usded by the world biggest narrow fabric printing manufacturers,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/STRETCHLINE and so on.


    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.



    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

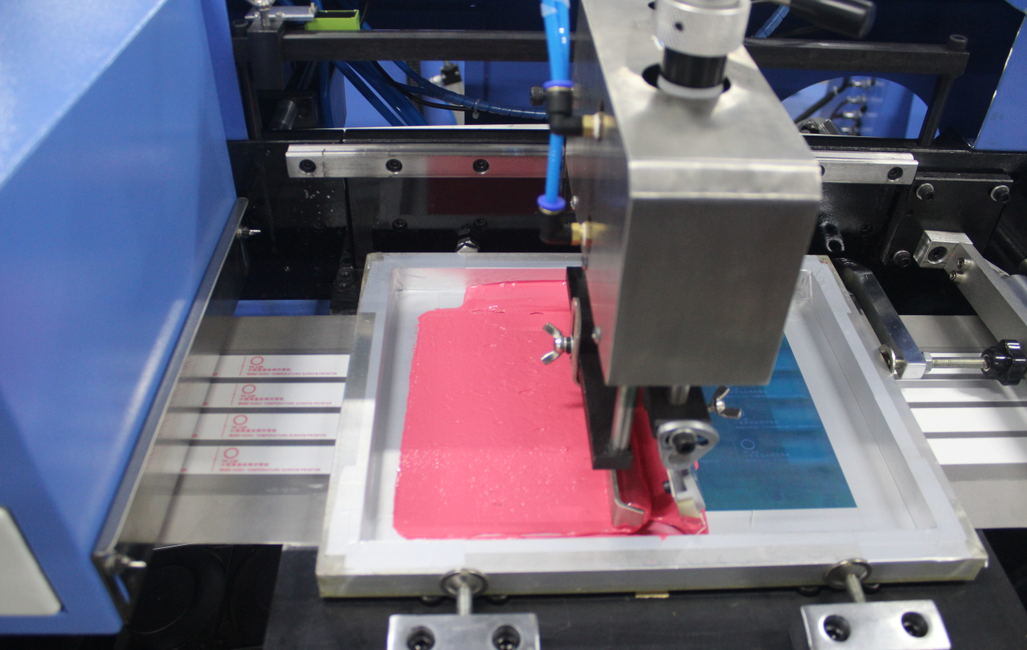

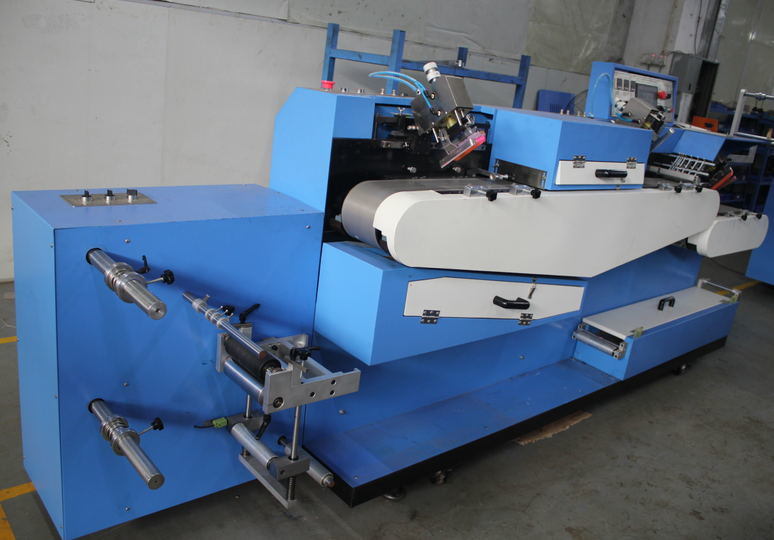

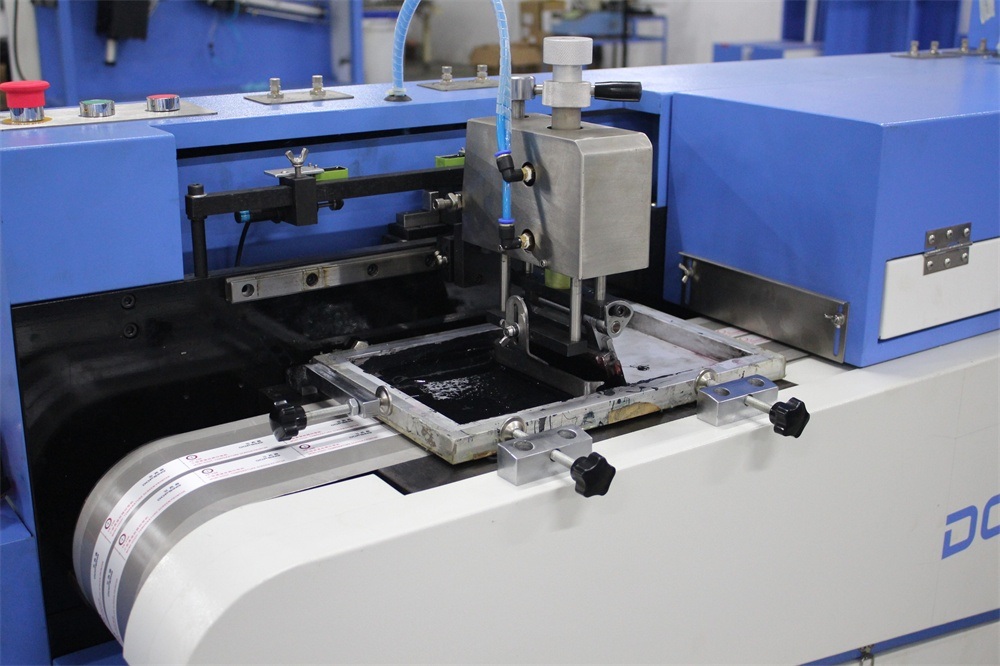

    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
    Auto Servo High Temperature Screen Printing Machine (3+0) (TS-150)
