    Automatic Fabric Label Silk Screen Printing Machine Roll to Roll

    Short Description:

    Basic Info Model NO.: SPE-3000S Certification: CE After-Sales Service Provided: Engineers Available to Service Machinery Overseas Automatic Grade: Automatic Packaging Material: Wooden Case&Plastic Membrane ...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: SPE-3000S
    Certification: CE
    After-Sales Service Provided: Engineers Available to Service Machinery Overseas
    Automatic Grade: Automatic
    Packaging Material: Wooden Case&Plastic Membrane
    Driven Type: Electric
    Voltage: 380V
    Power: 40kw
    Dimension: 21500*1000*1300mm
    Net Weight: 800kg
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China
    HS Code: 8443192290

    Product Description

    Automatic Fabric Label Silk Screen Printing Machine Roll to Roll
    Product Description

     DOPSING SPE3000S,



    Servo system +Sensor+Screw Rod+Tension Controller

    Muti-color print 1C-8C

    single side or double side printing

    Come into Global market since the year of 2003.

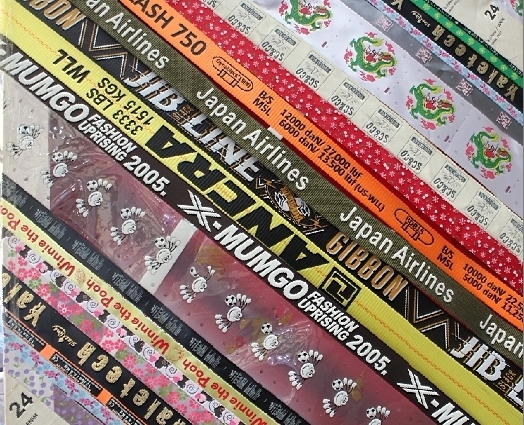

    it can print any kind of roll to roll material, such as label ribbons,satin ribbons,lanyard ribbons,elastic tapes, heat transfer film,shoes laces, heavy duty webbings and so on.



    Total Colors

    Max Printing Area

    Registration Precision

    Printing Speed

    Max.Power

    Dimension




    2 C

    300X600mm

    0.05mm

    10m/min

    16KW/380V/70A

    9500X1000X1300mm




    3 C

    300X600mm

    0.05mm

    10m/min

    21KW/380V/80A

    12500X1000X1300mm




    4 C

    300X600mm

    0.05mm

    10m/min

    25KW/380V/100A

    15500X1000X1300mm




    5 C

    300X600mm

    0.05mm

    10m/min

    32KW/380V/120A

    18500X1000X1300mm




    6 C

    300X600mm

    0.05mm

    10m/min

    40KW/380V/150A

    21500X1000X1300mm






    Model: SPE-3000S-3C

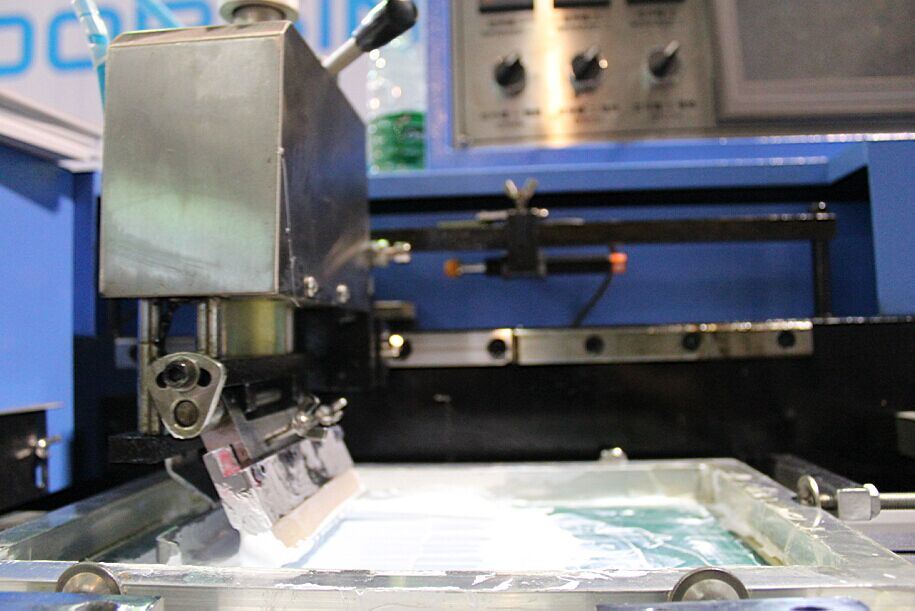

    Precise printing
    1)powered by full automatic Servo Moto with a Ball-Screw-Assemblies instead of air pressure.
    2)Adjusting printing position by Auto Sensors system instead of handcraft.
    3)Tension controller and the brake make the conveying exactly
    Functions:
    1)Muti-color printing, colours: This model has 1c, 2c, 3c, 4c.
    2)Over printing for more colors, it can print 5C~8C too
    3)Both sides printing several trips at one time
    4)slice printing
    5)Micro adjusting meter for frame adjusting automatically.
    6)Anti-wind device makes the ribbon pulled into dryer after printing.
    7)Infrared dryer and heater make the any kinds ink dry enough.
    8)Free set up the printing times and the carry times on electronic touch screen.
    9)Several sensors tracing the situation of the feeding materials.
    10)Dryer lift while the machine stopping
    11)Most core parts import from Europe&Japan.

    Good after service, guarantee time 12 months, and we have professional engineers to install the machine for you and train
    Your staffs until they master the machine. All of this is free.



    Our Services

    Dopsing automatic screen printing machines are widely used,recogonized
    with long term cooperated with many partners.the world biggest and
    famous narrow fabric manufacturers are using our screen printing
    machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL,
    Elastic tapes manufacturer STRETCHLINE and so on.



    Company Information

    DOPSING Machinery Technology Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&label printing machine and mini High-Temperature Ribbon Screen Printer,label slitting machine,all are for fabric label and satin ribbon,lanyard,cotton tape etc.As the leader of the narrow fabric screen printing equipments,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.



    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co.,Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing. it  has gained over than 10 patents from generation 1 to generation 3 of computerized screen printing machine.

    Packaging & Shipping

    Covered by plastic membrane within full container or less container

    (woodencase)
