Product Description

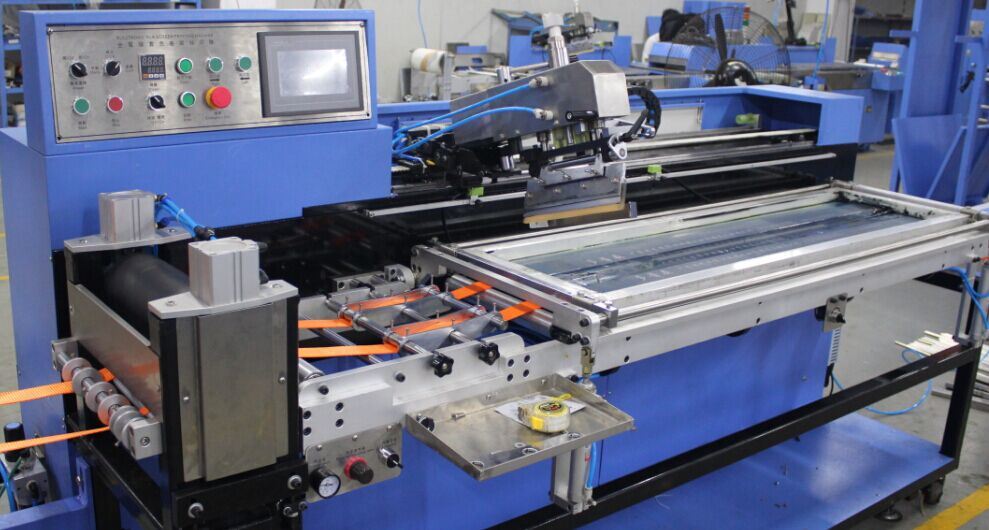

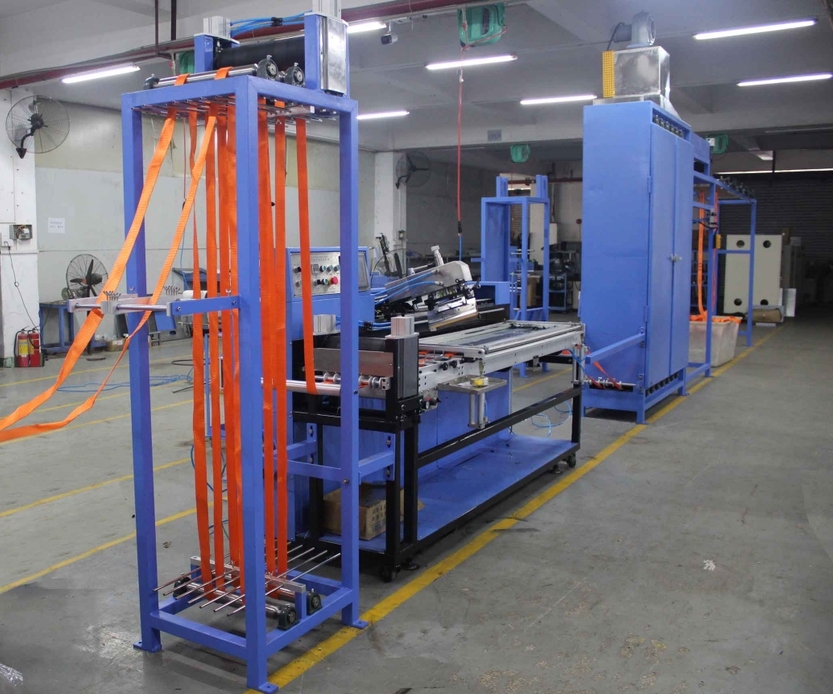

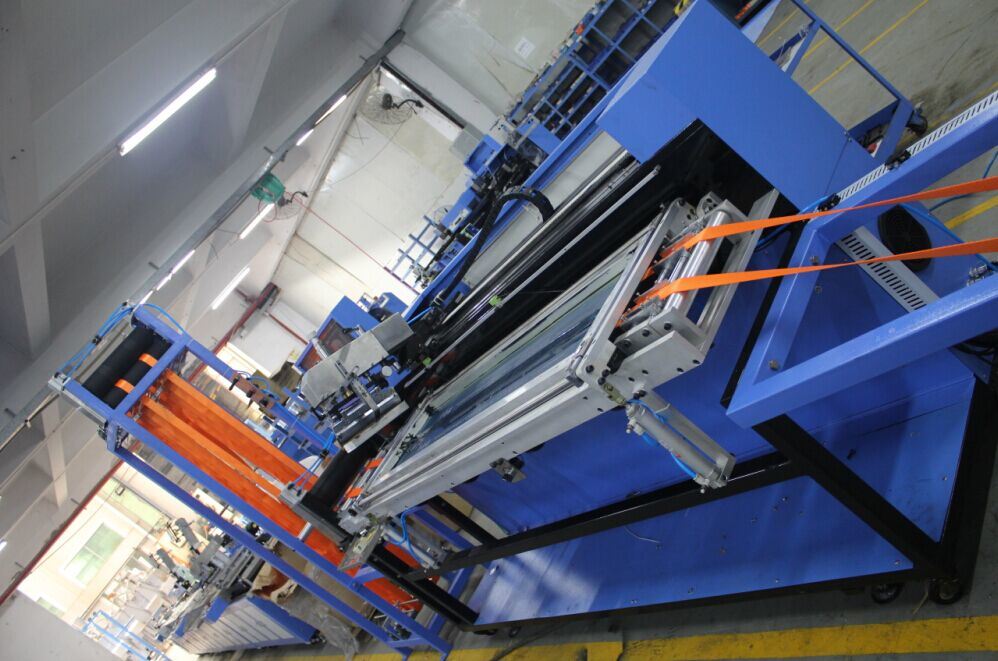

This is a kind of automatic textile lift slings webbings printing machine in screen printing type, with PLC and touch screen

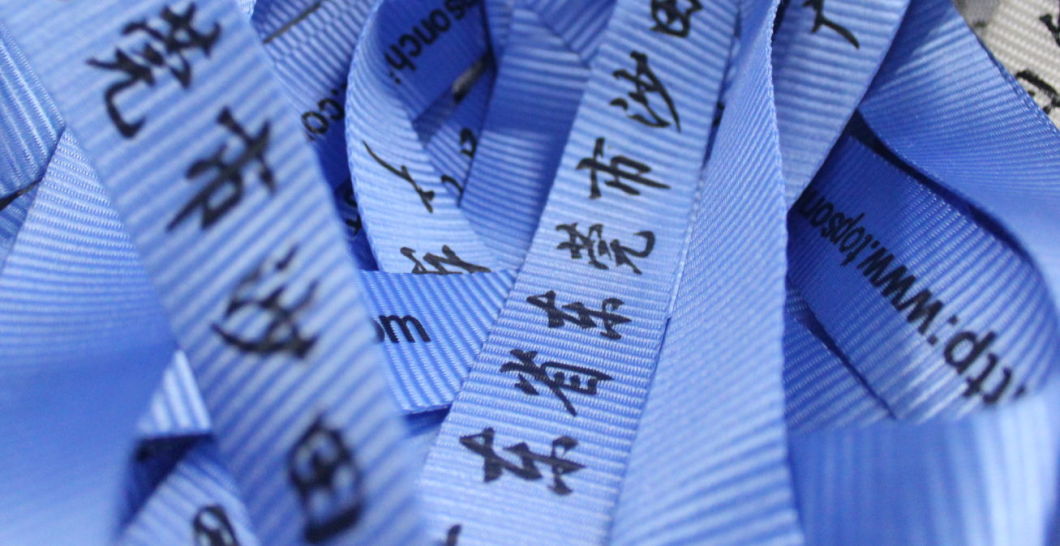

1)Application material: print any kinds of roll to roll webbings, such as seatbelt webbings, tie down straps, luggage and suitacase webbings and so on.

2)Precisely Print any roll to roll material with width<30CM.

3)convey: powered by full auto servo Motor .Not by air pressure.

4)One operator need only

5)Anti-wind device make the ribbon pulled into dryer after printing.

6)free set up the printing times and the carry times on electronic Dryer lift while stop

7)Most parts are made in Europe,Japan

8)controlled by both computer and manual.

D,machine configuration:

1) Feed in :1set frame

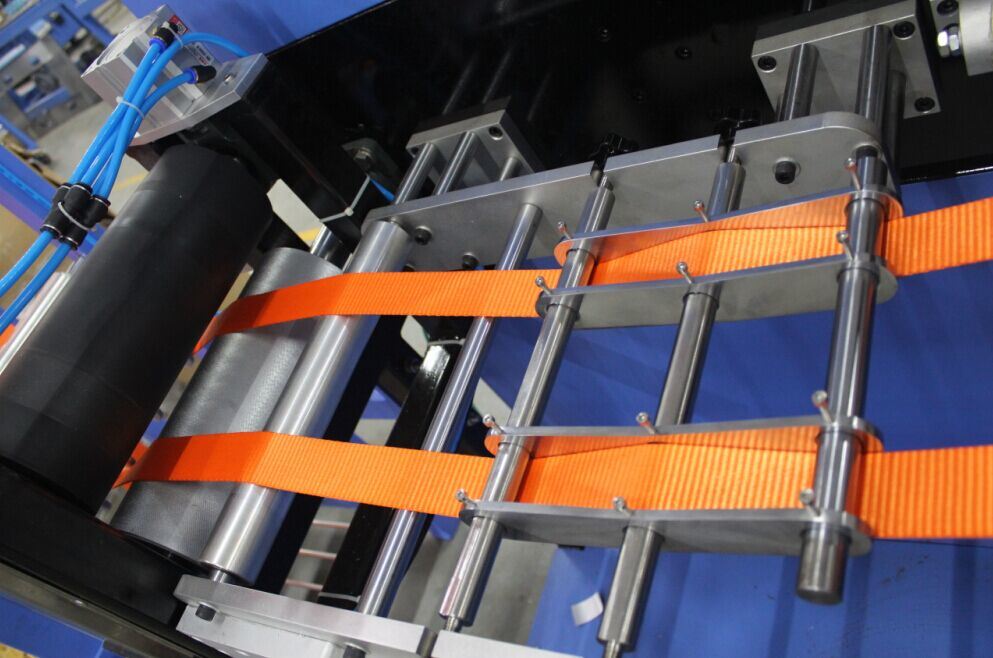

2) webbings rollers guiding device:1set with frame.

3) printer:1set

4)Dryer system: 1set

1)with tape content of 20meters tape content

2)heated with electrical

3)with temperature control, temperature is adjustable

4)Laid out air blower for heating webbings .

5) take off device:1set 3group of take off wheels for 6 webbings take off purpose

E. Technical specification:

1)Colore:1C

2)Max. Printing Area:30CM*130CM

3)Printing linest: 1-6LINES/ TIME

4)MAX. Speed /H.:10M/Line/Minute

5)Max. Power:20KW/380V/3P/50 Hz

Remark:1) Inverter:MISTUSBISH

       2)PLC: MISTUSBISH or AB(America)
