    Luggage Webbings Automatic Screen Printing Machine

    Short Description:

    Basic Info Model NO.: DS-302 System supported: PLC Brand Name: Dopsing Place of Origin: Guangdong, China Model Number: Ds-302 Voltage: 380V Gross Power:...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: DS-302
    System supported: PLC
    Brand Name: Dopsing
    Place of Origin: Guangdong, China
    Model Number: Ds-302
    Voltage: 380V
    Gross Power: 20kw
    Dimensions(L*W*H): 8000mm * 600mm*1500mm
    Weight: 1000kgs
    Printing Area: 260*1300mm
    Registration Precision: 0.05mm
    Max Speed: 10m/Line/Min
    Trademark: Dopsing
    Transport Package: Wooden Box
    Specification: CE certification
    Origin: China
    HS Code: 8443192290

    Product Description

    Luggage Webbings Automatic Screen Printing Machine DS-302

    Product Description

    This is a kind of automatic textile lift slings webbings printing machine in screen printing type, with PLC and touch screen
    1)Application material: print any kinds of roll to roll webbings, such as seatbelt webbings, tie down straps, luggage and suitacase webbings and so on.
    2)Precisely Print any roll to roll material with width<30CM.
    3)convey: powered by full auto servo Motor .Not by air pressure.
    4)One operator need only
    5)Anti-wind device make the ribbon pulled into dryer after printing.
    6)free set up the printing times and the carry times on electronic Dryer lift while stop
    7)Most parts are made in Europe,Japan
    8)controlled by both computer and manual.
    D,machine configuration:
    1) Feed in :1set frame
    2) webbings rollers guiding device:1set with frame.
    3) printer:1set
    4)Dryer system: 1set
    1)with tape content of 20meters tape content
    2)heated with electrical
    3)with temperature control, temperature is adjustable
    4)Laid out air blower for heating webbings .
    5) take off device:1set 3group of take off wheels for 6 webbings take off purpose
    E. Technical specification:
    1)Color:1C
    2)Max. Printing Area:30CM*130CM
    3)Printing linest: 1-6LINES/ TIME
    4)MAX. Speed /H.:10M/Line/Minute
    5)Max. Power:20KW/380V/3P/50 Hz
    Remark:1) Inverter:MISTUSBISH
           2)PLC: MISTUSBISH or AB(America)

    Our Services
    Dopsing automatic screen printing machines widely used,recogonized with long term cooperated with many the world biggest and famous narrow fabric manufacturers are using our screen printing machines,such as PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL, Elastic tapes manufacturer STRETCHLINE and so on.

    Company Information

    DOPSING Machinery Co.,Ltd is dedicated in producing narrow fabric screen printing machine,The tech team have more than 12 years design and management experience.The New type screen printing machine has gained over 10 patents.We supply Auto Roll to Roll screen ribbon&Label printing machine and mini High-Temperature Ribbon Screen Printer,all are for fabric label and ribbon screen printing.As the professional narrow fabric screen printing machine manufacturer,We have many oversea partners develop market together. Such as STRETCHLINE/PAXAR/AVERY-DENISSION/SML/ESQUEL/SHORE TO SHORE/ITL/FINOTEX/MAHEEN LABEL/DEKKO/LONGRIVER etc.

    2011,DOPSING joined into the professional narrow fabric continuous dyeing and finishing machine manufacturer Dongguan City Kin Wah Machinery Co., Ltd.And moved into KINWAH Industrial park,covering an area of more than 2000 square meters for the automatic screen printer manufacturing,researching developing together with marketing.


    Packaging & Shipping
    Covered by plastic membrane within full container or less container
    (woodencase)

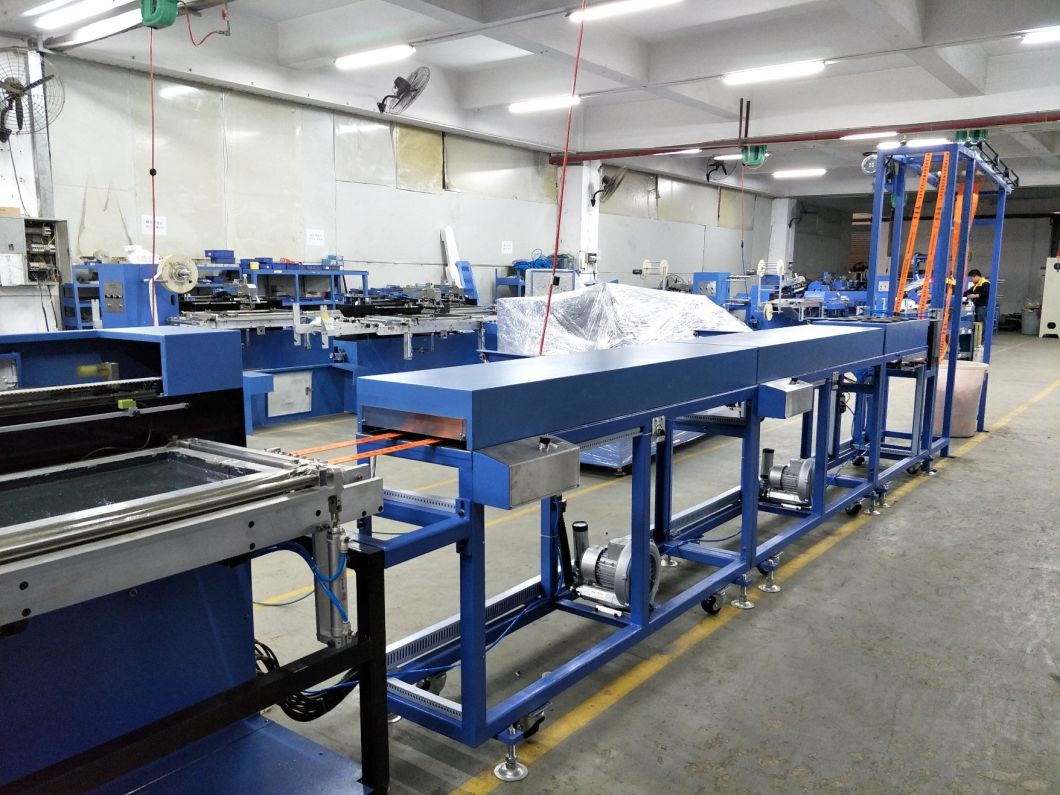

    Luggage Webbings Automatic Screen Printing Machine

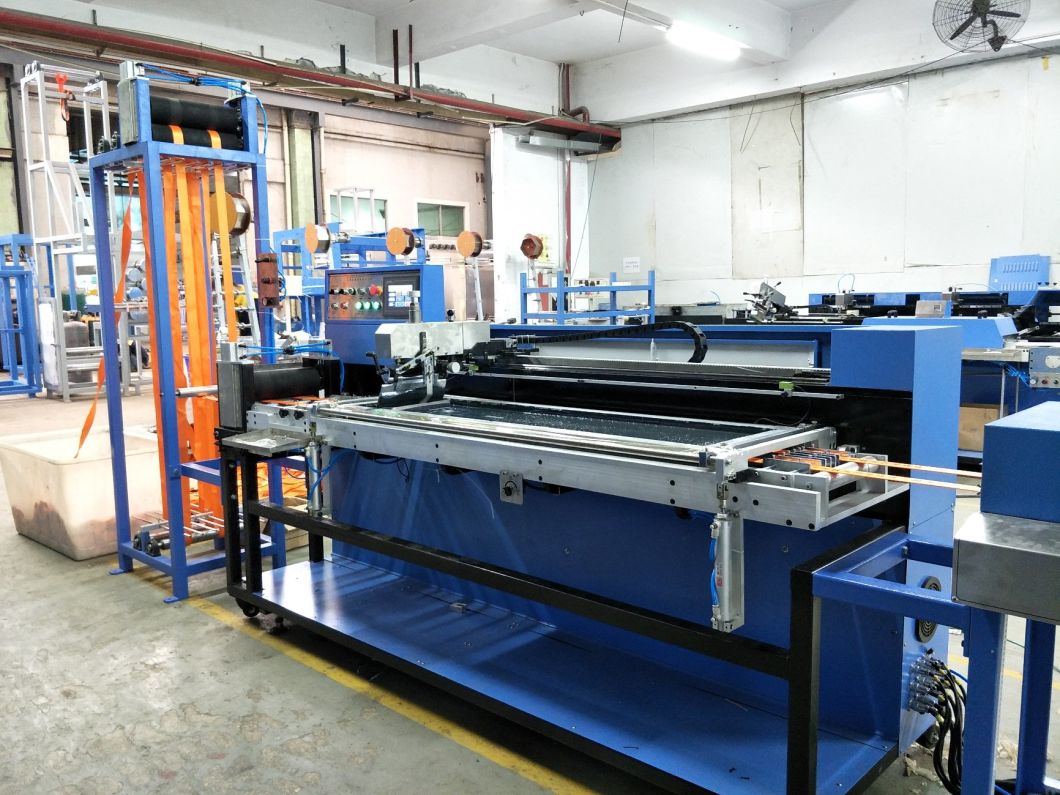

    Luggage Webbings Automatic Screen Printing Machine

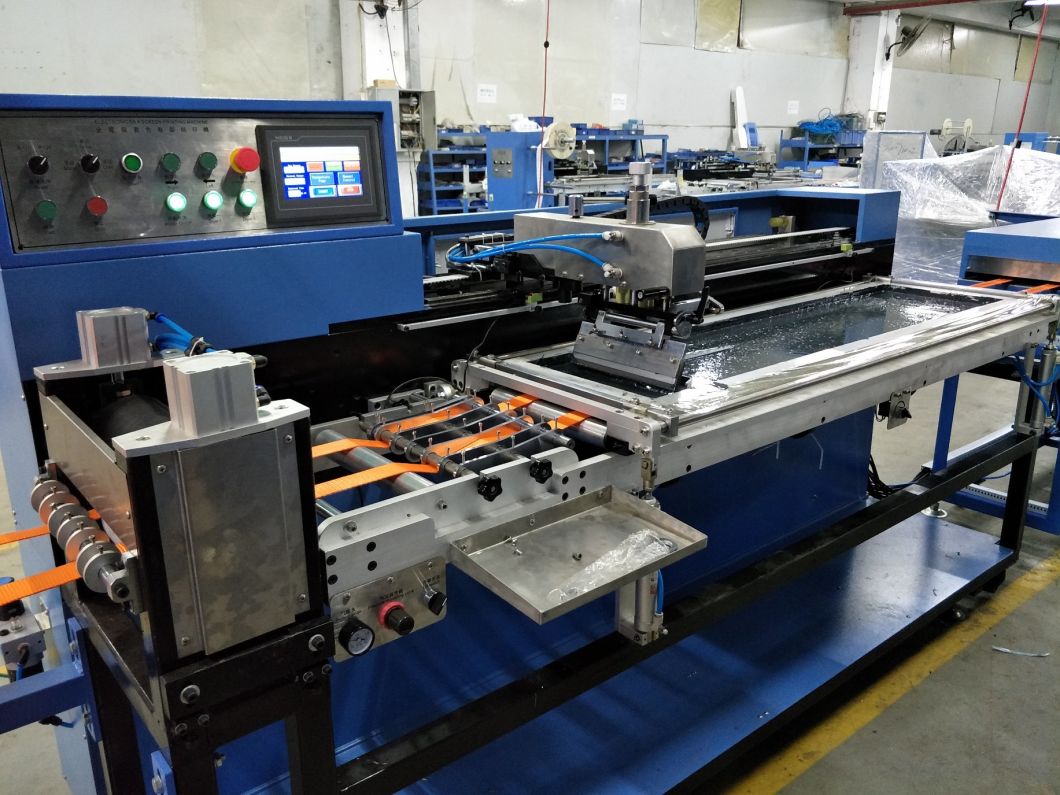

    Luggage Webbings Automatic Screen Printing Machine

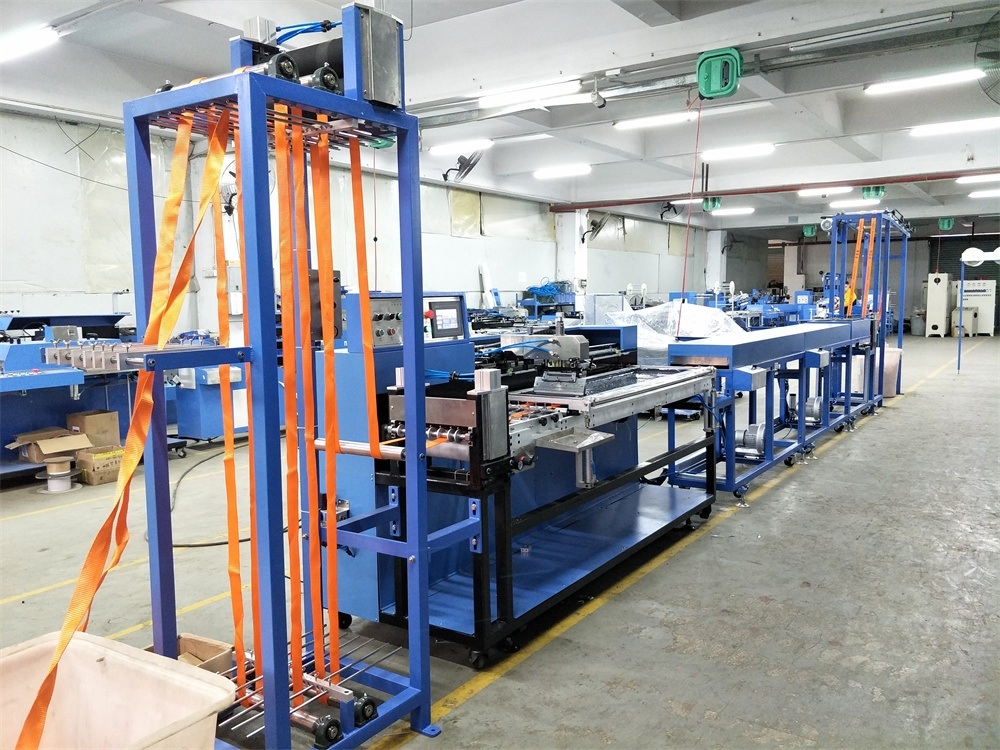

    Luggage Webbings Automatic Screen Printing Machine

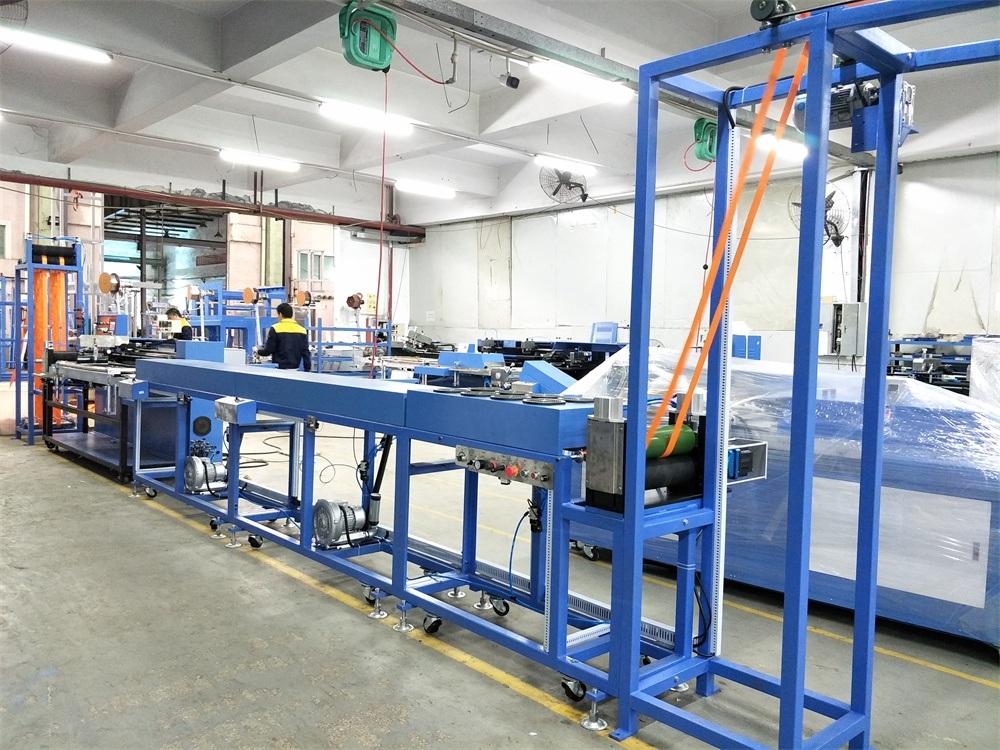

    Luggage Webbings Automatic Screen Printing Machine

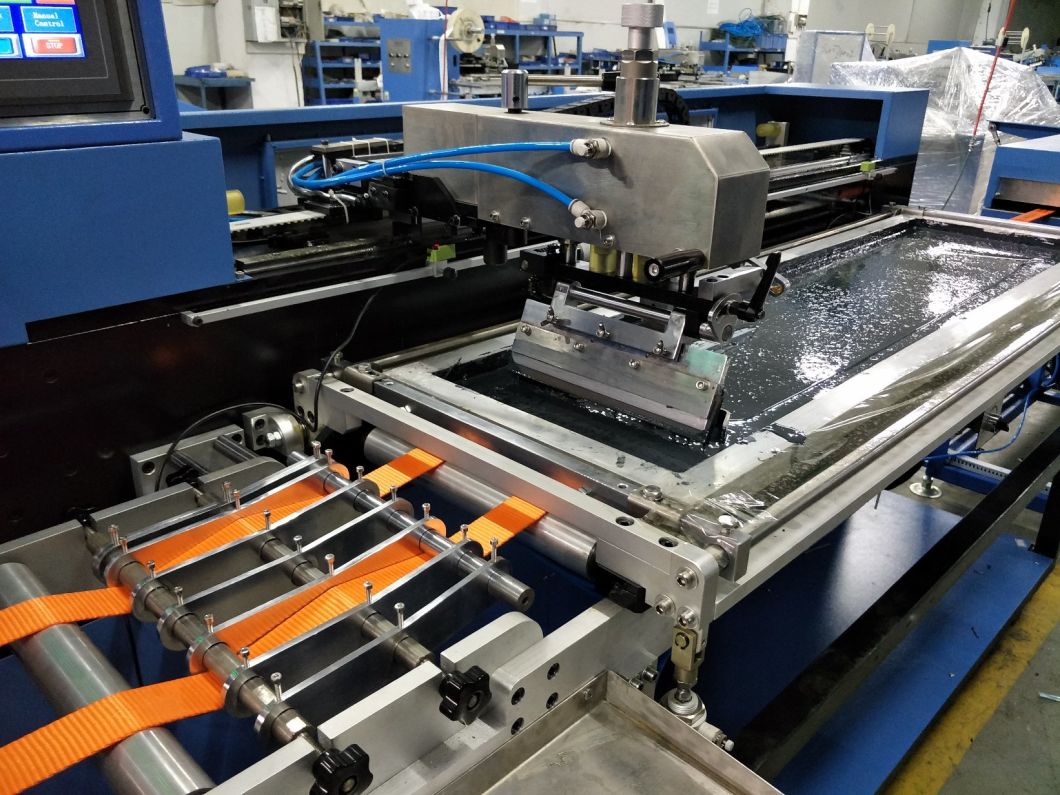

    Luggage Webbings Automatic Screen Printing Machine
