    Safety Webbings Continuous Dyeing&Finishing Machine Kw-800 Series

    Short Description:

    Basic Info Model NO.: KW-800-XB400 Warranty: 1 Year Customized: Customized Condition: New Brand Name: Kin Wah Place of Origin: Guangdong, China Driven T...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-800-XB400
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Brand Name: Kin Wah
    Place of Origin: Guangdong, China
    Driven Type: Electric
    Power: 48kw
    After-Sales Service Provided: Engineers Available to Service Oversea
    Max Working Temperature: 220°c
    Heating System: Electrical/LPG or Natural Gas/Steam
    Maximum Speed (M): 40 M/Min
    Dimension: 28000*1000*4000mm
    Weight: 15000kgs
    Trademark: KINWAH
    Transport Package: Full Container or Less Container with Plastic Film
    Specification: CE certification
    Origin: China
    HS Code: 84514000

    Product Description

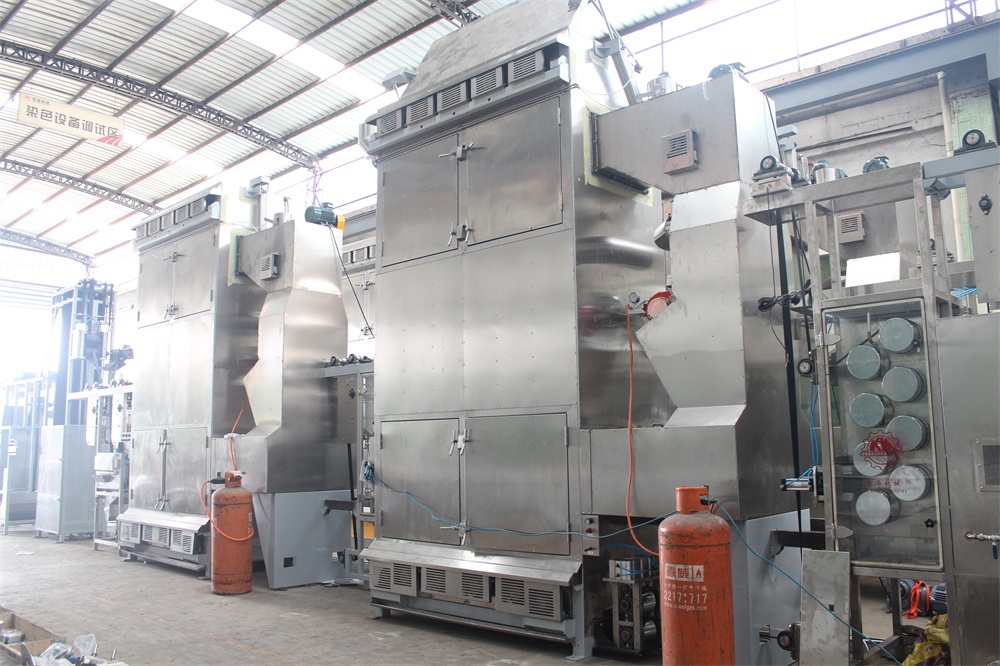

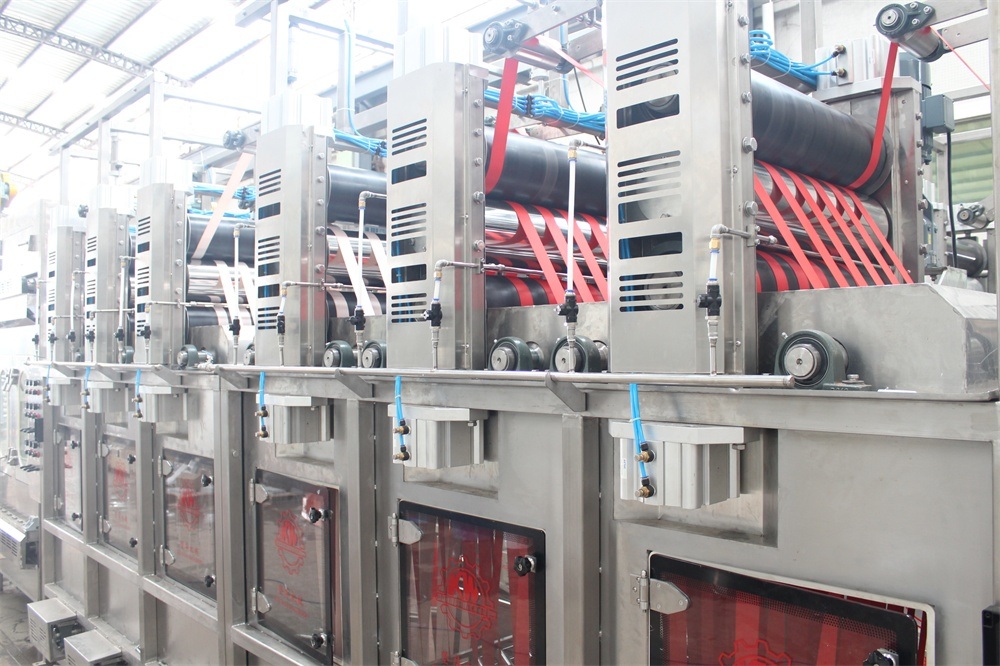

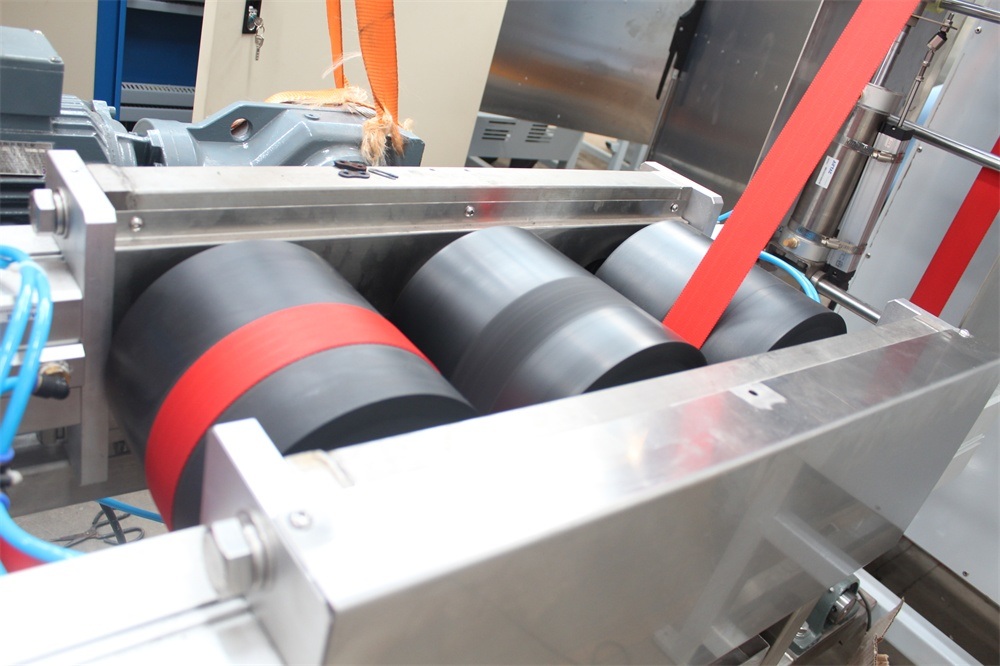

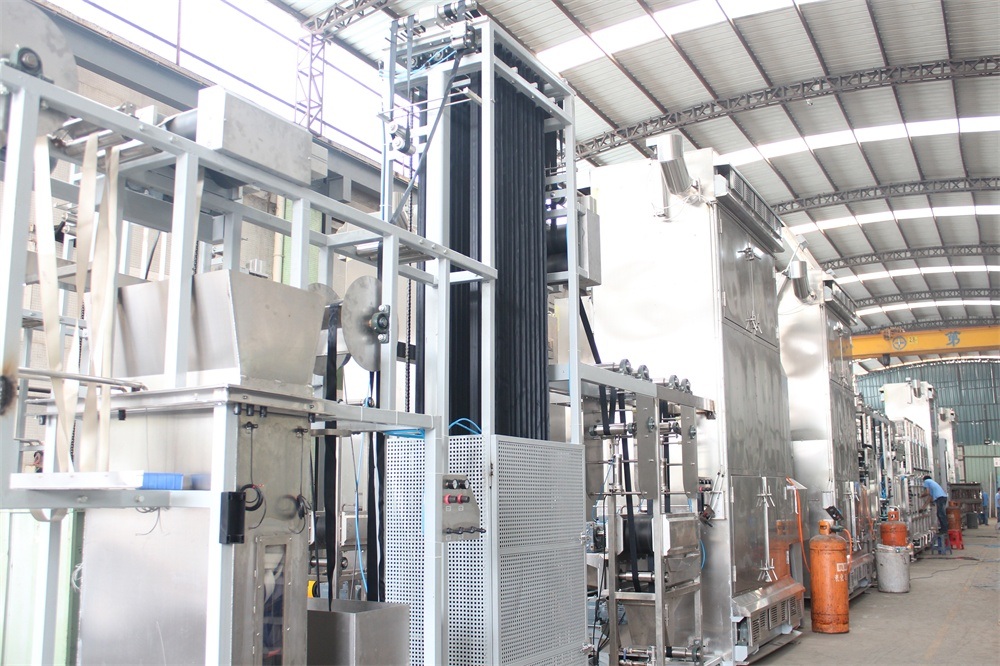

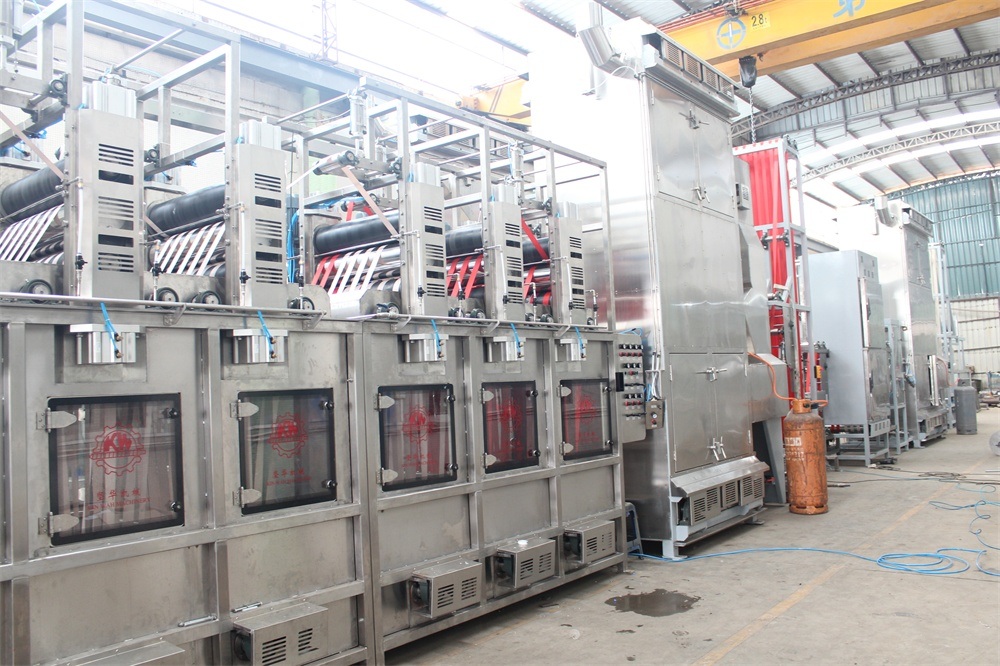

    Safety Webbings Continuous Dyeing&Finishing Machine KW-800 Series

    Item No: KW-800-AQS400
    Size:    28000*1000*4000mm
    This is high speed safety webbings/harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons etc.

    Features:
    1) High efficiency
    2) With washing tanks for good color fasteness
    3) Our patents.

    4)Application: The dyeing machine is especially used for
    harness webbings continuous dyeing machine,it also can dye luggage&Suitcase belts,safety webbings,lanyard ribbons satin ribbons with thickness below 1.5mm

    Heat System       electrical/LPG or natural gas/steam
    Working Width(mm)  200/400/600
    Thermofixation Chamber Tape Content(m) 45/60/60/80
    Maximun Speed(m)   15/30/40
    Maximun Number(m)  6/10/20
    Control system        Manual/Computer control(PLC&Touch screen)

    Processes: Feed in-dyeing groove-Infrared pre drying-thermofixation chambers-chemical groove-steam chamber-washing tanks-chemical groove-drying&finishing cylinders-cooling system-take off

    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE,  DUGOTEX SO ON.

    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.
