    Single Line Sling Webbing Continuous Dyeing and Finishing Machine

    Short Description:

    Basic Info Model NO.: KW-820-DZ600 Warranty: 1 Year Customized: Customized Condition: New Machine Type: Dyeing&Finishing Machine Power: 55kw Main P...


    Product Detail

    Product Tags

    Basic Info

    Model NO.: KW-820-DZ600
    Warranty: 1 Year
    Customized: Customized
    Condition: New
    Machine Type: Dyeing&Finishing Machine
    Power: 55kw
    Main Part Material: Stainless Steel, Iron, Carbon Steel etc
    Driven Type: Electirc
    Phase: 3 Phases
    Frequency: 50/60Hz
    Max Working Temperature: 220°c
    Heating System: Electrical/LPG or Natural Gas
    Max Speed: 20m/Min
    Drying Type: Hot Air
    Trademark: KINWAH
    Transport Package: Wooden Box for LCL Film for FCL
    Specification: CE certification
    Origin: China
    HS Code: 84514000

    Product Description

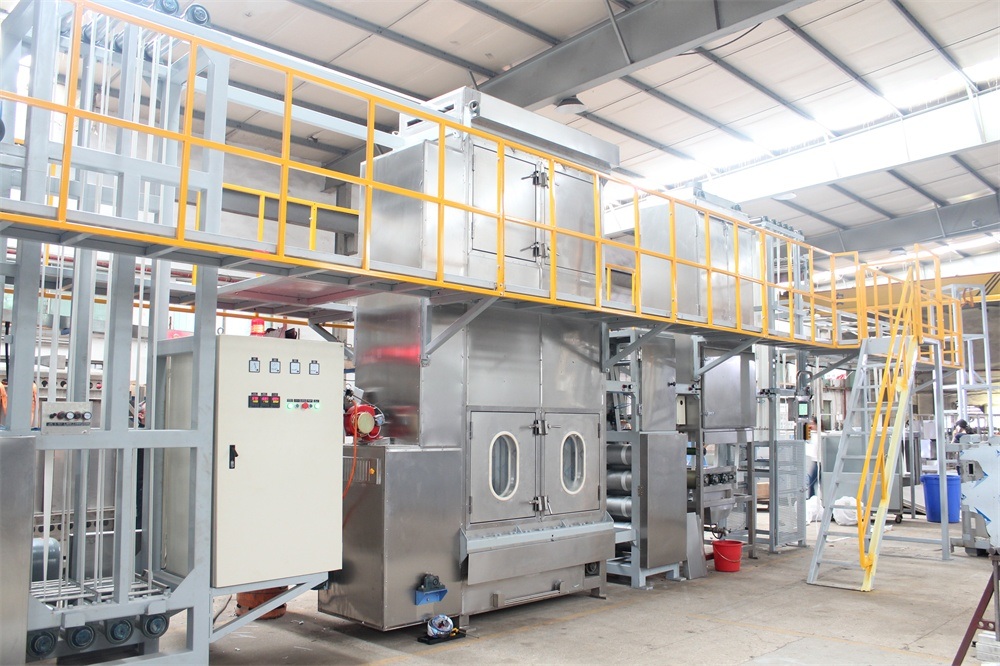

    Single Line Sling Webbing Continuous Dyeing and Finishing Machine


    Product Description

    Item No:KW-820-DZ600

    Size:    16800*1000*4000mm

    This is high speed Sling webbings/tie down straps/lash straps continuous dyeing&finishing machine



    Application: The dyeing machine is especially used for dyeing textile lift slings,tie down straps,lash straps and Heavy duty belts with elongation.

    Product capacity: 1-4 Pcs/time, 0-15meter/min/Pcs

    Can dye both 350mm width sling webbings,heavy duty webbings,tie down straps,lash straps,etc.

    With strong elongation function.

    For 300mm width webbings:1 meter go into dyeing machine,1.02meter come out after dyed.

    For 50mm width webbings:1 meter go into dyeing machine,1.06meter come out after dyed.



    Heat System       electrical/LPG or natural gas

    Working Width(mm)        600

    Thermofixation Chamber Tape Content(m) 60

    Maximun Speed(m)   20

    Maximun Number(m)   8

    Control system       Computer control



    Processes: Feed in-dyeing groove-Infrared pre drying-hold mangle-

    thermofixation-cooling system-pull mangle-take off





    Company Information



    KIN WAH Mechanical Industrial Co., Ltd. established in the year of 2005, has been dedicated in researching and developing KIN WAH dyeing and finishing equipment series for narrow fabric for more than twenty years. KIN WAH dyeing and finishing equipment series include High temperature Continuous Dyeing & finishing Machines, Normal temperature Continuous Dyeing &finishing Machines, High & Normal Temperature Continuous Dyeing & finishing Machines (same machine), Finishing & Starching Machine, Calender Machine for labels, packaging machines, rolling machines and relative narrow fabric Complete Plant programming. They are widely used for all kinds of narrow fabric made from polyester, nylon and cotton material, such as automobile seat belts (one end & two-ends), heavy duty tapes, textile lift slings, safety belts, luggage & bag belts, satin ribbons, ornament ribbons, labels, elastic tapes, organza tapes, curtain tapes, and cotton tapes.

    Our Services



    Customers: SATIN RIBBONS, ELASTIC TAPES continuous dyieng and finishing machines: MONTRIMS,ITL,GLOBAL LABEL, KINGS, LEADER,XINLIN,SANDING GROUP, BRAITEX, TELALA, WARRANTY, APEX, N R GROUP, SHORE TO SHORE, KNITTING CONCERN, STRETCHLINE, DUGOTEX SO ON.



    Packaging & Shipping

    Covered by plastic membrane within full container or less container (woodencase)
